Acu-Rite Solutions: Digital Readout 1197252-03 (DRO 103)
Acu-Rite Solutions: DRO 103 Digital Readout 1197252-03

Price : $1,180.00


Availability: 1 business day
Order #: 1197252-03
Qty:

Description Specifications and Drawings

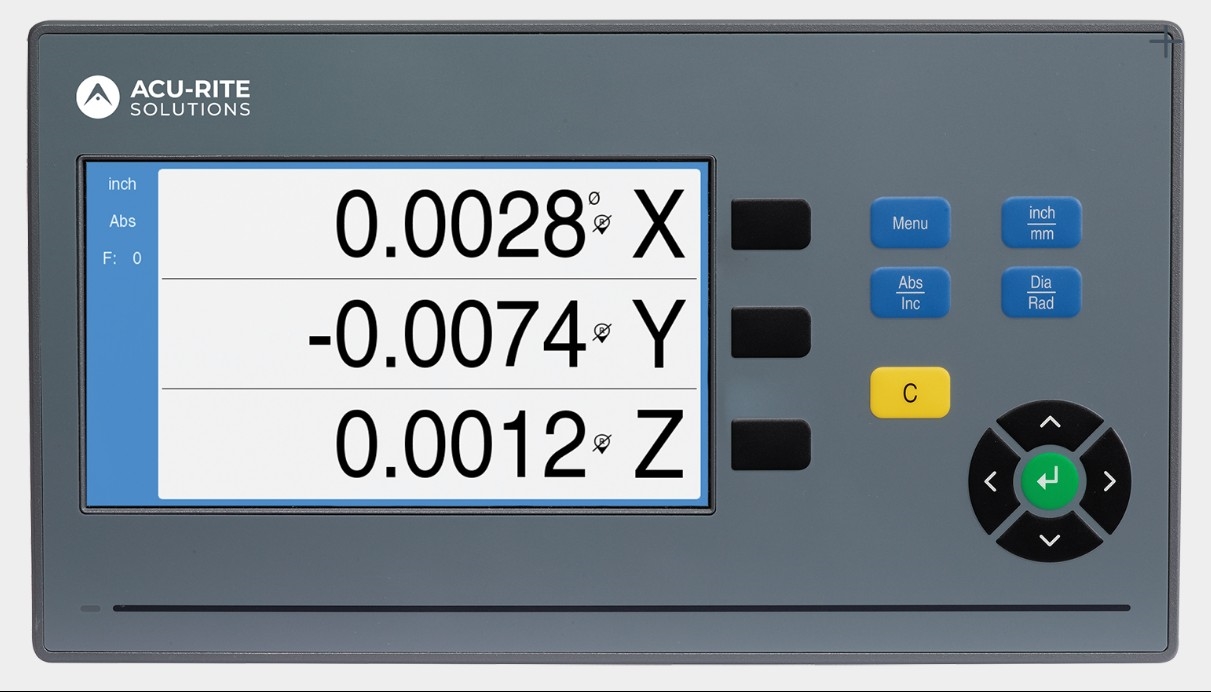

Acu-Rite Solutions: DRO 103 Digital Readout 1197252-03

Get started with digital accuracy using the 3-axis DRO103—an entry-level DRO delivering position feedback to reduce scrap and improve quality.

Designed for manual machine tools, this entry-level DRO delivers unmatched reliability and ease of use at an affordable price. Featuring a bright, easy-to-read display, intuitive controls, and essential functions for milling, turning, and grinding, the DRO103 ensures every cut is precise and efficient.

Whether you’re a professional machinist or a workshop enthusiast, the DRO103 is your go-to solution for streamlined operations and superior results. Built tough for demanding environments, it’s the perfect blend of simplicity, durability, and performance.

Key features include:

  • 3 axes
  • 7″ color display
  • Shoptough, rugged die-cast construction
  • USB 2.0
  • Dynamic Zoom
  • Position-Trac™ restores workpiece zero
  • Absolute and incremental display
  • Graphical and conversational dialog guidance
  • And more!

Specifications of the Acu-Rite DRO 103

DRO 103
Digital readout for manual operated machine tools
for turning, milling and general applications
Encoder interface:
Number of encoder inputs: 3x
Encoder connection:       Built-in D-sub connector
                          without housing, 2-row,
                          female, 9-pin
Display:                  7-inch, color, wide
                          screen (15:9),
                          resolution 800 x 480
User interface:           Membrane keyboard
Data interface:           USB type C
Power supply:             AC 100 V ... 240 V (±10
                          %), 50 Hz ... 60 Hz (±5
                          %)
Fastening type:           VESA MIS-D, 100
Special characteristics,
digital readouts:         US-power cord
Company identification:   Acu-Rite
/
