High performance HMIs for all automation needs

X2 pro includes a wide range of high performance industrial panels from ultra-compact 4-inch to 21-inch panels designed for demanding applications. All with the high performance of powerful ARM Cortex-A9 processors, the latest screen technology and a wide range of connectivity options to cover all your automation needs.

Powerful ARM Cortex-A9 processor

Powerful single or dual core ARM Cortex-A9 processor delivers fast screen changes and program execution in demanding applications.

Robust aluminum housing

Robust aluminum housing with IP65, NEMA 4X/12 and UL Type 4X/12 front. Resistant to direct rain, snow or wash-downs, dirt, grime and dust.

Wide operating temperature

The wide -10°C to +60°C operating temperature range satisfies the demands of most industries.

UL, CE, FCC and KCC certificates

The entire X2 range offers a strong standard certification with UL, CE, FCC and KCC certificates.

Marine certifications

The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations.

iX software – why you’ll love our hardware

The iX software gives you smart communication tools. It combines top-class vector graphics and easy-to-use functions that provide reliable operation, and almost limitless connectivity to your other equipment.

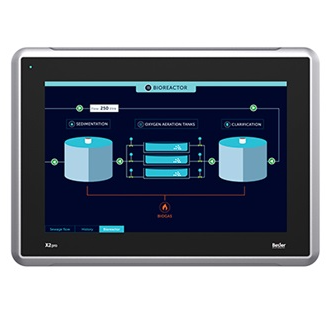

X2 pro 12

• 12'' HMI with iX runtime

• 1280 × 800 pixel (16:10)

• TFT-LCD touch screen

• 1.5 GB application memory

• Ethernet 2x100 Mbit

• -10°C to +60°C operating temperature

• CE, FCC, KCC, UL approvals

• DNV, KR, GL, LR, ABS, CCS marine approvals
