ATI: Tool Changers QC-20
ATI: Tool Changers QC-20

Alternate View

Price with Selected Options: $0.00


Availability: Usually Ships in 6 to 8 Weeks
Order #: QC-20


Tool Changers Master:

Tool Changers Tool:

Qty:

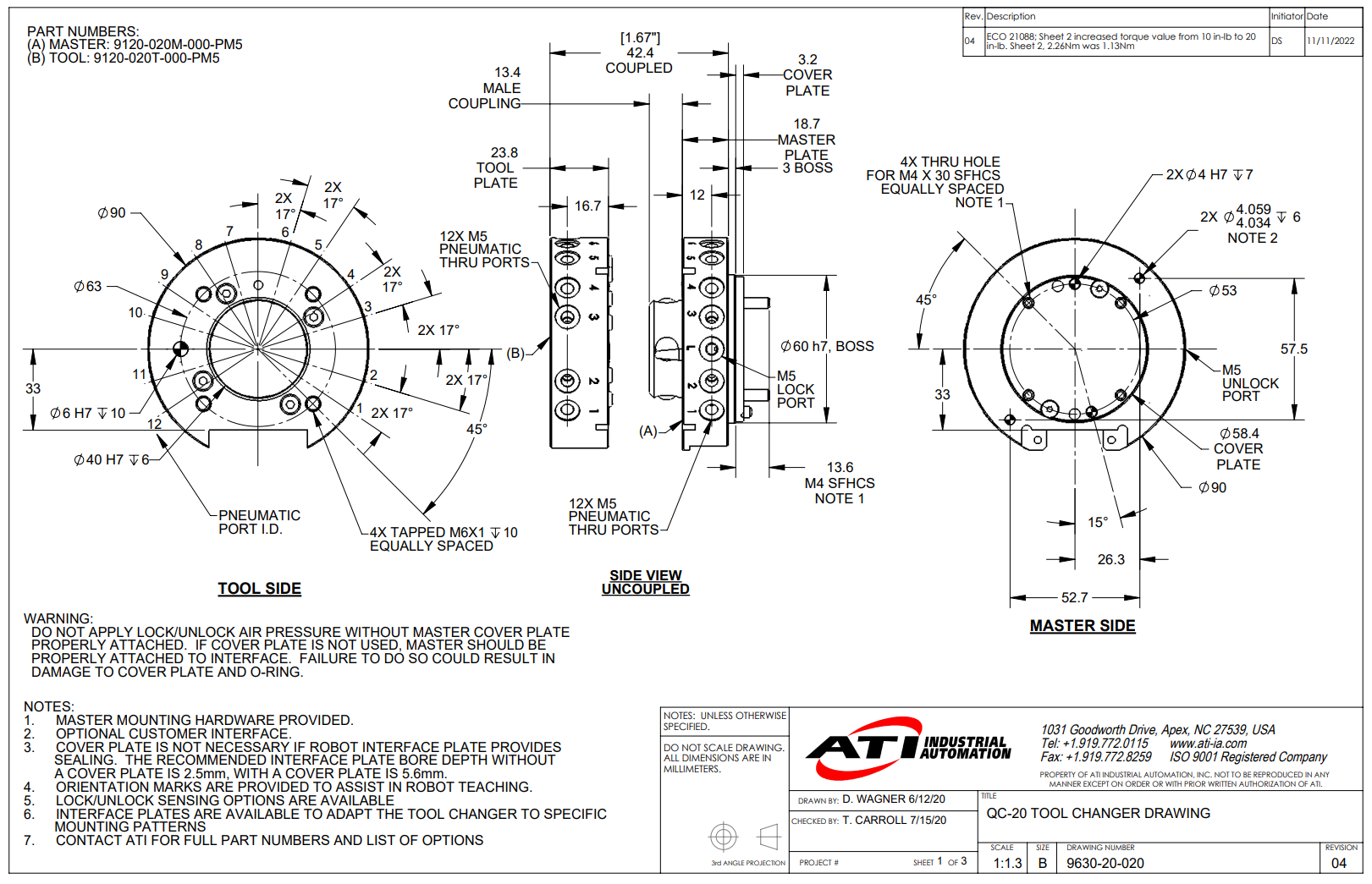

Description Specifications and Drawings


ATI: Tool Changers QC-20

Product Advantages
  • Large number of pass-through air ports.
  • No-Touch locking technology allows up to 0.08 inch (2.0 mm) plate separation when locking.
  • Patented Fail-Safe locking mechanism design results in low force acting on the piston.
  • Large piston diameter and outward ball travel increase moment capacity.
  • All locking parts made of Rc58 stainless steel.
  • Long-life bushings for pneumatic pass-through.
Suggested Payload Limit: 55 lb
Locking Force @ 80 psi (5.5 bar): 520 lb
Static Moment Capacity (X & Y): 500 lbf-in
Static Moment Capacity (Z): 310 lbf-in
Positional Repeatability - (X, Y, & Z): 0.0006 in
Weight - when coupled: 1.88 lb
Master Weight: 1.18 lb
Tool Weight: 0.7 lb
Maximum distance between Master & Tool plate before locking at 87 psi (6 bar): 0.08 in
Pneumatic Pass-through Ports (qty) Size: (12) M5 or #10-32
Models:

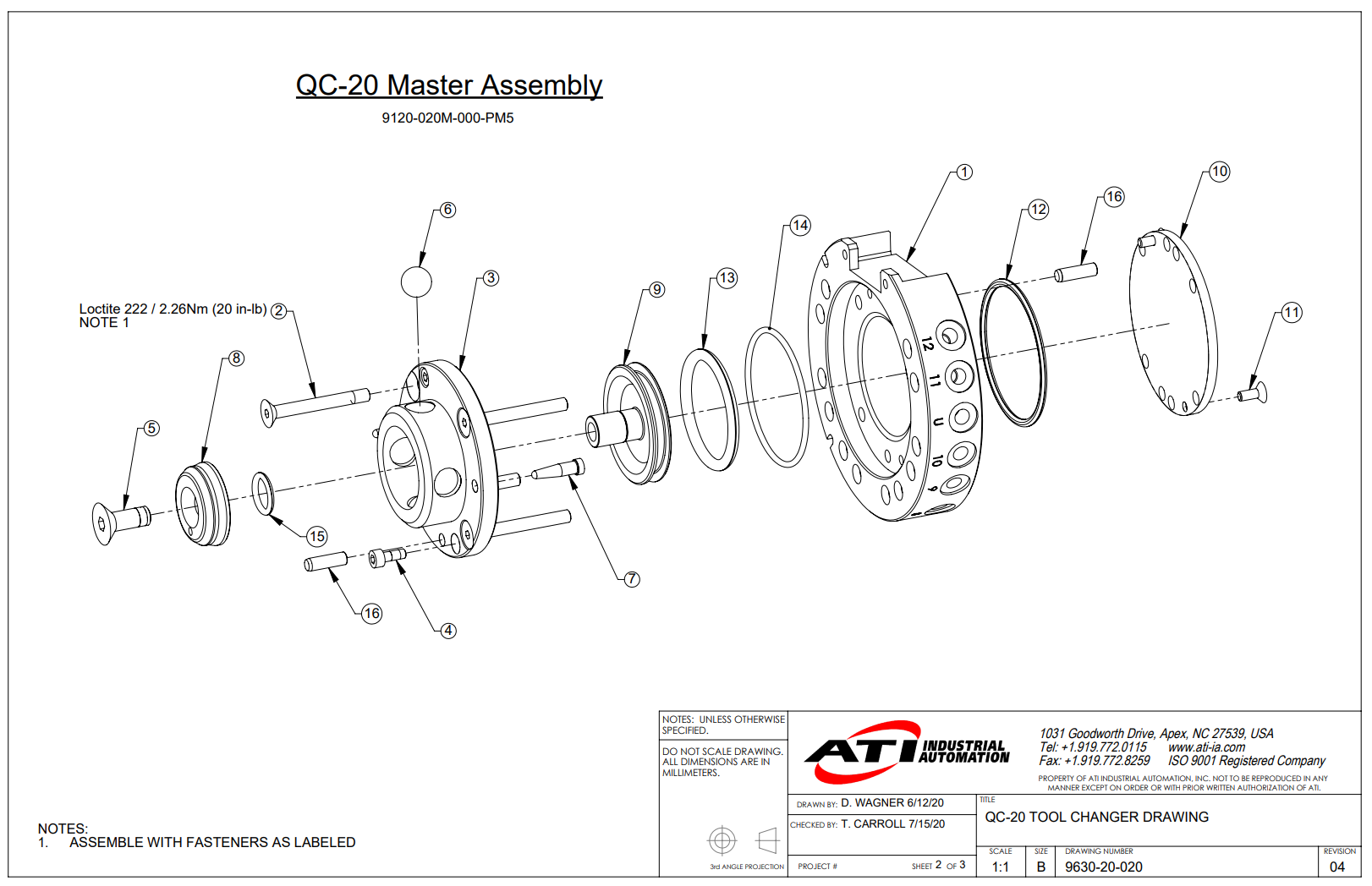

9120-020M-000-PM5: QC-20 Master, 12 air ports, no options;

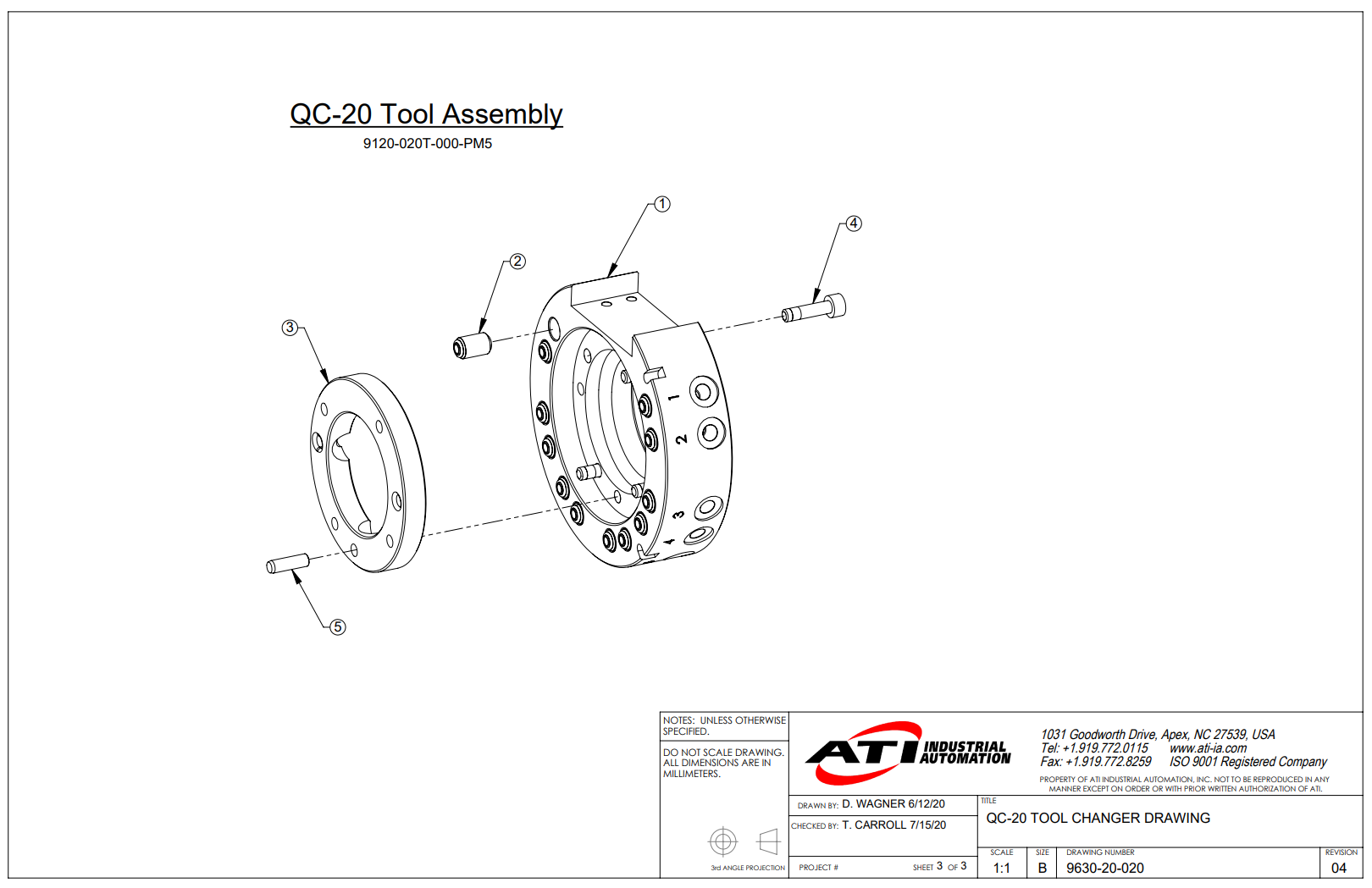

9120-020T-000-PM5: QC-20 Tool, 12 air ports, no options.
