GLENTEK : LINEAR BRUSH SERVO DRIVE (MODULE) SMA5005-X-XXX-1
Glentek Linear Brush Servo Drive SMA5005-X-XXX-1



Alternate View


Request for quantity, price, delivery and model information

Linear Brush Servo Drives Provides high bandwidth, low noise, and zero crossover distortion, Output current is 5 amps continuous, 15 amps peak. Operating voltages range from either 24 to 75 VDC.



Availability: Lead time 10 - 12 weeks
Order #: SMA5005-X-XXX-1


Motor Type*:


Reset*:


Inhibit, +/- Limits Configuration*:


Signal Input, Mode, Pull Up Voltage*:


.

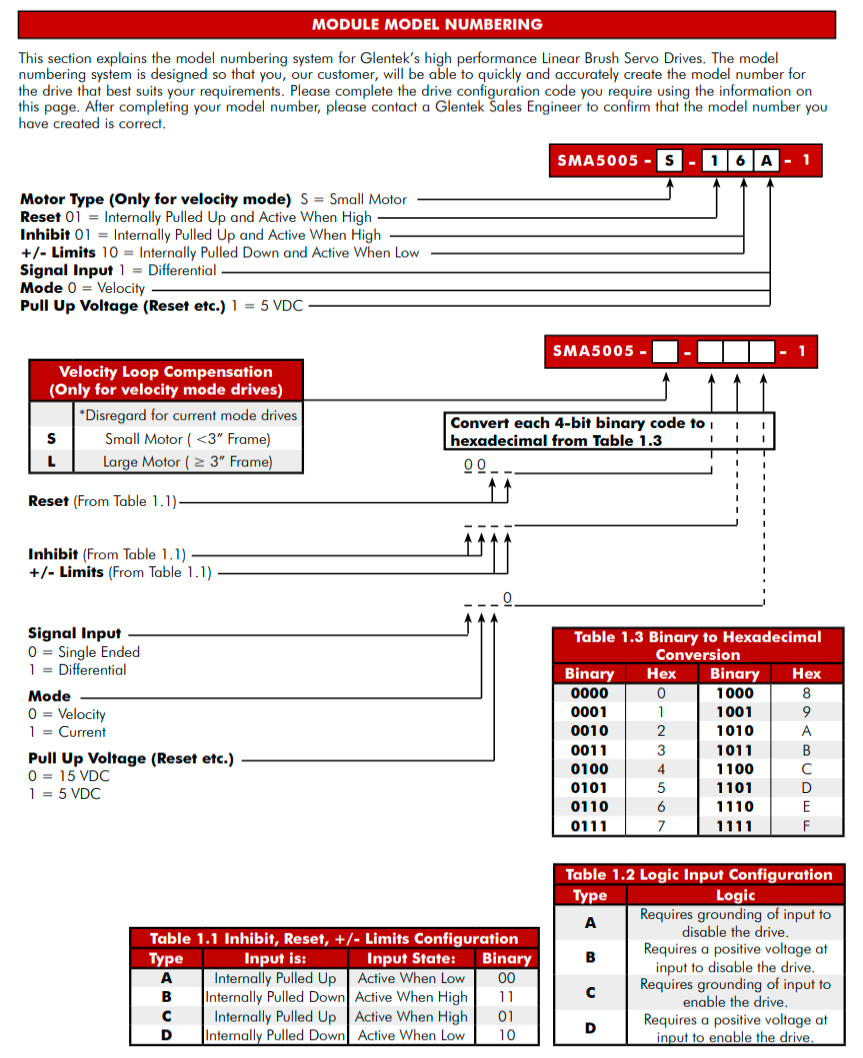

Description Ordering Information Specifications and Drawings


GLENTEK LINEAR BRUSH SERIES SERVO DRIVES (MODULE) SMA5005-X-XXX-1
Glentek offers the latest in high performance Linear Brush Servo Drives for the control of both DC brush servo motors and voice coil motors. With extensive utilization of surface mount technology and special heat transfer techniques, Glentek’s Linear Brush Servo Drives offer one of the world’s most powerful products for a given form factor. All models can operate in current (torque) or velocity (RPM) mode and accept a +/-10 VDC analog input as a command reference. All models can close the velocity loop via feedback of a DC tachometer. Output current is 5 amps continuous, 15 amps peak. Operating voltages range from either 24 to 75 VDC for the module and 17 to 53 VAC for the multi-axis configuration. These drives are best suited for low inertia applications that require high bandwidth, low noise, and zero crossover distortion and for motors or voice coils that require high curent loop bandwidths.

This package consists of a drive module, without a DC bus power supply. This package offers the smallest mechanical form factor and is a very cost effective solution for single and multi-axis applications where the customer provides DC bus power supply and forced-air cooling.

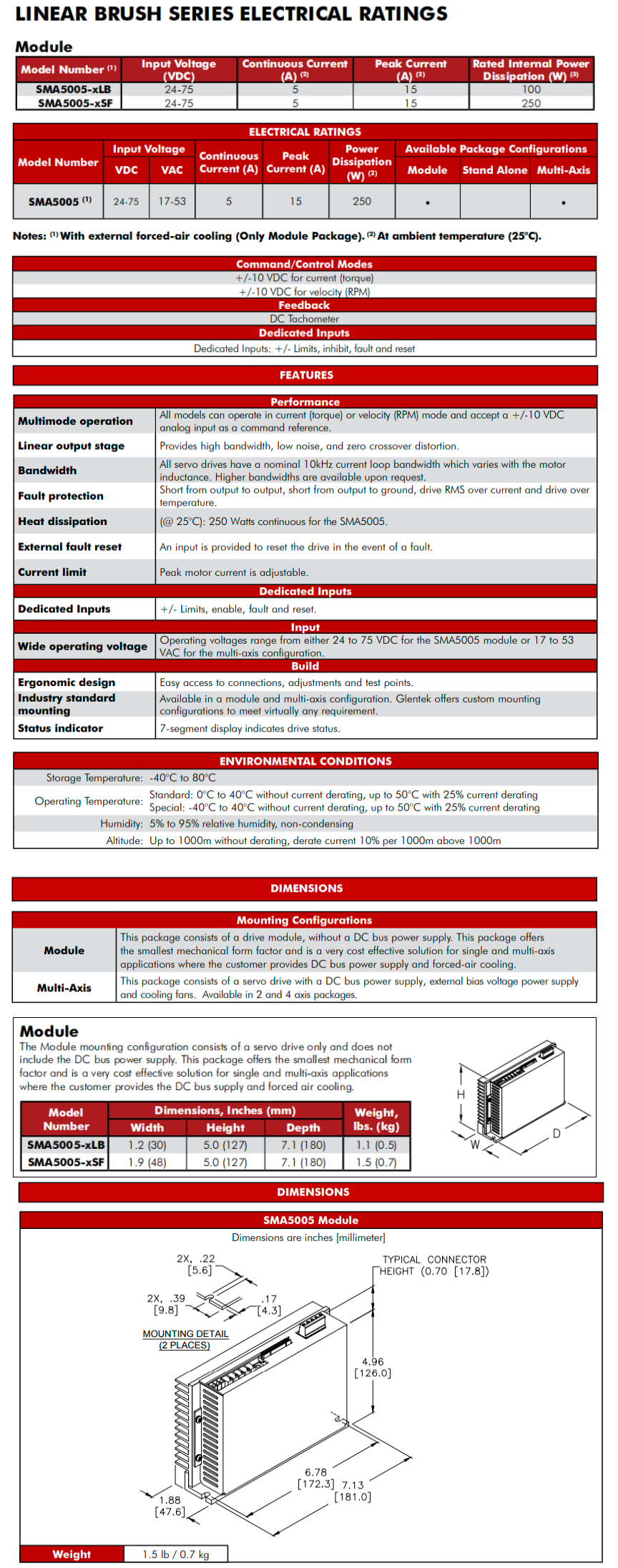

Specifications:

Series

Linear Brush

Package Configuration

Module

Input Voltage

24-70 VDC

Continuous Current

5 A

Drive Compliance

CE, RoHS

Modes of Control

+/- 10 VDC for Current or Velocity

Motor Types

Brush Servo (Rotary), Voice Coil

Feedback Devices

Tachometer

Features:

Linear output stage

Provides high bandwidth, low noise, and zero crossover distortion.

Bandwidth

Standard servo drives have a nominal 10 kHz current loop bandwidth which varies with the motor inductance. High performance SMA5005-4 models (current mode only) have a nominal 15 kHz current loop bandwidth. Note: high performance models have fixed digital inputs

Multimode operation

All models can operate in current (torque) or velocity (RPM) mode and accept a +/-10 VDC,analog input as a command reference. Note: SMA5005-4 is current mode only.

Feedback

Models can close the velocity loop via a DC tachometer.

Wide operating voltage

Operating voltage ranges are 24-75 VDC for the SMA5005 Module configuration and 17-39 VAC (from transformer with center tap) for the SMA5015 Stand Alone configuration.

Internal heat dissipation

(@ 25Deg C): 100 Watts continuous for SMA5005-xLB, 250 Watts continuous for the SMA5005-xSF, and 300 Watts continuous for the SMA5015.

Ergonomic design

Easy access to connections, adjustments, and test points.

SMT Construction

Provides ultra compact size, cost competitive package, and high reliability.

Industry standard mounting

Available in a Module, Multi-Axis, and Stand Alone configuration. Optional custom mounting configurations are available to meet virtually any requirement.

Fault protection

Short from output to output, short from output to ground, drive RMS over current, drive under/over voltage (SMA5015 only), and drive over temperature.

Status indicator

7-segment LED display (SMA5015) or LEDs (5005) indicates drive status.

External fault reset

An input is provided to reset the drive in the event of a fault.

Manual fault reset

A push button reset is available on the SMA5015.

Current limit

Peak motor current is adjustable.

Compliance

All servo drives are CE marked in accordance with EN60204-1 (IEC204-1), and RoHS compliant
