FAGOR: CNC Systems for Other applications - CNC 8060elite GL
FAGOR: CNC Systems for Other applications - CNC-8060elite-GL



Request for quantity, price, delivery and model information


Fully customizable solution focused on all types of alternative sectors to traditional machine tools such as: stone/wood cutting, grinding, bending, punching, saws, bending machines, lasers… It can control up to 10 axes + spindles and 1 execution channel, for simple applications.




Availability: Subject to availability

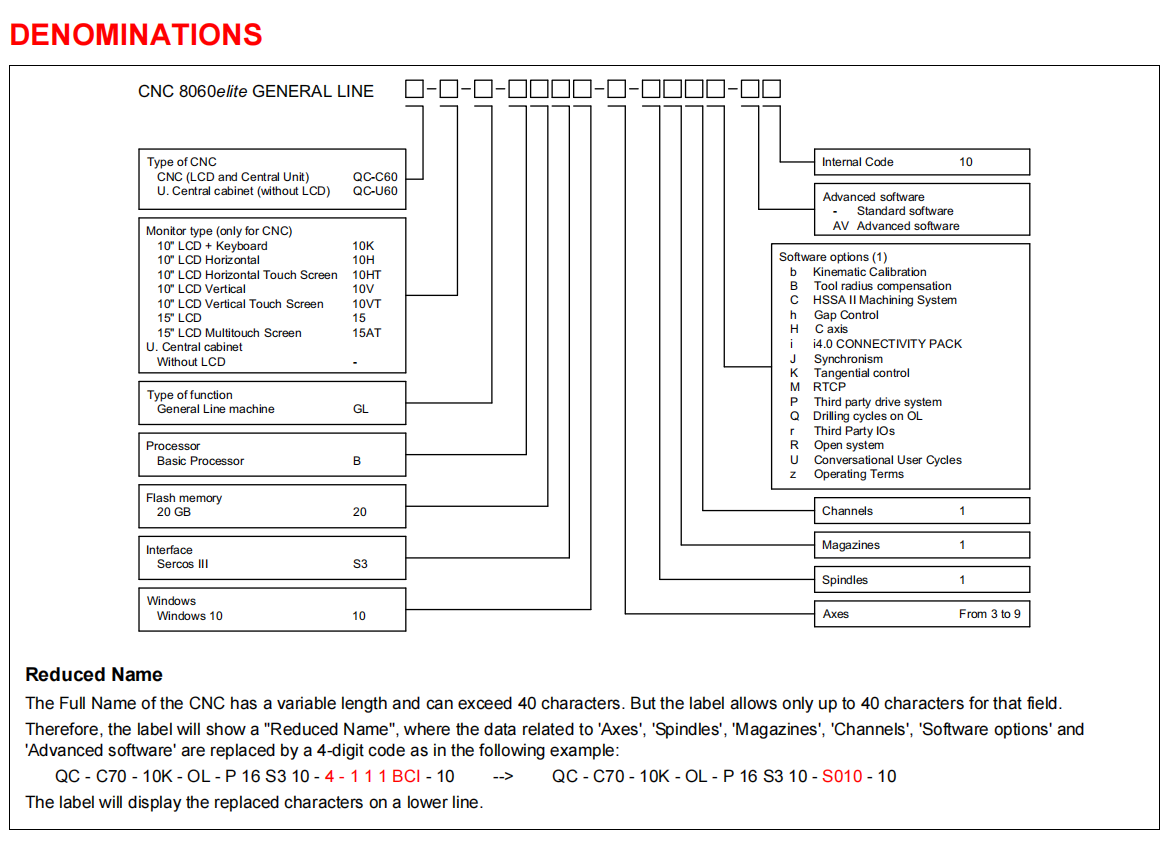

Order #: CNC-8060ELITE-GL
.

Description Ordering Information Specifications and Drawings


Fagor CNC Systems for Other applications - CNC-8060elite-GL

Fagor CNC systems are prepared for the complete digitalization of the machines On which they are installed. Fagor CNCs include the most advanced technologies, Features, and protocols that facilitate interoperability with other production plants' Systems

Fully customizable solution adaptable to any machine: grinders, saws, folding machines, shot blasting machines, polishing machines, carving machines, sheet metal forming machines, machines for wood, marble, stone and glass working glass, machines for the food industry, show business, medicine, etc.

It can control up to 10 axes + spindles and 1 channel of execution, for simple applications.

Total flexibility

Cabinet (modular) or integrated solutions for easy installation.

Ability to combine proprietary and third-party drives and motors.

Fully customizable HMI

Possibility of integrating the manufacturer's own logo and cycles.

Open system

Possibility of external software installation.

EtherCAT connectivity and analog I/O

Easy integration of all types of third-party devices such as interactive monitors, cameras, etc. interactive monitors, cameras, etc.

Advanced features

HSSA II (High Speed Surface Accuracy) for excellent high speed finishing.

Nanometer resolution.

Multiple programming options and import of DXF files.
PWM control, RTCP, synchronisms and cams, etc.

CNC Control Navigation - Fagor CNC 8060 / 8065 / 8070
