Siemens: SIMATIC S7-1200, Analog input, SM 1231 TC, 8 AI thermocouples (6ES7231-5QF32-0XB0)
Siemens: SIMATIC S7-1200, Analog input, SM 1231 TC, 8 AI thermocouples (6ES7231-5QF32-0XB0)




SIMATIC Analog Input Module, 8 Inputs, 15 bit Resolution, 0.1% Accuracy, 24 VDC, 40 mA, -20 to 60 deg C,
Price : $953.07

Quantity in Stock:8

Availability: Usually Ships in 3 to 5 Business Days
Order #: 6ES7231-5QF32-0XB0
Qty:

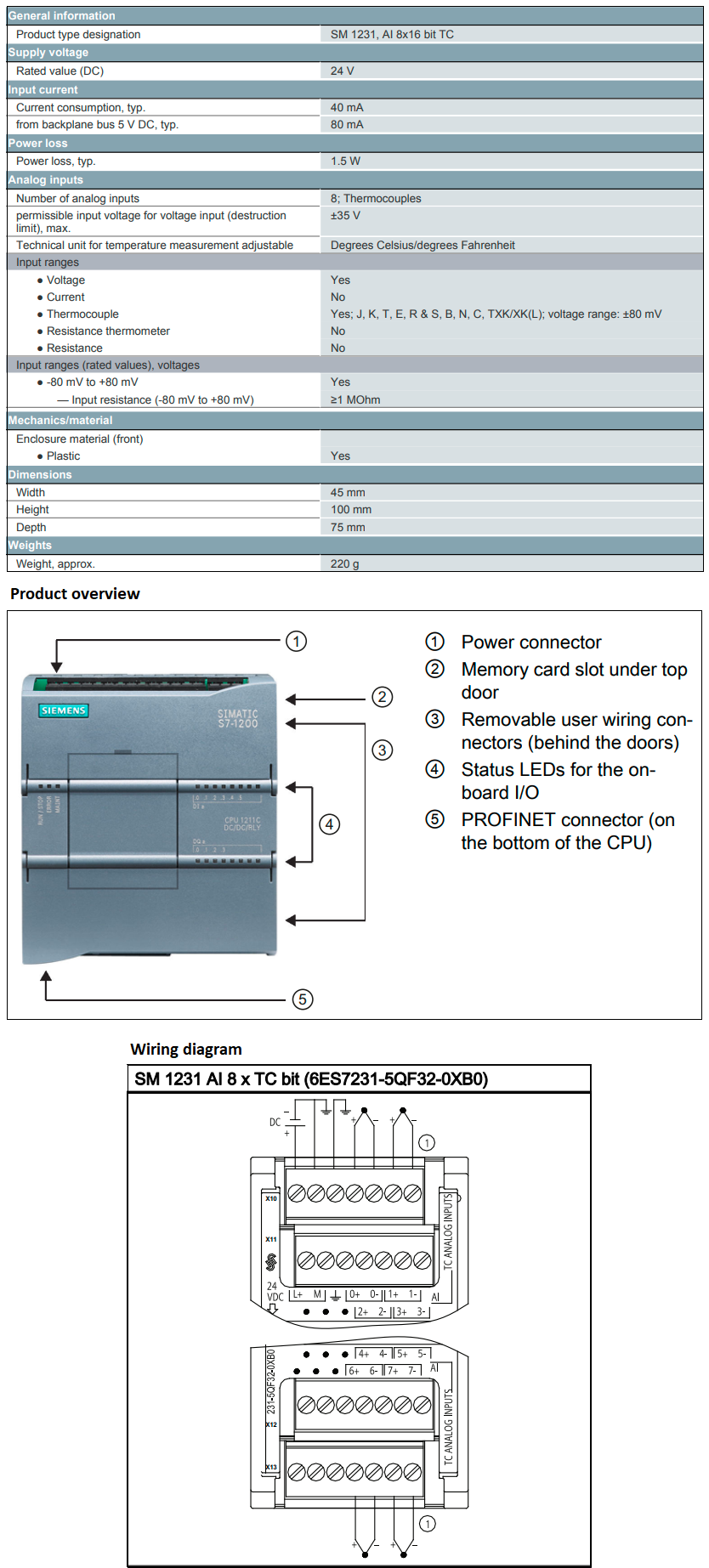

Description Specifications and Drawings


SIMATIC S7-1200, Analog input, SM 1231 TC, 8 AI thermocouples (6ES7231-5QF32-0XB0)

SIMATIC S7-1200, analog input module, SM 1231 TC, 8 AI thermocouples Basic Controller SIMATIC S7-1200, flexible thanks to various communication possibilities. Using the signal modules it is possible to adapt the configuration of your SIMATIC S7-1200 (except CPU 1211C) to your particular requirements. To achieve this, the range has digital and analogue input and output modules and mixed composition, also in a safety variant. This granular expandability saves cabinet space and optimizes your hardware costs.

General Specifications:

Product type designation

SM 1231, AI 8x16 bit TC

Rated value (DC)

24 V

Current consumption, typ

40 mA

from backplane bus 5 V DC, max.

80 mA

Power loss, typ.

1.5 W

Number of analog inputs

8; Thermocouples

permissible input voltage for voltage input max

±35 V

IP degree of protection

IP20

required front connector

Yes

Enclosure material (front) ● Plastic

Yes

Weight, approx

220 g
