Siemens: SIMATIC S7-1200, Analog input, SB 1231RTD (6ES7231-5PA30-0XB0)
Siemens: SIMATIC S7-1200, Analog input, SB 1231RTD (6ES7231-5PA30-0XB0)




SIMATIC S7-1200, Input Module, 1 – Analog, 24VDC, DIN Rail, Screw Terminal, -20°C ~ 60°C
Price : $212.34

Quantity in Stock:100

Availability: Usually Ships in 3 to 5 Business Days
Order #: 6ES7231-5PA30-0XB0
Qty:

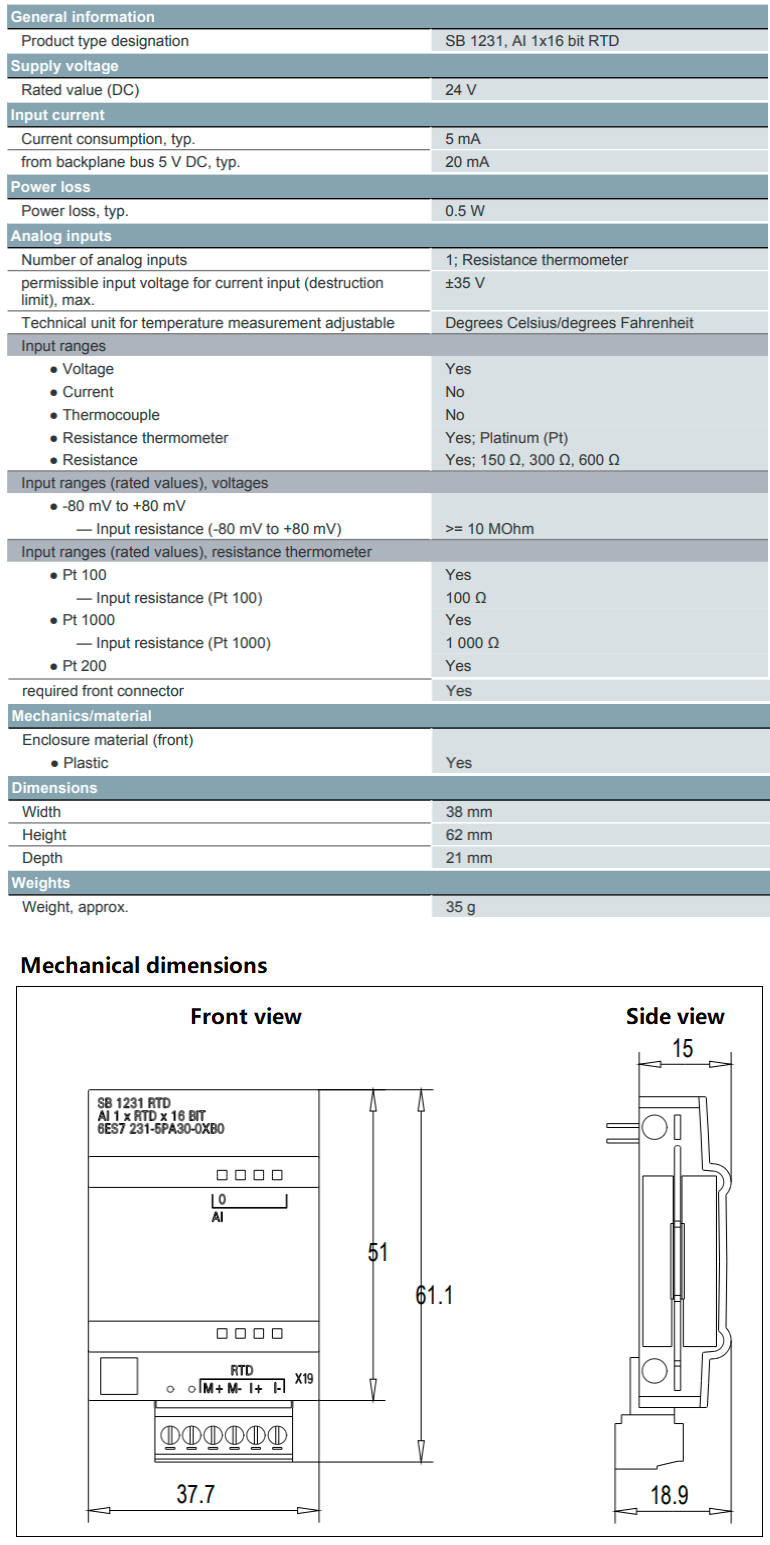

Description Specifications and Drawings


SIMATIC S7-1200, Analog input, SB 1231RTD (6ES7231-5PA30-0XB0)
S7-1200 - single board expansion module. A range of siemens simatic Plugs directly into cpu, no changes to CPU dimensions. Fixed wiring via removable terminal connections. Simple adjustment in user application.

SIMATIC S7-1200, Analog input, SB 1231RTD, 1 AI RTD, Pt100 and Pt1000,1 – Analog, 24VDC, DIN Rail, Screw Terminal, -20°C ~ 60°C.

SIMATIC PLC Analog I/O Module, 1 Input, 15 bit Resolution, 24 VDC, 5 mA, 0.5 W Power, -20 to 60 deg C, Plastic, 62 mm H x 38 mm W x 21 mm D Dimensions

Features:

IP20 deg of protection

85 dB at 10/50/60/400 Hz interference voltage suppression for interference frequency

20 mA from backplane bus 5 VDC, 5 mA current consumption
General specifications:

Type

Input Module

For Use With/Related Products

SIMATIC S7-1200

Number of Inputs and Type

1 - Analog

Number of Outputs and Type

-

Voltage - Supply

24VDC

Mounting Type

DIN Rail

Termination Style

Screw Terminal

Features

-

Operating Temperature

-20°C ~ 60°C
