Panasonic: I/O Expansion Unit 16IN/16OUT (AFP0RE32T)
Panasonic: Expansion Unit 16IN/16OUT (AFP0RE32T)




PANASONIC FP0R-E32T expansion 16IN/16OUT, (p+n) switching/transistor NPN, 4x10-pin socket board

Price : $264.44

Quantity in Stock:61

Availability: Usually Ships in 3 to 5 Business Days
Order #: AFP0RE32T
.

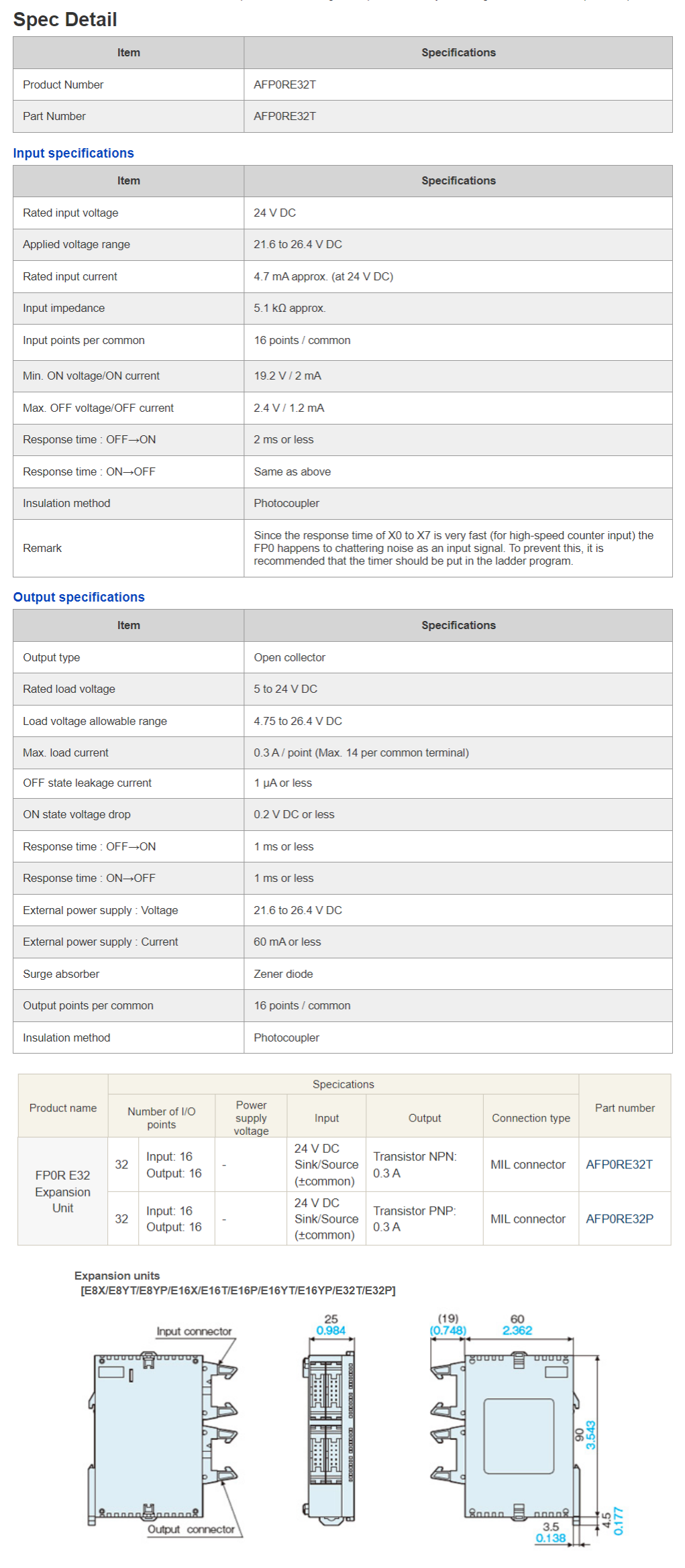

Description Specifications and Drawings


Panasonic: Expansion Unit 16IN/16OUT (AFP0RE32T)
PLC Expansion Module, 16 In 16 Transistor Outputs, FP0R Series, DC digital mixed input and output unit (right-side expansion type)16E/16S digital expansion for FP0R, NPN, flat cable connector terminal, 24VDC
PANASONIC PLC AFP0RE32T FP0R-E32 EXPANSION UNIT MODULE 24V. E32, E8Y and E16Y: 0.3 A / point (Max. Expansion unit. Equipped with RS485 port. Surge absorber. Largest in its class Large capacity program. Rated input current. Input impedance. Expansion Unit. ).

Manufacturer

PANASONIC

Type of module

extension

Number of outputs

16

Number of inputs

16

Manufacturer series

FP0R

Kind of output 1

digital

Body dimensions

90x60x25mm

Operating temperature

0...55°C

Kind of input 1

digital, NPN, transistor
