CONTROL LOGIC 6 IN 4 OUT 12-24V DC (ZEN-10C1DR-D-V2)
With the choice of 4 different 10 I/O CPU units we fulfil all needed functionality to do all kind of control automation. Three of them (C1/C2/C4) are expandable up-to 34 I/O. The C3 has fixed 10 I/O. All DC models have analogue input and a high-speed counter input up to 150Hz. The C4 model is equipped with communication.

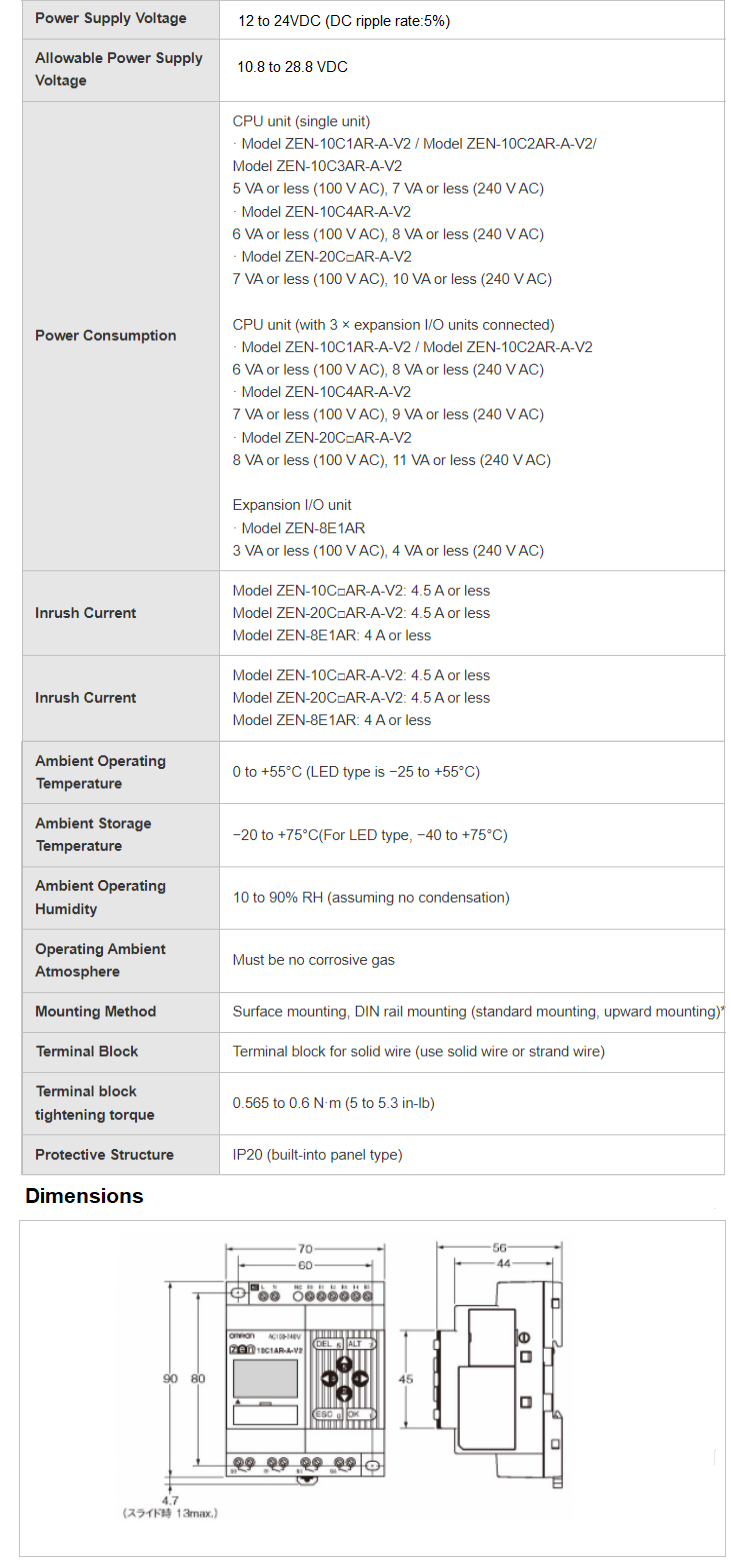

Programmable Relay, Expandable max. 3 Modules, 12-24VDC, 6 Inputs, 4 Outputs, DIN-rail. Programmable Logic Controller for Use with: ZEN series logic controllers; Mounting Type: DIN Rail/ Bolt-on; Output Type: Relay; Signal Input Type: 12-24VDC; Programmable Logic Controller-Plc-Lc Relay, Lcd, 10I/O, 12Vdc; Product Range: Zen V2 Series; For Use With: Zen Series Logic Controllers; No. Of Digital Inputs: 6; No. Of Digital Outputs: 4; No. Of Inputs: 6Inputs; No. Of Outputs: 4Outputs Rohs Compliant: Yes
Features:
DC input/supply units have analogue input + high speed counter
The ZEN-10C4 has RS-485 communication
Expansion available with relay output or transistor output
ZEN-Kits the best choice to start.

Easy Programming:

The LCD screen comes with 8 operation buttons on the front panel to enable programming in ladder view format. The LCD screen also has a backlight, making it easier to see when the ZEN is used in dark locations.

Flexible Expansion Enables Up to 44 I/O Points:

Up to three Expansion I/O Units can be connected if there are not enough I/O points. Expansion I/O Units are only 35 mm wide.
Note: CPU Units with 10 I/O points can be expanded to 34 I/O points.
Expansion I/O Units cannot be connected to Economy-type CPU Units.

Support Software with Simulation Function:

• Programs can be easily written, saved, and monitored by personal computer.
• Programs can be simulated on the personal computer without connecting to the ZEN.

Other Versatile Functions:

• Use of a Memory Cassette makes it easy to copy and save programs.
• Equipped with two analog input channels (CPU Units with DC power supply only).
• Password function ensures security.
• Multi-language display in six languages (English, Japanese, German, French, Spanish, Italian).
• Display user-set messages or analog-converted values.
