Delta: OUTPUT MODULE 64 SOL ST 5-30V (AS64AN02T-A)
Delta: OUTPUT MODULE 64 SOL ST 5-30V (AS64AN02T-A)



Alternate View

NPN output expansion module. Number of Outputs and Type, 64 - Solid State; Voltage - Supply, 5 ~ 30 VDC, Mounting Type, Chassis Mount, DIN

Price : $519.03

Quantity in Stock:

Availability: Usually Ships in 1 to 2 Weeks
Order #: AS64AN02T-A
Qty:

Description Specifications and Drawings


Digital output modules for AS300 series AS64AN02T-A

Deltas new AS300 series PLC offers higher/faster performance (40k steps/ms) providing very compact space-saving modules which simply slide onto each other with in-built automatic termination linking.

Key features:

Non-backplane design, direct DIN rail mounting

Plug-in, screw less (push-in) terminals for ease of wiring and maintenance

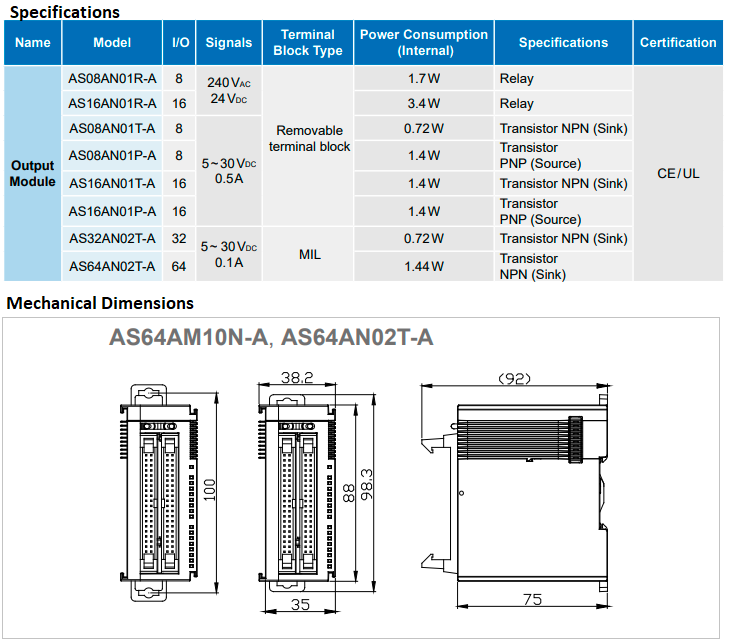

Specifications:

SUPPLY

24 VDC

DIGITAL INPUTS

0

DIGITAL OUTPUTS

64

DESCRIPTION

Digital output output module

OUTPUT TYPE

Transistor (NPN)

MOUNTING

Plug-in

DIMENSIONS (MM)

(H) 88 X (W) 35 X (D) 95

TERMINAL BLOCK

high density MIL terminal block
