CYCLONE NEMA 34 Stepper Motors : ZSM-34-3
CYCLONE NEMA 34 Stepper Motors : ZSM-34-3



Price : $149.99


Availability: Usually Ships in 6 to 8 Weeks
Order #: ZSM-34-3


Shaft:


Qty:

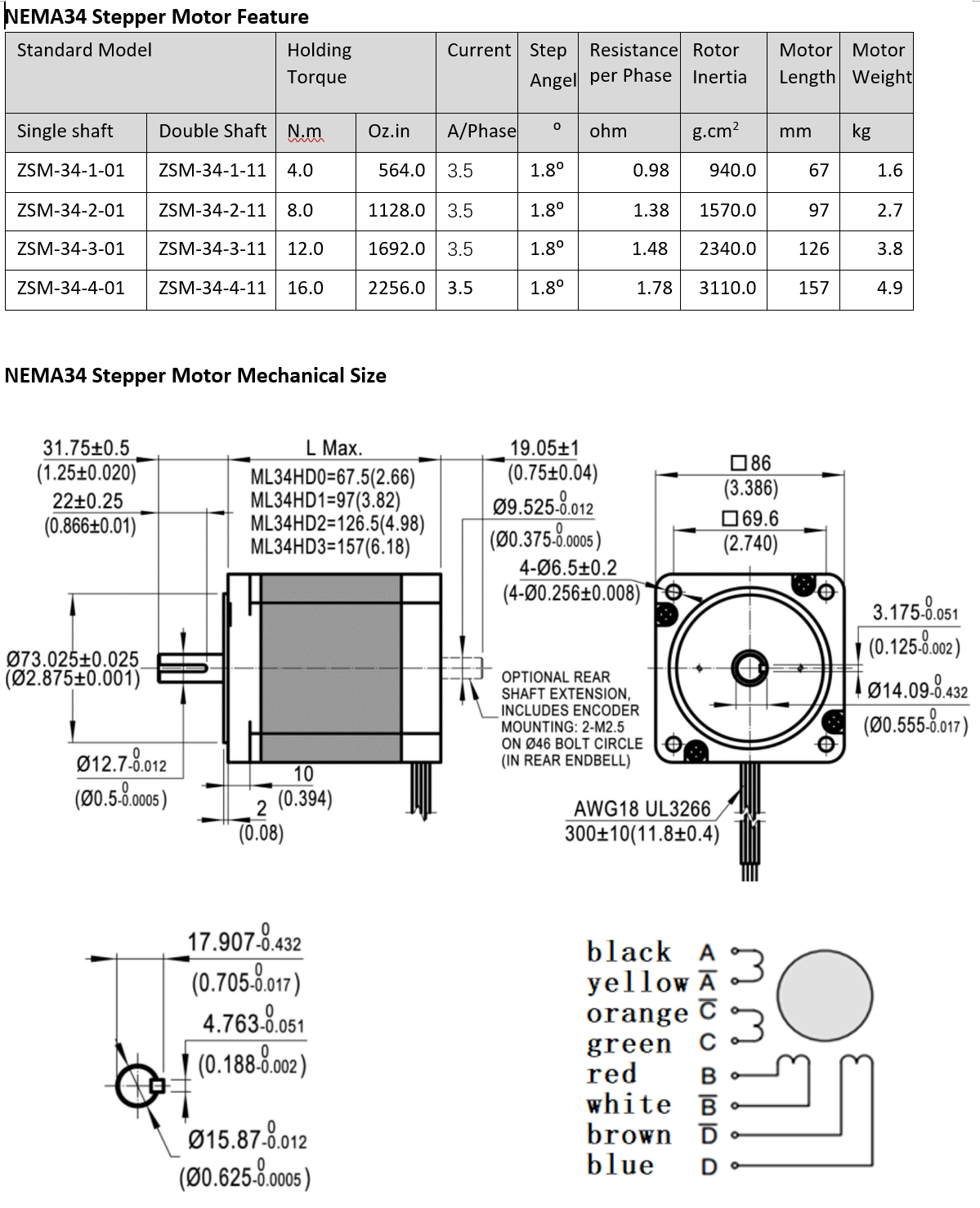

Description Ordering Information Specifications and Drawings


CYCLONE NEMA 34 Stepper Motor

Holding Torque (N.m/oz-in): 12.0/1692.0

Rated Current (A/Phase): 3.5

Step Angle (⁰): 1.8

Resistance/phase (Ω): 1.48

Rotor Inertia (g.cm2): 2340.0

Motor Length (mm): 126

Weight (kg): 3.8

Support Links
  • CYCLONE 2 phase stepping motor brochure
