CYCLONE NEMA 23 Stepper Motor : ZSM-23-1
CYCLONE NEMA 23 Stepper Motor : ZSM-23-1



Price : $39.99


Availability: Usually Ships in 2 to 4 Weeks
Order #: ZSM-23-1


Shaft:


Qty:

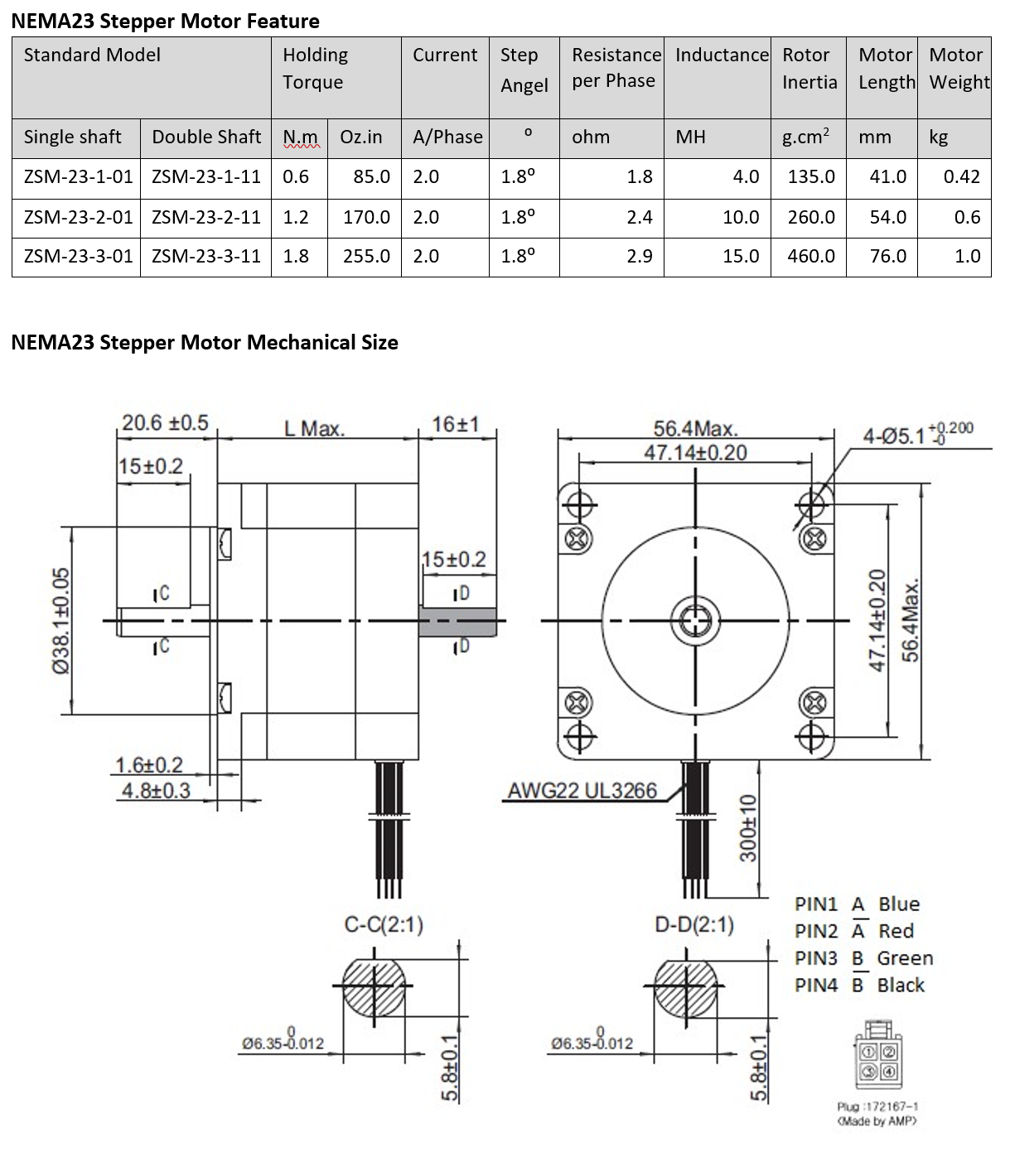

Description Ordering Information Specifications and Drawings


CYCLONE NEMA 23 Stepper Motor

Holding Torque (N.m/ oz-in): 0.6/85.0

Rated Current (A/Phase): 2.0

Step Angle (⁰): 1.8

Resistance/phase (Ω): 1.8

Rotor Inertia (g.cm2): 135.0

Motor Length (mm): 41.0

Weight (kg): 0.42

Support Links
  • CYCLONE 2 phase stepping motor brochure
