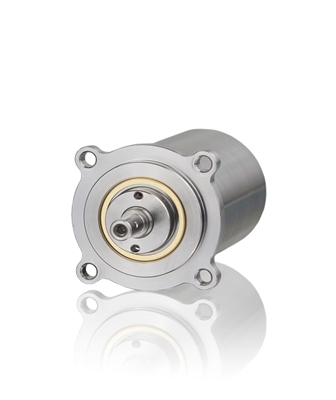

Phytron: Stepper Motors (VSS SPACE Series)
Phytron: Stepper Motors (VSS SPACE Series)



Call for Pricing

Price Quote Form


Order #: VSS-SPACE
.

Description Specifications and Drawings


Phytron: Stepper Motors (VSS SPACE Series)

Precision that moves.

Stepper motors are synchronous motors. The rotor follows an electrically charged magnetic field. The stepper motor uses a closed loop control system as opposed to the servomotor. This means that position and the number of revolutions are known even without sensor technology by principle. In addition, stepper motors are highly reliable and long-lasting due to their precision and economical construction, even in extreme environments.


Stepper Motors VSS SPACE: 19 – 125 mm

Great in Space

With more than 25 years and 250 motors in space we excel in providing reliable solutions for high precision space applications: In house engineering, manufacturing and titanium processing for optimal weight, stiffness and fit; Outgassing, clean room assembly, optimized stray magnetic flux or EMC shielding - we are looking forward to creating the perfect fit for your project!


Technical Details

  • Stepper motors for operation in space

  • High shock and vibration loads

  • Vacuum up to 10-11 hPa

  • Temperature ranges depend on the application

  • Radiation resistance up to 106 J/kg

  • Holding torques from 3.4 mNm to 9.9 Nm

  • Diameters 19 to 125 mm

  • Full steps per rotation: 500 (0.72°), 200 (1.8°), 72 (5°)

  • Outgassing holes to avoid pockets of trapped gas


Optional:

  • Gear (e. g.: VPGL low backlash gear) - Double shaft - etc.


Customized constructions:

  • Integrated motor gear types for reduction of weight and vibration resistance - Titanium housing etc.
