Mean Well: Enclosed Switching Power Supply (USP-500 Series)
Mean Well: Enclosed Switching Power Supply (USP-500 Series)



Call for Pricing

Price Quote Form


Order #: USP-500


Model Number/Code*:

.

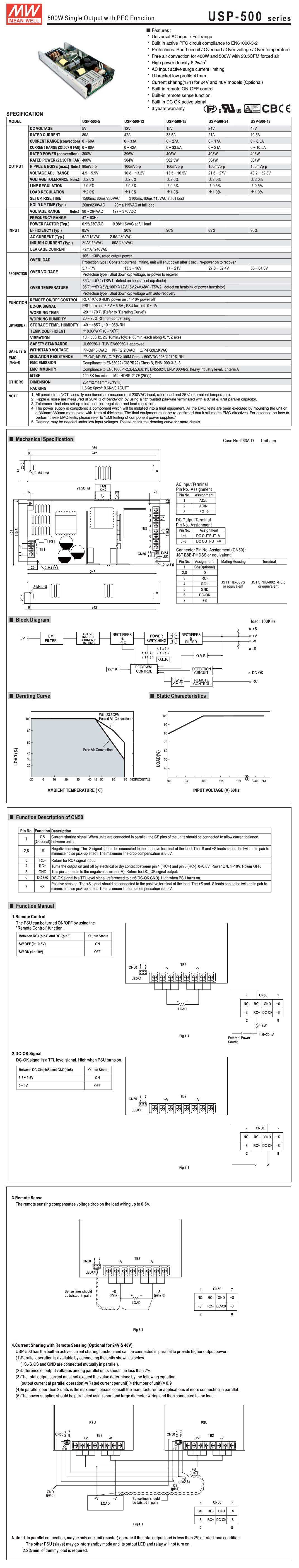

Description Specifications and Drawings


Mean Well: Enclosed Switching Power Supply (USP-500 Series)

Features:

  • Universal AC input/full range

  • Built-in active PFC circuit compliance

  • Protections: Short Circuit/Overload/ Over Voltage/ Over Temperature

  • Free air convection for 400W and 500W with 23.5 CFM forced air

  • High power density

  • AC input active surge current limiting

  • U-bracket low profile: 41 mm

  • Current sharing (1+1) for 24V and 48V models (optional)

  • Built-in remote on-off control

  • Built-in remote sense function

  • Built-in DC OK active signal

  • Watts: 150W~500W

  • 3 Year warranty


Model No.: USP-500-5, USP-500-12, USP-500-15, USP-500-24, USP-500-48
