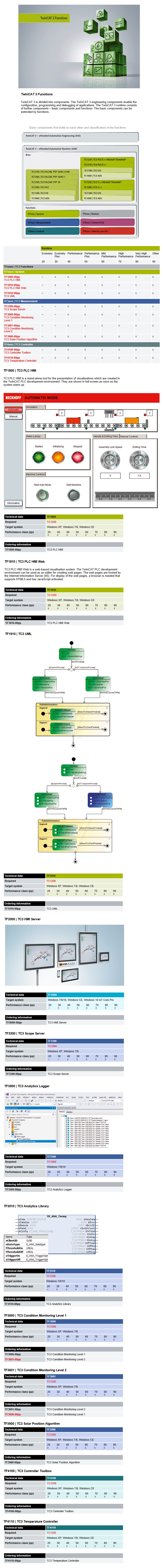

Beckhoff: TwinCAT 3 (TFxxxx Series)


TwinCAT 3 |
eXtended Automation (XA)

Beckhoff created a global standard for automation with the launch of PC-based control technology in 1986. On the software side, the TwinCAT (The Windows Control and Automation Technology) automation suite forms the core of the control system. The TwinCAT software system turns almost any PC-based system into a real-time control with multiple PLC, NC, CNC and/or robotics runtime systems. TwinCAT 3 is the systematic further development of TwinCAT 2, with which the world of automation technology is being redefined.

TwinCAT 3 highlights

  • only one software for programming and configuration

  • Visual Studio® integration

  • more freedom in selecting programming languages

  • support for the object-oriented extension of IEC 61131-3

  • use of C/C++ as the programming language for real time applications

  • link to MATLAB®/Simulink®

  • open interfaces for expandability and adaptation to the tools landscape

  • flexible runtime environment

  • active support of multi-core and 64-bit systems

  • migration of TwinCAT 2 projects

  • automatic code generation and project implementation with the TwinCAT Automation Interface


eXtended
Automation Technology – TwinCAT 3 extends the standard automation world


eXtended
Automation Architecture

  • supports all main fieldbuses

  • supports IEC 61131, C/C++, MATLAB®/Simulink®

  • supports Motion Control: from point-to-point to CNC

  • supports TwinSAFE configuration

  • supports Scientific Automation: robotics, measurement technology, Condition Monitoring

eXtended Automation Engineering

  • one tool – Microsoft Visual Studio®

  • integrated: IEC 61131 – worldwide standard in automation

  • integrated: C/C++ – worldwide standard in IT

  • integrated: TwinCAT System Manager – well-known configuration tool

  • link to MATLAB®/Simulink®: worldwide standard in science

  • expandable with other tools: editors, compilers

  • TwinCAT 2 projects can be migrated.

  • TwinCAT 3 modules: standardized programming frames

  • using the .NET programming languages for non-real-time capable applications (e.g. HMI)

eXtended Automation Runtime

  • IEC 61131, C/C++, MATLAB®/Simulink® objects in one runtime

  • integrated TwinSAFE runtime

  • extended real-time-functionality: min. 50 ìs cycle time and low jitter

  • enhanced performance: support of multi-core CPUs

  • future-proof: supports 64-bit operating systems


Beckhoff
: TF1xxx, TF2xxx, TF3xxx & TF4xxx Series

TwinCAT 3 Functions

TwinCAT 3 is divided into components. The TwinCAT 3 engineering components enable the configuration, programming and debugging of applications. The TwinCAT 3 runtime consists of further components – basic components and functions. The basic components can be extended by functions.


TF1xxx
| System

TF1800 | TC3 PLC HMI

TC3 PLC HMI is a stand-alone tool for the presentation of visualizations which are created in the TwinCAT PLC development environment. They are shown in full-screen as soon as the system starts up.

TF1810 | TC3 PLC HMI Web

TC3 PLC HMI Web is a web-based visualization system. The TwinCAT PLC development environment can be used as an editor for creating web pages. The web pages are hosted by the Internet Information Server (IIS). For display of the web pages, a browser is needed that supports HTML5 and has JavaScript activated.

TF1910 | TC3 UML

With the integration of UML (Unified Modeling Language) in TwinCAT 3.1, two additional editors for modelling of PLC software are available. The existing TwinCAT PLC programming languages are extended with the UML state and UML class diagrams.

Generally speaking, UML is a modelling language for software analysis, design and documentation. UML is particularly suitable for object-oriented implementations. The unified modelling of the PLC application creates an easy to follow software documentation, which can also be analyzed by other departments.

The UML class diagram belongs to the group of UML structure diagrams and can be used for schematic representation of the software architecture. In this way, it is possible to represent object classes and the elements contained within them, as well as object relationships in a transparent manner. The UML state diagram is part of the UML behavior diagrams and is used for dynamic software modelling. It can be used for a graphic specification of the dynamic response or the state-dependent system behavior. Compilation of the state diagram generates program code, so that the state machine can be executed directly. The development process is supported by an online debugging option.


TF2xxx
| HMI

TF2000 | TC3 HMI Server

The TC3 HMI Server is a modular web server that provides the human-machine interface (HMI). It supports all CPU classes from ARM to multi-core. The powerful architecture enables a wide range of application scenarios from local panel solutions to multi-client, multi-server and multi-runtime concepts. All that is needed to start an HMI client is an HTML5-capable browser, which is available for all major operating systems. Accordingly, clients can run on PCs as well as on mobile devices such as tablets and smartphones. Whatever the platform, security is of the utmost importance, which is why the data traveling between client and server is encrypted. The integrated user management features a configurable user rights system that can be linked to the user's own IT infrastructure.

The HMI is linked to respective controllers via automation protocols like the Automation Device Specification (ADS) or OPC UA.

The HMI Server can be extended with so-called server extensions like an alarms & events system or a recipe management system. Server extensions can also be developed in C++ or .NET with a software development kit, which allows users to develop their own logic and implement additional communication protocols.


TF3xxx
| TC3 Measurement

TF3300 | TC3 Scope Server

The TwinCAT 3 Scope Server prepares data for visual display in the TwinCAT 3 Scope View. It can be used for autarkic data recordings in distributed systems within production, plant or machine networks.

TF3500 | TC3 Analytics Logger

The TC3 Analytics Logger cyclically collects data from the application and the process image. Since it works within the real-time context, it delivers outstanding performance.

The data can be stored in a local file or sent to a message broker via an IoT communication protocol. The broker can run on your own network or in a public cloud. The Analytics Logger can be easily configured in the engineering environment of TwinCAT 3 via Microsoft Visual Studio®.

TF3510 | TC3 Analytics Library

The TC3 Analytics Library is a PLC library with analytical functions for process and application data. It can be run locally on the target system or on an analytical system that is linked to the cloud.

The library contains function blocks for cycle analysis with minimum, maximum and average cycle times. It also contains function blocks for threshold value monitoring and is able to document the number of threshold value violations. Other function blocks analyze signal amplitudes and store indicators like maxima and minima.

The library makes it easy to analyze fault conditions as well as certain states of a state machine. In combination with the TC3 HMI, easy-to-use machine dashboards can be developed that process and display valuable information for operators and service technicians.

TF3600 | TC3 Condition Monitoring Level 1

In order to implement Condition Monitoring for machines and plants, the TwinCAT Condition Monitoring library offers a modular construction kit of mathematical algorithms with which measured values can be analyzed. The user can serve himself from this construction kit, depending upon the application background, thus having the option to develop a scalable solution on different platforms.

The library's functions are primarily relevant to analysis, statistics and classification. In addition to spectral analysis via FFT or using, for instance, an envelope spectrum, it is possible to calculate key statistical values such as the kurtosis or the crest factor. Combining these algorithms with limit value monitoring is, for instance, ideally suited to monitoring roller bearings.

Level 1 contains the following algorithms:

  • Power Spectrum

  • Magnitude Spectrum

  • Envelope

  • Envelope Spectrum

  • RMS

  • Crest Factor

  • Moment Coefficients

  • Mean, Standard Deviation, Skew, Kurtosis

  • Discrete Classification

  • Watch Upper Thresholds

TF3601 | TC3 Condition Monitoring Level 2

In addition to the Level 1 functions, TwinCAT Condition Monitoring Level 2 contains the following algorithms:

  • Hilbert Transform

  • Analytic Signal

  • Instantaneous Phase

  • Overlap Add Synthesis

  • Statistics of Frequency Spectra

  • Quantities and Percentiles

  • Homomorphic Signal Processing

  • Power Cepstrum

  • Instantaneous Frequency

  • Bayesian Classification

TF3900 | TC3 Solar Position Algorithm

With the TwinCAT Solar Position Algorithm it is possible to determine the sun angle using the date, time, geographical longitude and latitude as well as further parameters (depending on the desired accuracy). The function block works with a maximum inaccuracy of ±0.001°.


TF4xxx
| TC3 Controller

TF4100 | TC3 Controller Toolbox

The TwinCAT Controller Toolbox covers all essential blocks for control applications.

  • controllers satisfy industrial requirements such as anti-reset windup

  • simple basic controllers (P, I, D)

  • complex controllers (PI, PID, switching controllers)

  • filter blocks

  • control value generators (limiters, PWM)

  • ramp and signal generator blocks

TF4110 | TC3 Temperature Controller

Temperature controllers can be simply implemented using TwinCAT Temperature Controller. Simple commissioning through self-adjustment of the controller (auto-tuning) is included.

  • automatic and manual operation with shock-free set up

  • control value analog or pulse-width modulated signal

  • tolerance monitoring, absolute value monitoring

  • scalable reaction to sensor error and heating power faults

  • limitation of set and control values

  • optional ramping of the set value

  • optional start-up phase for the setpoint variables

  • industrial PID controller as base control algorithm inside the temperature controller


Model No.: TF1800-00pp, TF1810-00pp, TF1910-00pp, TF2000-00pp, TF3300-00pp, TF3500-00pp, TF3510-00pp, TF3600-00pp, TF3601-00pp, TF3900-00pp, TF4100-00pp, TF4110-00pp
