LS: Inverter SV022iG5A-4
LS: Inverter SV022iG5A-4



Price : $788.00


Availability: Usually Ships in 1 to 2 Weeks
Order #: SV022IG5A-4
Qty:

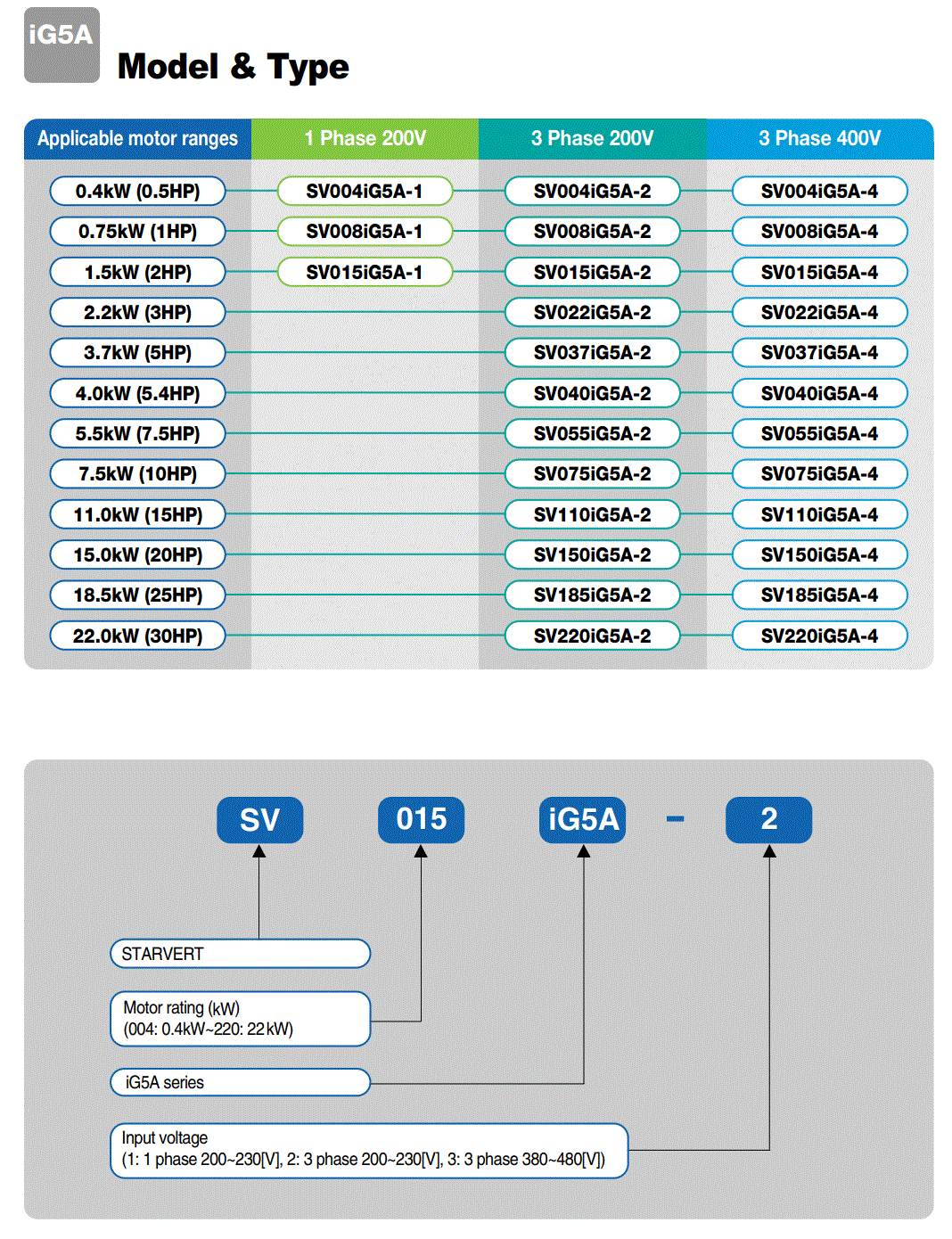

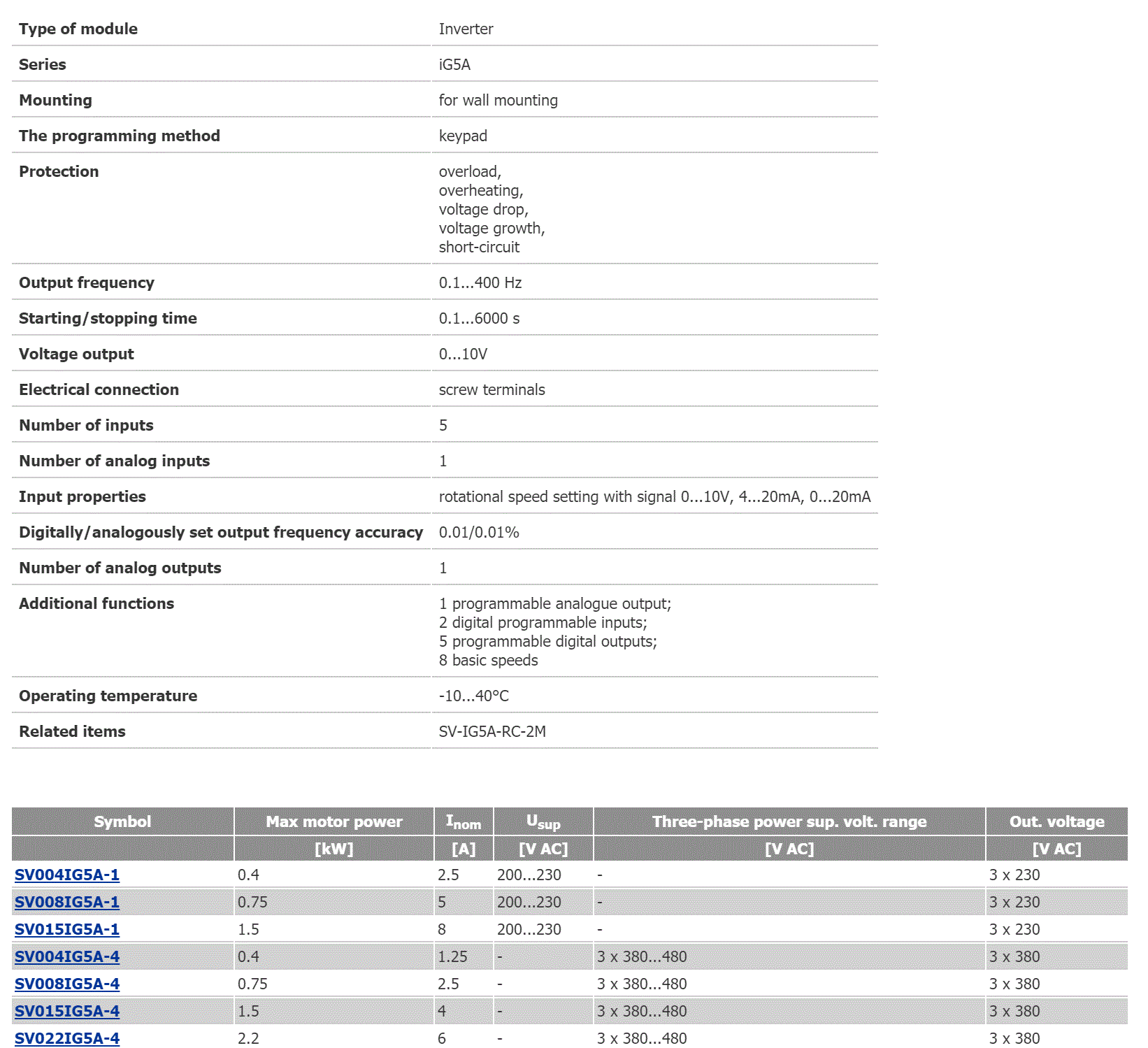

Description Ordering Information Specifications and Drawings


Inverter
STARVERT iG5A

LS Starvert iG5A is very competitive in its price and shows an upgraded functional strength. User-friendly interface, extended inverter ranges up to 22kW, superb torque competence and small size of iG5A provides an optimum use environment.

LS INDUSTRIAL SYSTEMS
Inverter
2.2kW
3 x 380V AC
3 x 380...480V AC
rotational speed setting with signal 0...10V, 4...20mA, 0...20mA
0...10V
screw terminals
for wall mounting
keypad
overheating, overload, short-circuit, voltage drop, voltage growth
5
1
-10...40°C
0.1...400Hz
0.1...6000s
6A
0.01/0.01%
1
iG5A
SV-IG5A-RC-2M

  • 1 programmable analogue output
  • 2 digital programmable inputs
  • 5 programmable digital outputs
  • 8 basic speeds

  • Gross weight: 2082.6 g
  • Manufacturer part number: SV022IG5A-4
