AMP: NEMA 24 Integrated Motors (STM24C-3CN)
AMP: NEMA 24 Integrated Motors (STM24C-3CN)



Price : $588.00

Order #: STM24C-3CN
Qty:

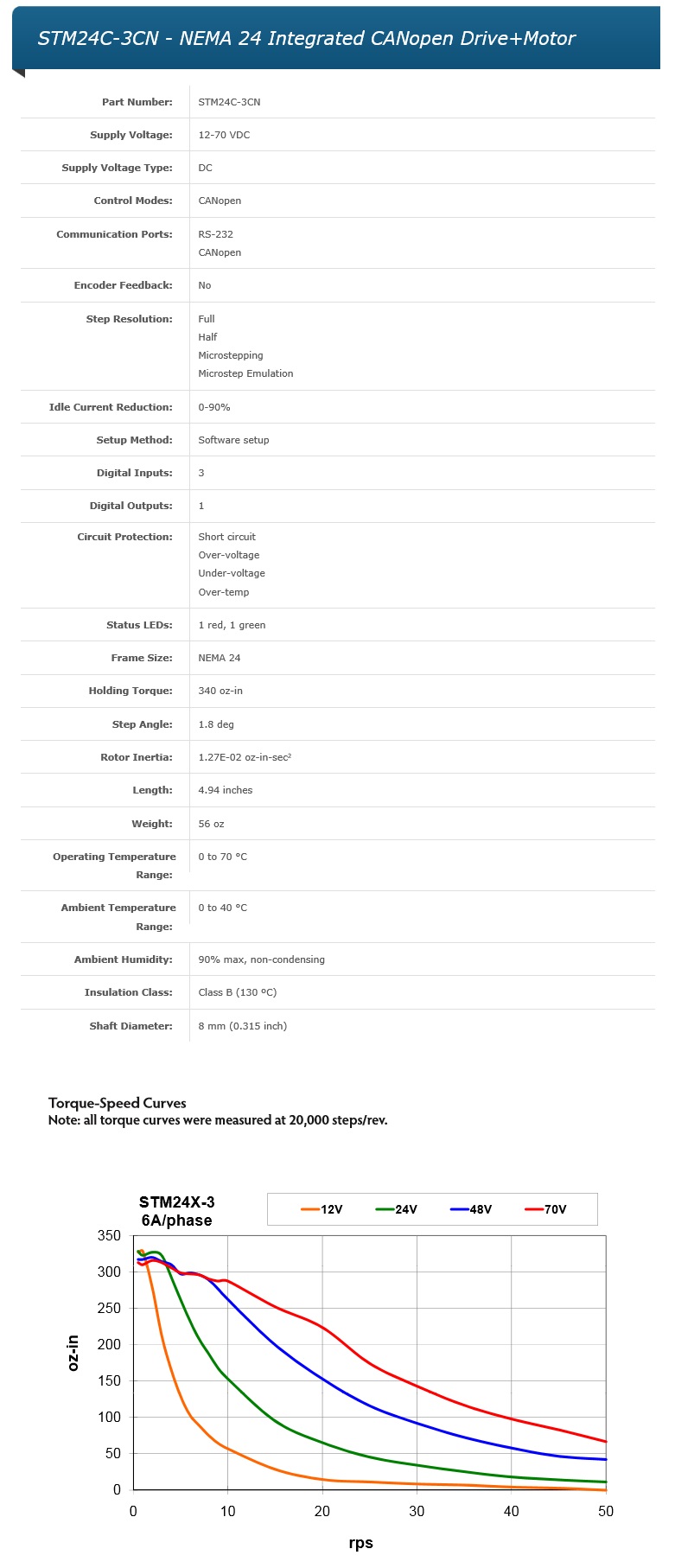

Description Specifications and Drawings


AMP: NEMA 24 Integrated CANopen Drive+Motor (STM24C-3CN)

Features:

  • Sophisticated current control

  • Anti-resonance

  • Torque ripple smoothing

  • Microstep emulation

  • NEMA 24 frame size

  • DS301 and DSP402 supported

  • Profile position and velocity modes

  • Several homing modes

  • Objects for Q programming

  • Objects for data registers

  • RS-232 port for programming

The STM24C-3CN integrated stepper is a drive+motor unit, fusing a NEMA 24 step motor and a sophisticated, 6.0 A/phase (peak-of-sine) step motor drive into a single device. Power to the drive, located at the rear of the motor, must be supplied by an external DC supply. See Related and Recommended Products below for compatible 24 and 48 volt DC power supplies.

The STM24C-3CN integrated stepper is designed to operate on a CANopen communication network and conforms to Can in Automation (CiA) DS301 and DSP402 specifications. It supports Profile Position, Profile Velocity, and Homing modes, as well as the ability to run stored Q programs via Applied Motion-specific CANopen objects. All STM24 integrated steppers are setup and configured using Applied Motion’s ST Configurator™ software.

The STM24C-3CN comes with 3 digital inputs and 1 digital output. The digital inputs accept signals of 5-24 VDC and can be used for connecting end-of-travel limit switches, jog switches, quadrature encoder signals, PLC outputs, sensors, or many other signal types. The digital output can be connected to PLC inputs, counters, lights, relays, or other devices. The unit also comes with 1 analog input that accepts 0-5 VDC signals, which can be used for velocity and position control.

The STM24C-3CN comes with an RS-232 port for programming and a CANopen port for network communications.

A VL series gearhead purchased for this motor will require a special mounting adaptor and 2 weeks lead time. Please contact customer service for the price of this adaptor.
