AMP: NEMA 23 Integrated Motors (STM23S-2AN)
AMP: NEMA 23 Integrated Motors (STM23S-2AN)



Price : $345.00


Order #: STM23S-2AN
Qty:

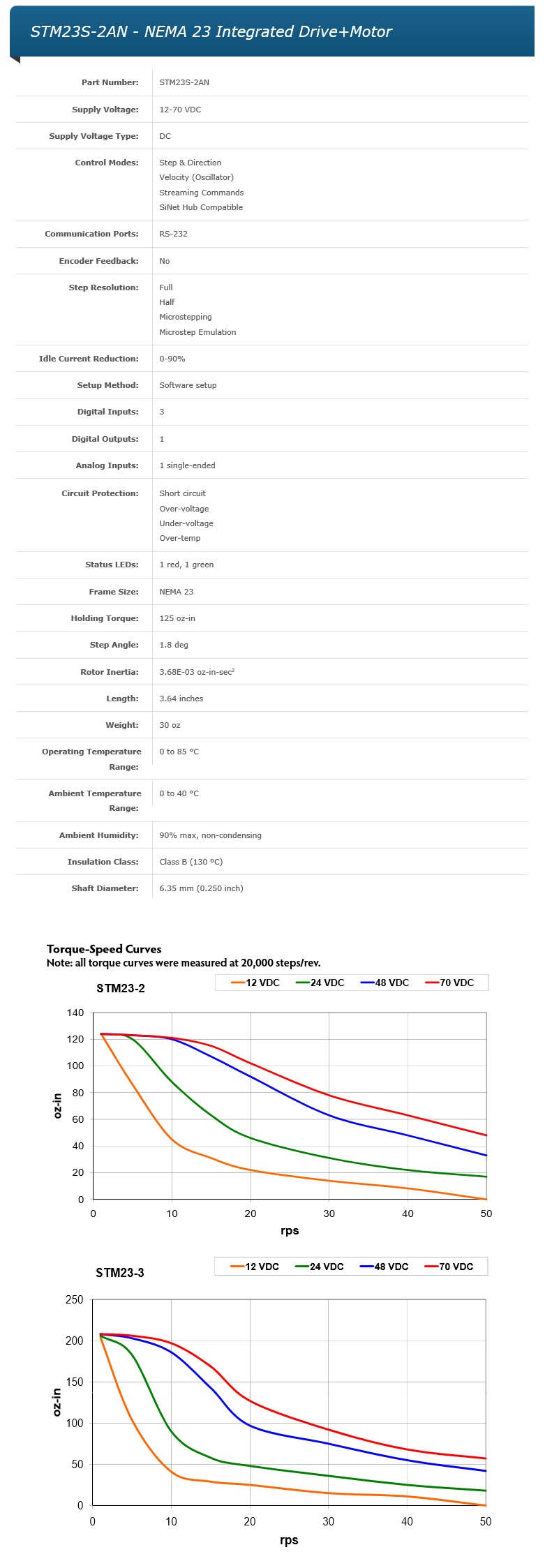

Description Specifications and Drawings


AMP: NEMA 23 Integrated Drive+Motor (STM23S-2AN)

Features:

  • Sophisticated current control

  • Anti-resonance

  • Torque ripple smoothing

  • Microstep emulation

  • Step & direction, CW/CCW pulse, and A/B quadrature control modes

  • Oscillator (velocity) control mode

  • Streaming serial commands

  • SiNet™ Hub compatible

  • RS-232 port for programming and communications

The STM23S-2AN integrated stepper is a drive+motor unit, fusing a NEMA 23 step motor and a sophisticated 5.0 A/phase (peak-of-sine) stepper drive into a single device. Power to the drive, located at the rear of the motor, must be supplied by an external DC supply. See Related and Recommended Products below for compatible 24 and 48 volt DC power supplies.

The STM23S-2AN integrated stepper can operate in the following control modes: step (pulse) & direction, velocity (oscillator), streaming serial commands (SCL), and operation with an Applied Motion 4-axis or 8-axis SiNet Hub. All STM23 units are setup and configured using Applied Motion’s ST Configurator™ software.

Each STM23 integrated stepper comes with 3 digital inputs, 1 digital output, and 1 analog input. The digital inputs accept signals of 5-24 VDC and can be used for connecting pulse & direction signals, end-of-travel limit switches, jog switches, quadrature encoder signals, PLC outputs, sensors, or many other signal types. The digital output can be connected to PLC inputs, counters, lights, relays, or other devices. The analog input accepts 0-5 VDC signals and can be used for velocity and position control.

The STM23S-2AN comes with an RS-232 port for programming and serial communications.
