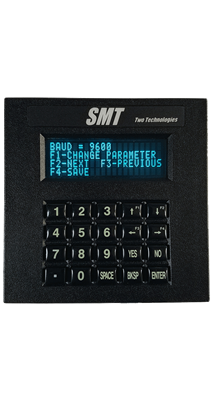

The SMT Series is line of ASCII terminals for use with computers, properly equipped instruments and industrial machinery. The SMT can be mounted permanently or as a detachable unit.

Custom configurations and special options available, including: Custom Default Settings, Displays, Keypad Graphics, I/O Interface, Firmware, Case Color and Logo Tag

Three (3) year warranty included.

Looking for the End of Life Beijer Qterm J10 or Qterm N15 or any Legacy Terminals, HMI, or Teach Pendants? TwoTechnlogies has replaced End of Life unit in the field. The SMTNELR is a Plug and Play replacement.

Display

• Reflective/Transreflective Liquid Crystal Display
• 4 Row x 20 Character Display Format
• Standard Character Set: US ASCII (5 x 7 pixels). Latin1 and European Character Sets Also Available as an Option.
• Dark Characters on Light Background (except VFD)
• Optional Super Twist, Supertwist Backlit, Extended Temperature Supertwist Backlit, VFD and Extended Temperature VFD available.

Keys & Switches

• Type: Membrane
• Layouts: 20-key
• Feedback: Tactile and Audible
• Four Programmable: Function Keys
• Optional Backlit and Backlit Phosphorescent Keypads available

Power

• Power Voltage: 7.5-12 VDC +/- 5% Linear Regulator
• Current: 45-50 mA Typical

Interface

• Type: RS-422
• Handshaking: 2 Lines (DTR, DTS) for RS-232, CMOS/LSTTL
• Data Rates: 110 to 9,600
• Parity Range: Even, Odd, Mark, Space and None
• Control Bits: 1 Start and 1-2 Stop Bits
• Standard Interface Connector: 6 Pin Female Modular Connector

Environment

• Nematic Displays
  • Storage Temp: -20°C to +70°C
  • Operating Temp: 0° to + 50°C
  • Extended Temp: -20°C to +70°C
• Vacuum Fluorescent Displays
  • Storage Temp: -20° to + 70°C
  • Operating Temp: -20° to + 70°C
  • Extended Temp: -40° to + 85°C
• Humidity 5-95% (non-condensing)
  NEMA 4/12- panel mounted (using supplied hardware)

User Selectable Options

• Baud
• Data Bits
• Parity
• Display PE
• Repeat
• Handshake
• Echo
• Self-Test

Custom Options

• Default Settings
• Displays • Keypad Graphics
• I/O Interface
• Firmware
• Case Color
• Logo Tag

Certifications

• FCC Class A
• CE (standard configuration)
• CENELEC EN 55022
• CISPR Class A
• EN 50082.1
• EN 60950

Features

• Panel Mount (Multiple mounting options)
• Programmable Function Keys (single character)
• Membrane or Elastomeric Keypad
• 20 Key Standard Keypad
• Parameter Setup
• Up to 9,600 bps Communication
• NEMA 4/12
• Optional VT-100/ANSI 3.64 Compatibility
• Height: 4.9 Inches (124 mm)
• Width: 4.9 Inches (124 mm)
• Depth w/Cover: 1.3 inches (33 mm)
• Depth w/o Cover: 1.1 inches (28 mm)
• Weight: 12 Ounces (340 grams)
• Case Front: Valox 420
