Yaskawa: Rotary Servo Motors SGMGV Sigma-5 Series SGMGV-C

SGMGV Sigma-5

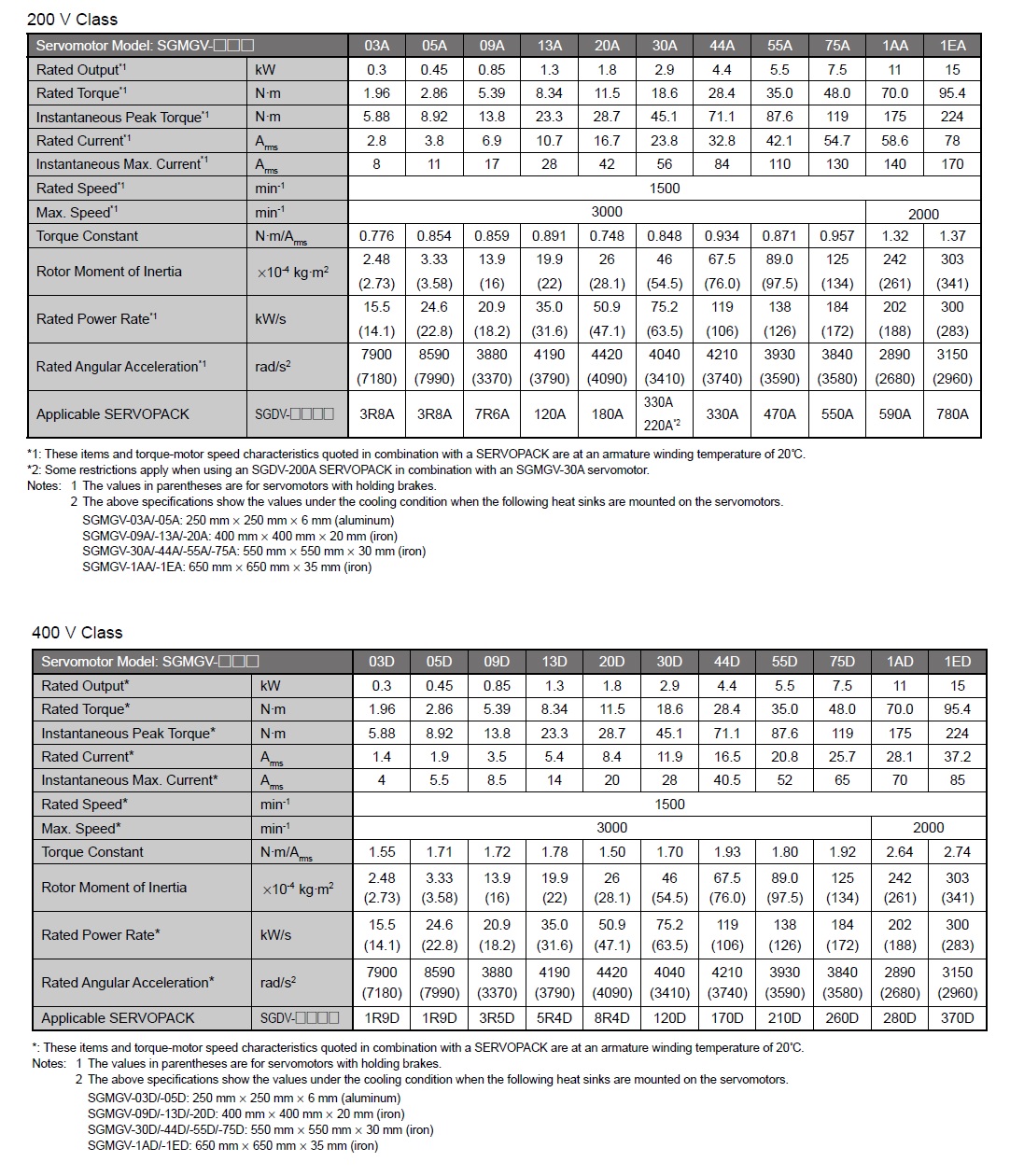

Rated Output: 300W, 450W, 850W, 1.3kW, 1.8kW, 2.9kW, 4.4kW, 5.5kW, 7.5kW, 11kW, 15kW

The SGMGV medium capacity brushless servomotor can be used in a variety of applications. Some characteristics of this motor line are as follows:

• Medium inertia
• Mounted high resolution serial encoder: 20-bit
• Maximum Speed: 3000 rpm
• Wide Selection: 30W to 15kW
• Holding Brake and Shaft Seal options available
• Protective Structure: IP67
• Time Rating: Continuous
• Vibration Class: V15
• Insulation Resistance: 500 VDC, 10 MW min.
• Ambient Temperature: 0 to 40˚C
• Excitation: Permanent magnet
• Mounting: Flange-mounted
• Thermal Class: F
• Withstand Voltage: 1500 VAC for one minute (200-V Class)
• 1800 VAC for one minute (400-V Class)
• Enclosure for IP67 (except for shaft opening): Totally enclosed, self-cooled
• Ambient Humidity: 20% to 80% (no condensation)
• Drive Method: Direct drive
• Rotation Direction: Counterclockwise (CCW) with forward run reference when viewed from the load side
