Alpha Wire: Controller to Servo Driver Cables
Alpha Wire: Controller to Servo Driver Cables



Call for Pricing

Price Quote Form


Order #: SF61


Model Number/Code*:

.
Description Specifications and Drawings


Alpha Wire: Industrial Series SF Flex Servo Control

Alpha Wire's Series SF cables are designed specifically for servo motors and servo drives. Series SF cable is the right choice if you need increased flexibility for your power servo applications.

Industrial Series SF Key features:

Power cable

  • 4-conductor power cable, with or without brake pair

  • 18 – 8 AWG

  • Thermoplastic elastomer jacket

  • SF Series offers increased flexibility

  • UL Type TC-ER (600V)

  • UL Type WTTC (1000V)

  • Sunlight resistant

  • UL Oil Res I/II

Control cable

  • 3 to 6 pairs for resolver applications

  • 9 conductors for encoder applications

  • 20 AWG

  • Polyolefin insulation

  • Thermoplastic elastomer jacket

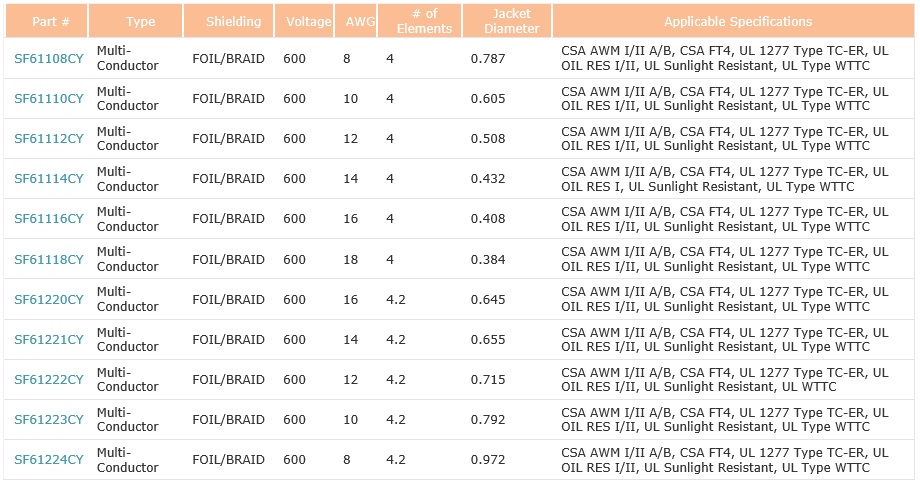

Model No.: SF61108CY, SF61110CY, SF61112CY, SF61114CY, SF61116CY, SF61118CY, SF61220CY, SF61221CY, SF61222CY, SF61223CY, SF61224CY
