Misumi: Single Axis Robots (RS1C Series)
Misumi: Single Axis Robots (RS1C Series)



Call for Pricing

Price Quote Form


Order #: RS1C


Model Number/Code*:


.
Description Specifications and Drawings

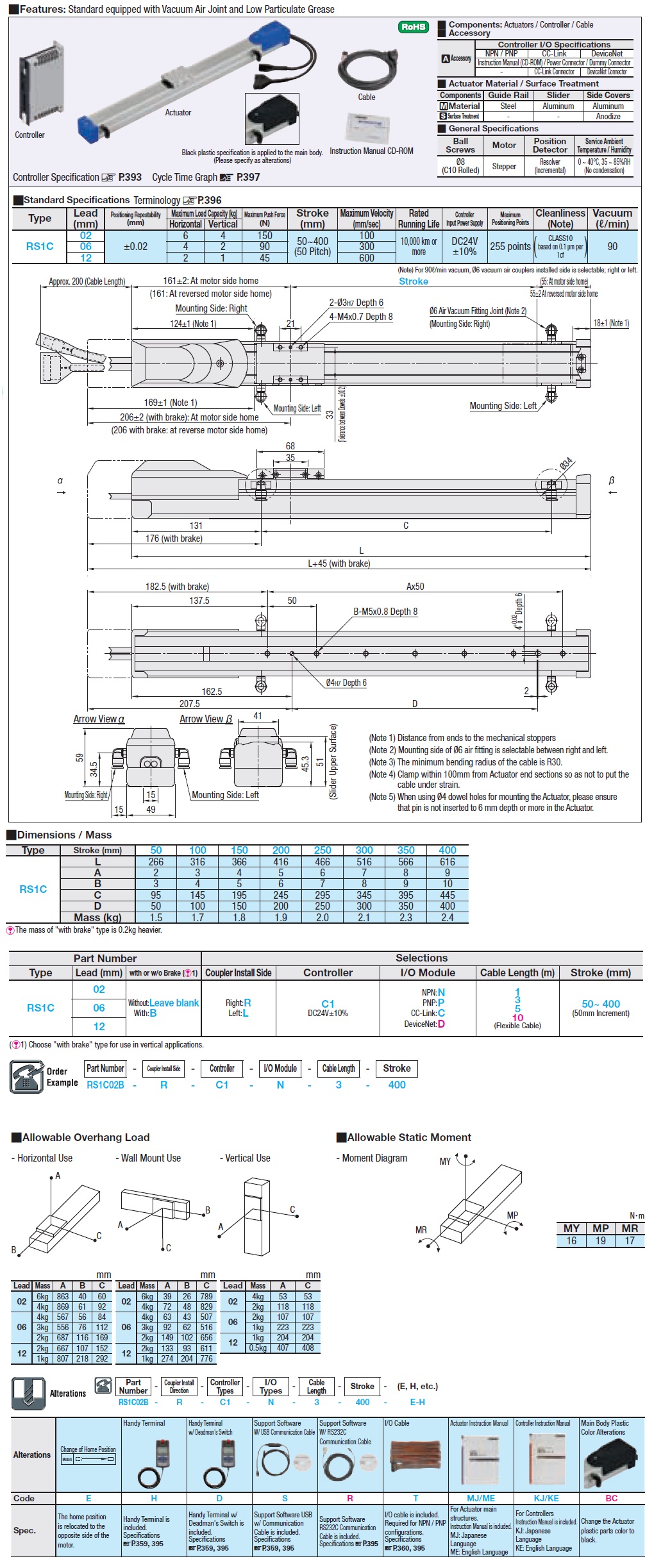

Misumi Single-Axis Robots: Clean Room Model RS1C

ACTUATORS FOR LINEAR MOTION APPLICATIONS

New RS Series further expands Misumi's comprehensive portfolio of single axis actuators designed to perform a diverse array of motion control functions.

The new Single Axis RS Series Actuators are CE compliant and are available in eighteen small sizes (RS) and twenty large sizes (RSH), as well as Clean Room Class 10 versions. The small types are driven by stepper motors, large types by AC servo motors.

The new RS Series product line offers:

A superior structure to extend product life span, even in harsh environments. (Rated life span is 10,000 km and above.)

  • A configurable stroke of 50 to 1050mm with constant load capacity regardless of speed.

  • Clean Room Class 10 versions (RS C and RSH C), which feature a sealed design and high durability stainless steel cover.

  • A favorable price/performance ratio over competitive products in the market.

Misumi offers an array of accessory options for the Single Axis Robot RS Series Actuators. These include: Power and signal cables, I/O cabling, control terminal, noise filter, support software and dedicated USB cable (to connect controller to the PC), and replacement data backup batteries for larger, RSH- type controllers. Functions such as cycle time simulator and monitoring module are unique to Misumi support software.

With the launch of the RS Series, Misumi continues to expand its comprehensive portfolio of single axis actuators designed to provide precision linear motion in packaging, medical, semiconductor, automotive and other automated assembly operations. Misumi's highly popular LX Series has also been expanded to include high precision class actuators and actuators with motors. The LX Series models are available in over 1000 possible configurations, and they are available in standard, cover and the new LXM with motor models. In additions, specially designed brackets allow a combination of two units on a different axis.

Specifications:

  • Main Body, Peripheral Components

  • Input Power Supply: DC24V

  • Table Length(mm): 68

  • Type: Sliders

  • Position Detector: Resolver Incremental Type

  • Environmental Spec.: Clean Spec.

  • Drive Method: Rolled Ball Screws

  • Table Width(mm): 41

  • Positioning Repeatability(μm): ±20


Model No.:
RS1C02-L-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02-L-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02-L-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02-L-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02-R-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02-R-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02-R-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02-R-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02B-L-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02B-L-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02B-L-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02B-L-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02B-R-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02B-R-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02B-R-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C02B-R-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06-L-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06-L-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06-L-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06-L-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06-R-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06-R-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06-R-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06-R-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06B-L-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06B-L-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06B-L-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06B-L-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06B-R-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06B-R-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06B-R-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C06B-R-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12-L-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12-L-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12-L-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12-L-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12-R-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12-R-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12-R-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12-R-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12B-L-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12B-L-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12B-L-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12B-L-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12B-R-C1-C-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12B-R-C1-D-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12B-R-C1-N-[1,3,5,10]-[50,100,150,200,250,300,350,400], RS1C12B-R-C1-P-[1,3,5,10]-[50,100,150,200,250,300,350,400]
