Sanyo Denki: AC Servo System Accessories (R2 Cables and Connectors)
Sanyo Denki: AC Servo System Accessories (R2 Cables and Connectors)



Alternate View


Price : $46.00

Price with Selected Options: $46.00


Order #: R2CABLE


Options:


Qty:
Description Specifications and Drawings


Sanyo Denki: AC Servo System Accessories (R2 Cables and Connectors)

SANMOTION R Advanced Model, AC100V, AC200V

Highly accurate AC servo systems consisting of compact, high-torque servo motors and servo amplifiers that reduce positioning settling time. With highly responsive command following and vibration controls to minimize machine stand resonance, they contribute to shortened takt time. They are ideal for applications where high precision movement is required, such as semiconductor manufacturing equipment, chip mounters, robots, and machine tools.

Specification:

  • Capacity : 15A, 30A, 50A, 100A, 150A

  • Now Available with EtherCAT Interface: EtherCAT is a 100Mbps high-speed fieldbus system, which helps shorten Takt time. It is compatible with Ethernet, and its high versatility enables the creation of a system compatible with a variety of devices. Servo amplifier firmware can be updated via EtherCAT. It is also certified through EtherCAT conformance testing conducted by a third party organization.

  • Safety Model newly added to lineup: Since this new model safely shuts down motor torque, safety systems are more easily installed on the equipment. This safety function is defined in the ”IEC61800-5-2:Safe Torque Off” and ”IEC60204-1:Stop Category 0”. In addition, this model has acquired ”IEC61508, SIL2/IEC62061,SILCL2” and ”ISO138491:Cat.3,PL=d”.

  • Encoder Connected by Oldham Coupling: Encoders can be mounted by Oldham coupling to servo motors 100 mm sq. or larger. This makes it easy to replace encoder if necessary. *This is an optional configuration, please contact us for details.

  • Waterproof and Dust Proof: All models of R Advanced Servo Motors have high IP65 waterproof and dustproof ratings, and variants rated IP67 are available for models other than R Servo Motors from 130 mm sq. to 220 mm sq.

  • All-in-One Control: Configurable parameters allow you to switch between control modes for torque, position or velocity.

  • 5-digit LED Display, Built-in Operator: The built-in operator allows you to change parameters and monitor the amplifi er status and alarm trace.

  • Test Function (JOG): On-board JOG operation function is available for testing motor and amplifier connection without the need to connect to a host device.

  • Setup Software: The setup software allows you to set parameters, and view graphical displays of monitored position, velocity or torque waveforms.

  • Multiaxial Monitor Function: The setup software allows up to 15 axes to be monitored. To enable monitoring of multiple axes, an optional communication converter and amplifier communication cable are available. *Analog/Pulse input type only

  • Built-in Regeneration Resistor: It is possible to choose whether to equip regeneration resistance or not. If the regeneration resistance capability is insufficient, it is possible to use an external regeneration resistance unit.

  • Built-in Dynamic Brake: A built-in dynamic brake provides emergency stop capability. The six kinds of motion sequences for the dynamic brake can be selected by parameter setting.

  • Fully-closed loop control: Fully-closed loop control is possible using a linear scale mounted on the device together with high resolution encoder information.
    __________________________________________________________________________________________________________________________________

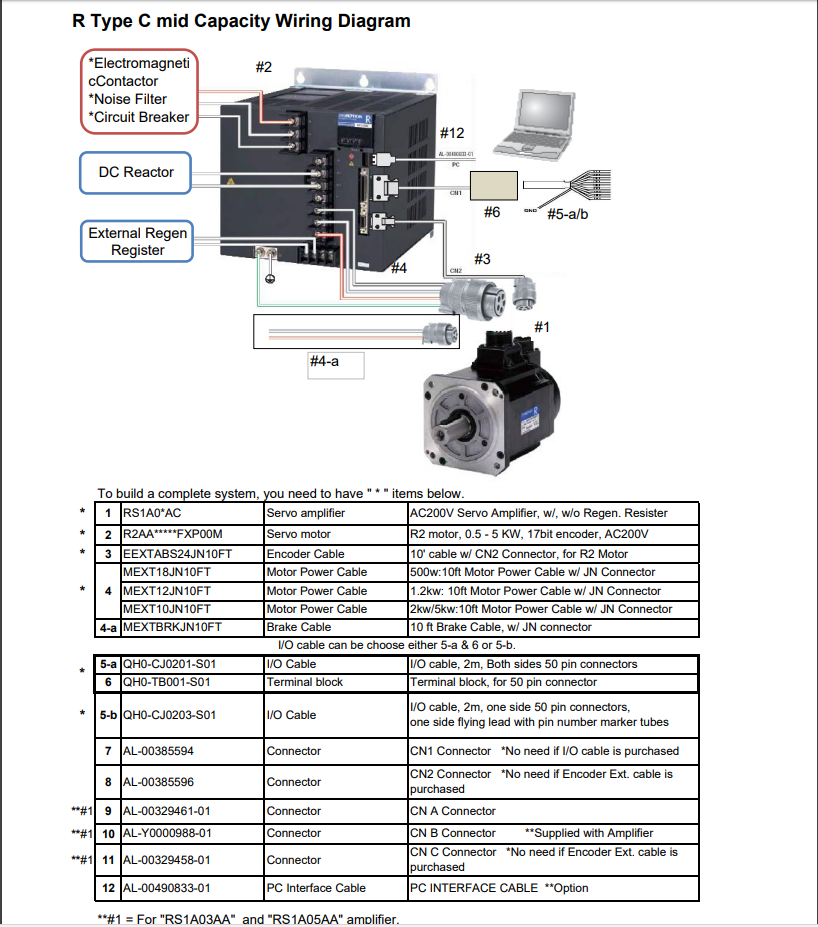

Options: 1026-100407, 1026-100410, 1026-100416, EEXTABS2410FT, EEXTABS24JN10FT, EEXTGABS2410FT, EEXTKABS2410FT, EEXTKABS24JN10FT, MEXT08JN10FT, MEXT10JN10FT, MEXT12JN10FT, MEXT1810FT, MEXT18JN10FT, MEXTB08JN10FT, MEXTB10JN10FT, MEXTBRK2010FT, MEXTG1810FT, MEXTGBRK2010FT, MEXTK14JN10FT, MEXTK1810FT, MEXTK18JN10FT

Description:
1026-100407 - I/O cable, 3FT
1026-100410 -
I/O cable, 3FT (Modbus)
1026-100416 - Safety torque off cable with connector for battery
EEXTABS2410FT - 10' cable w/CN 2 connector & CPC mating connector
EEXTABS24JN10FT
- 10' Absolute Encoder Cable w/JN connector
EEXTGABS2410FT
- 10' Absolute Encoder Cable
EEXTKABS2410FT
- 10' Absolute Encoder Cable
EEXTKABS24JN10FT
- 10' Absolute Encoder Cable w/JN connector
MEXT08JN10FT - 50 Amp 10' Motor Power Cable w/ JN Connector
MEXT10JN10FT - 10
0 Amp 10' Motor Power Cable w/ JN Connector
MEXT12JN10FT -
50 Amp 10' Motor Power Cable w/ JN Connector
MEXT1810FT - 10' cable w/CN C & CPC Mating connector, 15A

MEXT18JN10FT - 3
0 Amp 10' Motor Power Cable w/ JN Connector
MEXTB08JN10FT - 10' Brake Cable, w/JN Connector
MEXTB10JN10FT
- 10' Brake Cable, w/JN Connector
MEXTBRK2010FT
- 10' Brake Cable
MEXTG1810FT
- 10' Motor Power Cable
MEXTGBRK2010FT -
10' Brake Cable (Only for Brake Equipped Motor)
MEXTK14JN10FT -
50 Amp 10' Motor Power Cable w/ JN Connector
MEXTK1810FT -
15 Amp 10' Motor Power Cable
MEXTK18JN10FT
-
50 Amp 10' Motor Power Cable w/ JN Connector
