Oriental Motor: 0.36° Stepper Motors (PK Series)
Oriental Motor: 0.36° Stepper Motors (PK Series)



Call for Pricing

Price Quote Form


Order #: PK-0.36




.

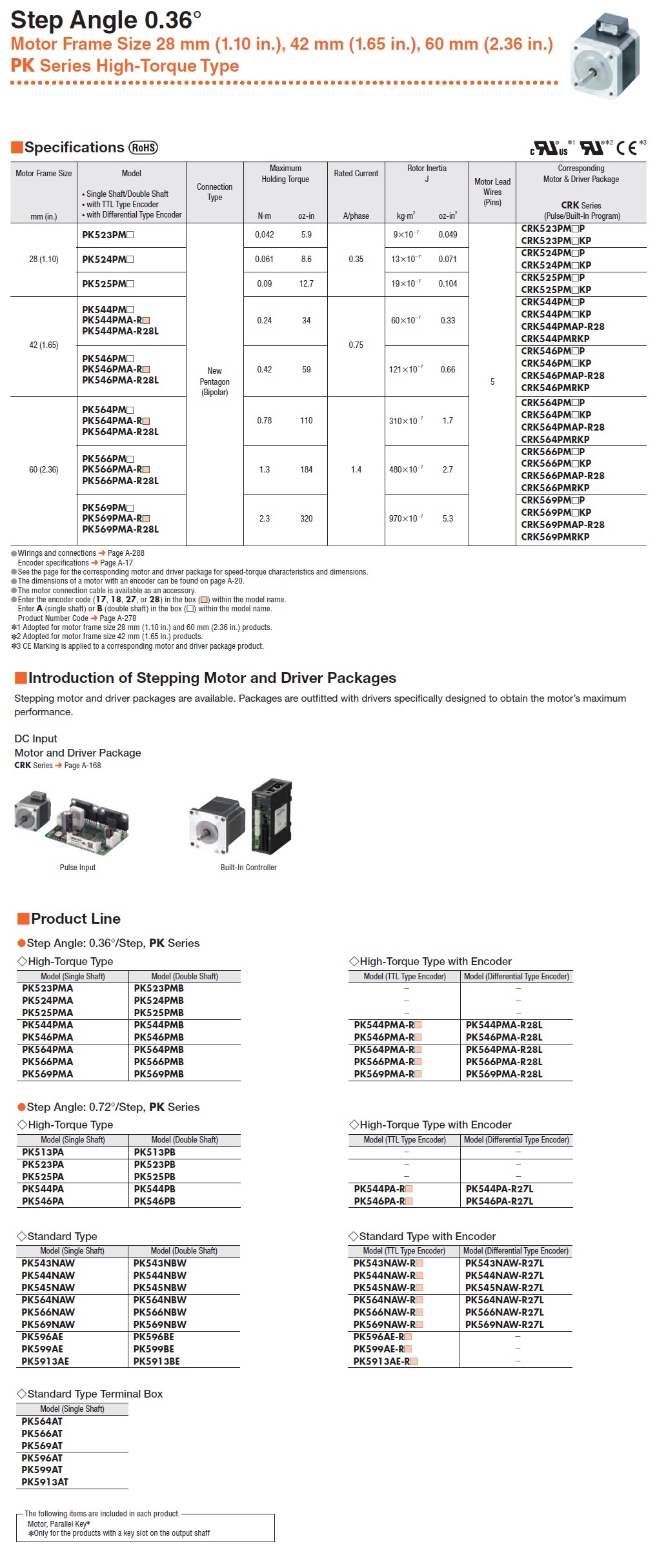

Description Specifications and Drawings


Oriental Motor: 5-Phase Stepper Motors (PK Series)

High-Torque 0.36° Stepper Motors (Motor Only)


The 0.36° Stepper Motors, High-Torque type provides 1,000 steps per revolution by having 100 teeth on the rotor and contributes to the highest resolution and lowest vibration. This stepper motor also achieves improved stopped positional accuracy of 2 arc minutes.

These stepper motors are available in frame sizes from 1.10 in. (28 mm) up to 2.36 in. (60 mm). Encoder options are available as a standard offering.


Stop Position Accuracy of 2 Arc Minutes (No Load)

The 0.36° high-torque type stepper motor is designed with a stop position accuracy of 2 arc minutes (0.034°) [standard type: 3 arc minutes (0.05°)]. The reduced error helps improve the positioning accuracy.


Fea
tures:

  • Lowest vibration

  • Highest resolution

  • New Pentagon (Bipolar) connection type

  • 5 lead wires

  • Encoder models available
