MYCOM: Hi-Torque Motor (Size 60)
MYCOM: Hi-Torque Motor (Size 60)




Replacement Model: PCE-56xx


Call for Pricing

Price Quote Form


Order #: PF56


Motor Part:

.
Description Specifications and Drawings

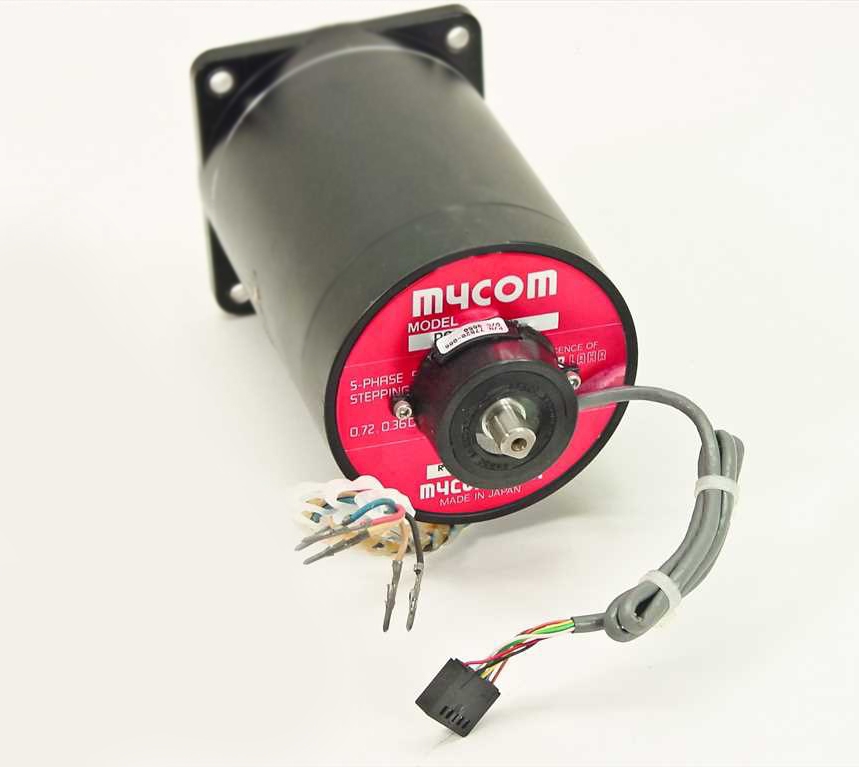

MYCOM: 5 Phase Stepper Motor (PF Series) Size 60

(Hi-Torque)

Features

  • Five leads for easy wiring configurations
  • Wide selection range to suit various applications
  • 0.3~63 kgcm Max. Holding Torque
  • Compact size for high Torque performance
  • Highly cost effective


5 Phase Stepper Motor (PF Series) PDF

Motor Part: PF 564 AC, PF 564 BC, PF 566 AC, PF 566 BC, PF 569 AC, PF 569 BC

5 Phase Stepper Motor ( ** CE approved ) PDF

Notice:

  1. Motor Mycom PF564AC discontinued, replacement model PCE5641AC has the same specs and dimensions, except that the new models PCE5641AC are CE marked.
  2. Motor Mycom PF566BC discontinued, replacement model PCE5661BC has the same specs and dimensions, except that the new models PCE5661BC are CE marked.
