Cyclone Gearbox: PEL Series (P1:Precision) Stage 2
Cyclone Gearbox: PEL Series (P1:Precision) Stage 2



Price : $916.66

Price with Selected Options: $916.66


Availability: Usually Ships in 4 to 6 Weeks
Order #: PEL_-_P1__


Model Number/Code:


Reduction Ratio (Double):


Backlash:


Output Type:


Qty:
Description Specifications and Drawings


Specifications:

· Rated Output Torque(i=Nin/Nout): 9:1 ~ 64:1

· Output Torque: UP to 1800 Nm

· Max. Output Torque: 1.5 Times T2N

· Emergency Stop Output Torque: 2 Times T2N

· Full-Load Efficiency: ≥94%

· Backlash: ≤18 arcmin

· Available Sizes: 40-315

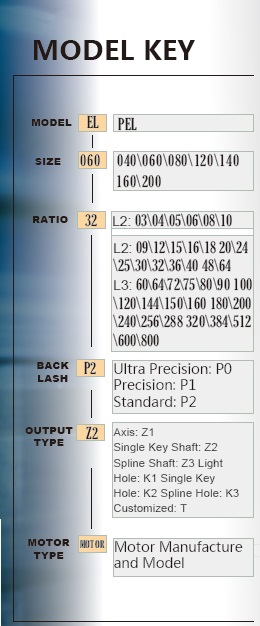

How to Order:

1. Select dimensions and reduction ratio

2. Specify Model

3. Specify motor type and installation method


Cyclone PEL Series PDF
