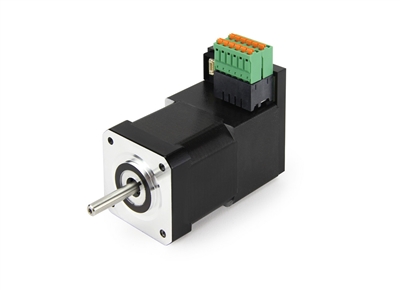

Nanotec: STEPPER MOTOR WITH INTEGRATED CONTROLLER – NEMA 17
Nanotec: STEPPER MOTOR WITH INTEGRATED CONTROLLER – NEMA 17




Price : $478.80


Availability: Usually Ships in 2 to 4 Weeks
Order #: PD2-C4118L1804-E-01
Qty:

Description Specifications and Drawings


Nanotec Electronic GmbH & Co KG

STEPPER MOTOR WITH INTEGRATED CONTROLLER – NEMA 17

Closed loop-capable stepper motors merge the benefits of stepper and servo motor technology. They run more smoothly and have a lower resonance than stepper motors, provide position feedback and control, feature short settling times, and exhibit no step loss at all. They are an alternative to stepper motors if energy efficiency, quiet running and a high load tolerance are required. Compared to servo motors, they have advantages due to their high torque at low speeds, short settling times, correct positioning without back swing and a lower price for sizes that are often smaller.

Ideal application areas for closed-loop stepper motors:

  • Multiple-axis applications (serial, Ethernet, EtherCAT, CANopen)
  • Positioning tasks with load changes
  • Winding applications
  • Belt drives (start/stop, positioning)
  • Dosing pumps, filler systems
  • Semiconductor mounting
  • Wafer production
  • Textile machines/industrial sewing machines
  • Robotics
  • Testing and inspection systems
  • Applications that require smooth operation, short settling times and precise positioning

TECHNICAL DATA

· Size - 1.65 in

· Interface - USB, IO (clock direction; analog)

· Peak Current (RMS) - 3A

· Type of Digital Inputs - 5/24V switchable

· Type of Analog Input - 0-10V

· Type of Digital Output - open-drain (max. 24 V/100 mA)

· Encoder Type - single-turn absolute

· Length - 3.74 in

· NEMA17

· Operating Voltage - 12 VDC - 48 VDC

· Holding Torque - 70.81 oz-in

· Number of Digital Inputs - 6

· Number of Analog Inputs - 1

· Digital Outputs - 2

· Encoder - Yes

· Encoder Resolution - 1024 CPR

· Weight - 0.5 kg
