Advantech：4-Axis PC Base pulse-type Motion Control Card PCI-1240U-B2E
Advantech：4-Axis PC Base pulse-type Motion Control Card PCI-1240U-B2E



Price : $698.00

Price with Selected Options: $698.00


Order #: PCI-1240U-B2E


Accessories:

Qty:

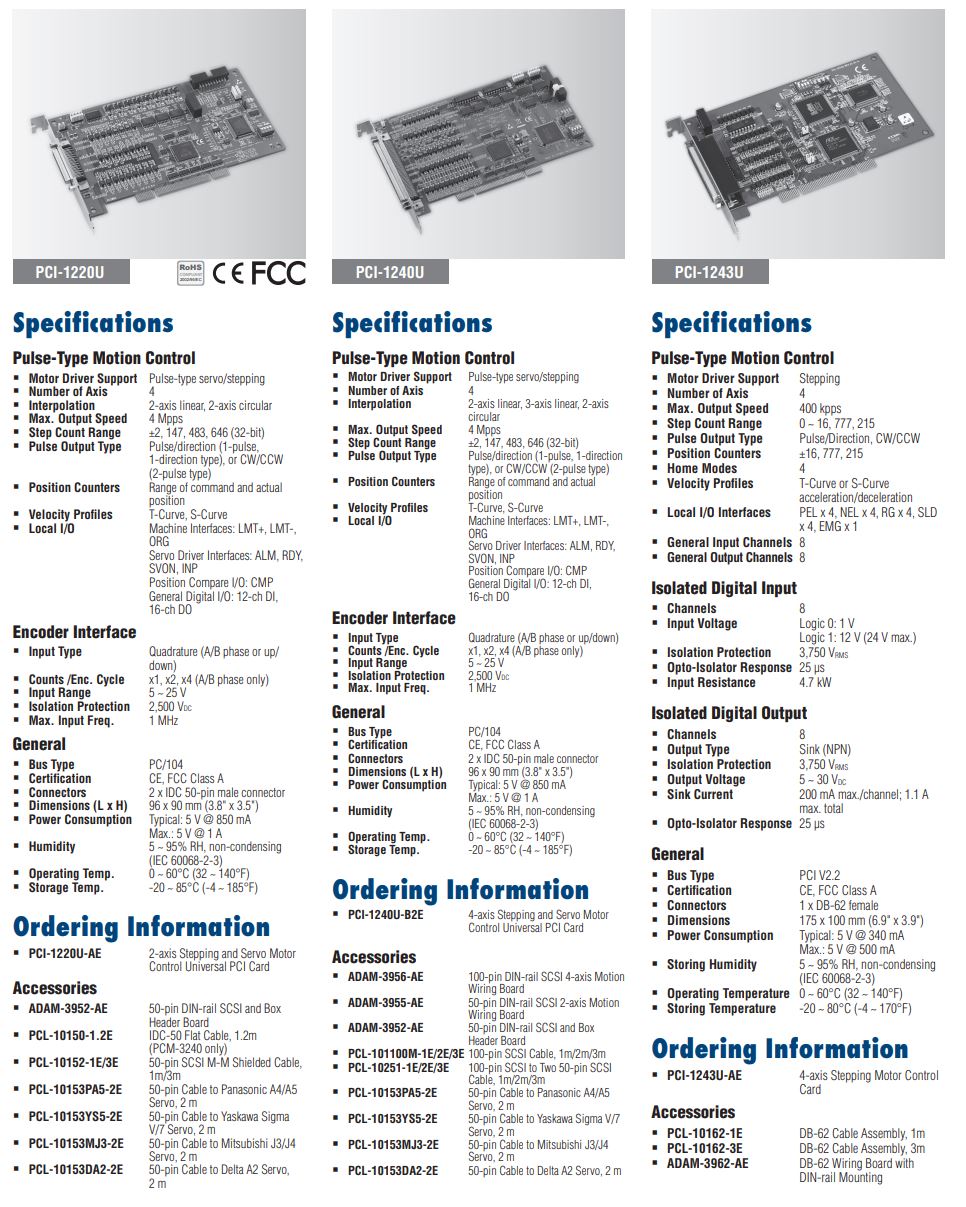

Description Specifications and Drawings

  1. 4-Axis PC Base pulse-type Motion Control Card PCI-1240U-B2E
  2. Independent 4-axis motion control
  3. Hand wheel and jog function
  4. 2/3-axis linear interpolation function
  5. 2-axis circular interpolation function
  6. Continuous interpolation function
  7. Programmable T/S-curve acceleration/deceleration rate
  8. Up to 4 MPPS output for each axis
  9. Up to 1 MHz encoder input for each axis
  10. Two encoder pulse input types: A/B phase or Up/Down

Accessory Products

Part No. DescriptionUnit Price
ADAM-3950-AE50-Pin Flat Cable Terminal, DIN-rail Mount $57.00
ADAM-3952-AECIRCUIT BOARD, PCI-1240 Wiring Terminal, DIN-rail Mount$72.00
ADAM-3955-AECIRCUIT MODULE, 2-Axis 50-pin SCSI DIN-rail motion wiring board$76.00
ADAM-3956-AECIRCUIT MODULE, 4-Axis 100-pin SCSI DIN-rail motion wiring board$98.00
PCL-101100M-1E CABLE, SCSI-100 Shielded Cable, 1m$77.00
PCL-101100M-2ECABLE, SCSI-100 Shielded Cable, 2m$95.00
PCL-10150-1.2EIDC-50 Flat Cable, 1.2m$14.00
PCL-10152-1ECABLE, 50-pin SCSI M-M Shielded Cable, 1m$24.00
PCL-10152-3E CABLE, 50-pin SCSI M-M Shielded Cable, 3m$42.00
PCL-10153DA2-2ECABLE, DB26 to SCSI-50 Cable for Delta A2, 2m$22.00
PCL-10153MJ3-2ECABLE, DB26 to SCSI-50 Cable for Mitsubishi J3S, 2m$22.00
PCL-10153PA5-2E CABLE, DB26 to SCSI-50 Cable for Panasonic A5, 2m$22.00
PCL-10153YS5-2ECABLE, DB26 to SCSI-50 Cable for Yaskawa Sigma 5, 2m$22.00
PCL-10251-3E100Pin to two 50Pin SCSICable for PCI-1240,3M$92.00


Support Links
Datasheet|Download|Driver|Manual

Support Links
    1. 4-Axis PC Base pulse-type Motion Control Card PCI-1240U-B2E
