Thomson: Belt Driven-Ball Guided Units (MS46 Series)
Thomson: Belt Driven-Ball Guided Units (MS46 Series)



Call for Pricing

Price Quote Form


Order #: MS46E
.

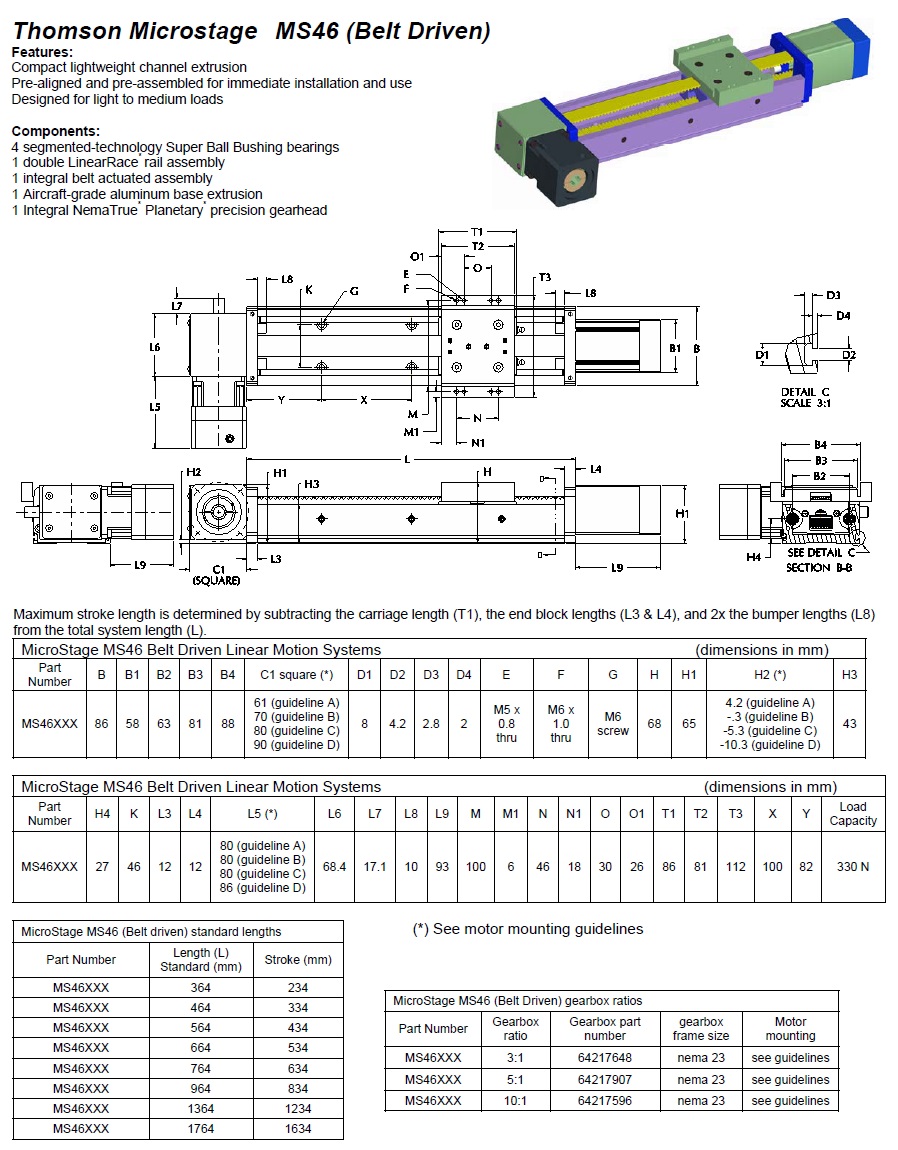

Description Specifications and Drawings


Thomson: Belt Driven-Ball Guided Units

Belt driven, ball guided positioning slides by Thomson are designed for smooth travel in dynamic applications requiring high speed, high acceleration. These families present a long life performance in the midst of acceleration rates up to 40 m/s2.

MS46E (MicroStage®) Linear Units

MicroStage MS46 is a compact, lightweight linear slide table pre-aligned and pre-assembled for immediate installation and application use. This belt driven guide's design is based off Thomson's Super Ball Bushing® technology and is ideal for automation in cramped areas.

MS46E Feature Highlights:

  • Extruded aluminum profiles

  • Unique bearing segment design

  • Double linearrace rail assembly

  • Segmented bearing technology

  • NemaTrue Planetary gearhead

  • Compact, low cost

  • Flexible mounting: T-slot & hole patterns
