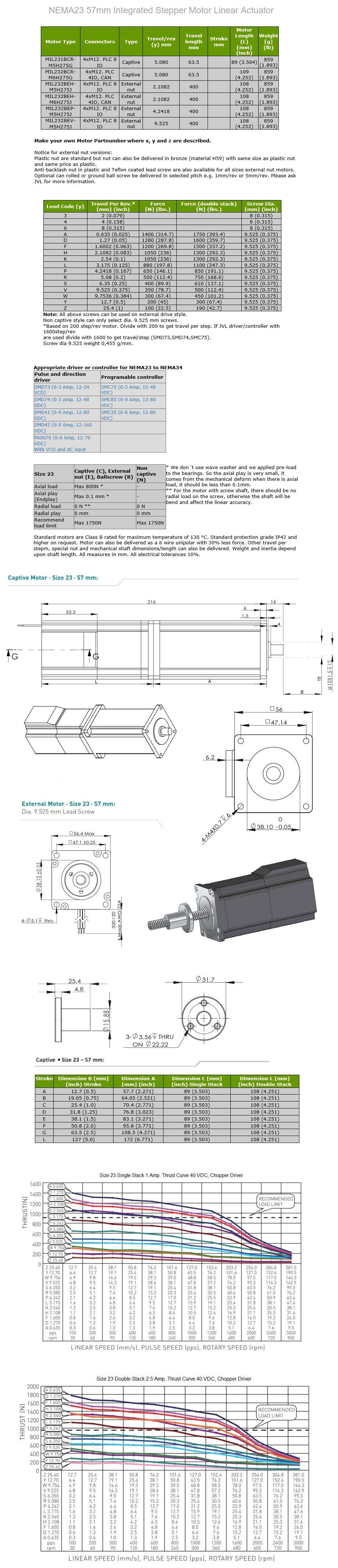

Description Specifications and Drawings


JVL: Integrated Stepper Motor with Linear Actuator (MIL23 Series)

NEMA23 | 57mm

Linear stepper motors can dramatically reduce cost and save space. There is no coupling, no additional bearing support and no assembly work required. This not only reduces cost but also reduces the failure rate due to a low number of components and simplified construction. In applications with small load ratings, a linear guide is also not required. The special design and material of the nut secure long life operation.

Below versions can be delivered

  • Captive linear actuator with built-in guider for linear movements. Moving part does not rotate.

  • External linear actuator. Nut is mounted on the lead screw.

  • Captive (will be available for NEMA34 in the future) and External linear actuator in NEMA size 23 and 34 can be delivered with an integrated driver or controller.

Below versions can be delivered upon request

  • Different shaft and stroke length

  • Precision ball screw

  • Special nut design

  • Higher IP protection


Model No.: MIL231BCR-M5H275G, MIL232BCR-M6H275G, MIL232BEH-M5H275J, MIL232BEH-M6H275J, MIL232BEP-M5H275J, MIL232BEV-M5H275J
