Panasonic: AC Servo Motors (MHMD A5 Series)

MHMD-MINAS A5 Series (100-200V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 0.5-1.3

  • Rated Output (W): 200-750

  • Rated Torque (N.m): 0.64-2.4

  • Momentary Max. Peak Torque (N.m): 1.91-7.1

  • Rated Current (Arms): 2.5-4.0

  • Max. Current (Ao-p): 10.6-17.0

  • Rated Rotational Speed (r/min): 3000

  • Max. Rotational Speed (r/min): 4500-5000

  • Static Friction Torque (N.m): 1.27-2.45 or more

  • Engaging Time (ms): 50-70 or less

  • Releasing Time (ms): 15-20 or less

  • Exciting Current (DC) (A): 0.36-0.42

  • Releasing Voltage (DC) (V): 1 or more

  • Exciting Voltage (DC) (V): 24 ± 1.2%

  • Mass without Brake (kg): 0.96-2.5


Model No.: MHMD021G1A, MHMD021G1B, MHMD021G1C, MHMD021G1D, MHMD021G1U, MHMD021G1V, MHMD022G1A, MHMD022G1B, MHMD022G1C, MHMD022G1D, MHMD022G1U, MHMD022G1V, MHMD041G1A, MHMD041G1B, MHMD041G1C, MHMD041G1D, MHMD041G1U, MHMD041G1V, MHMD042G1A, MHMD042G1B, MHMD042G1C, MHMD042G1D, MHMD042G1U, MHMD042G1V, MHMD082G1A, MHMD082G1B, MHMD082G1C, MHMD082G1D, MHMD082G1U, MHMD082G1V


Catalog

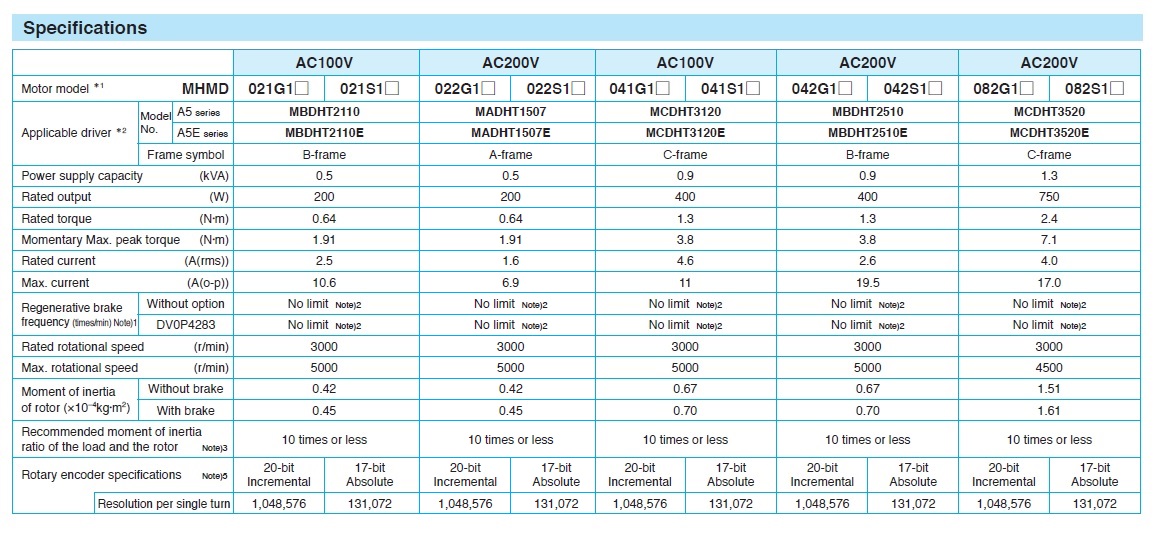

MHMD Specs

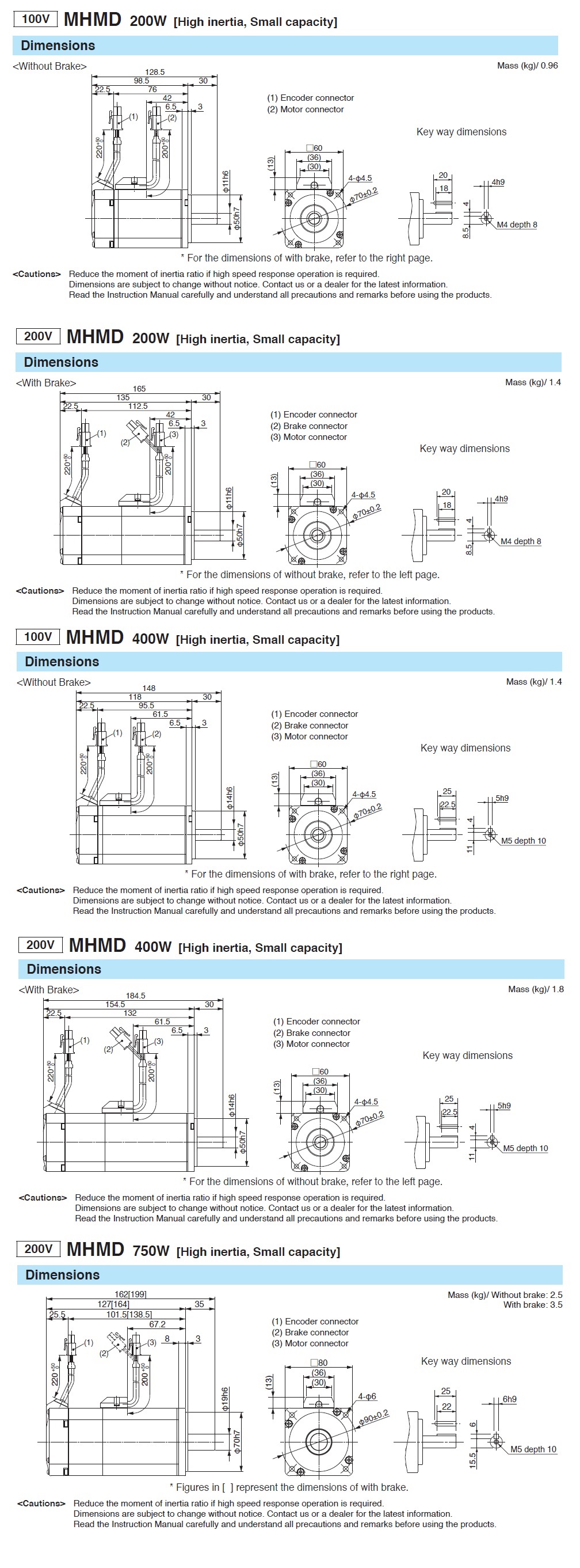

MHMD CAD

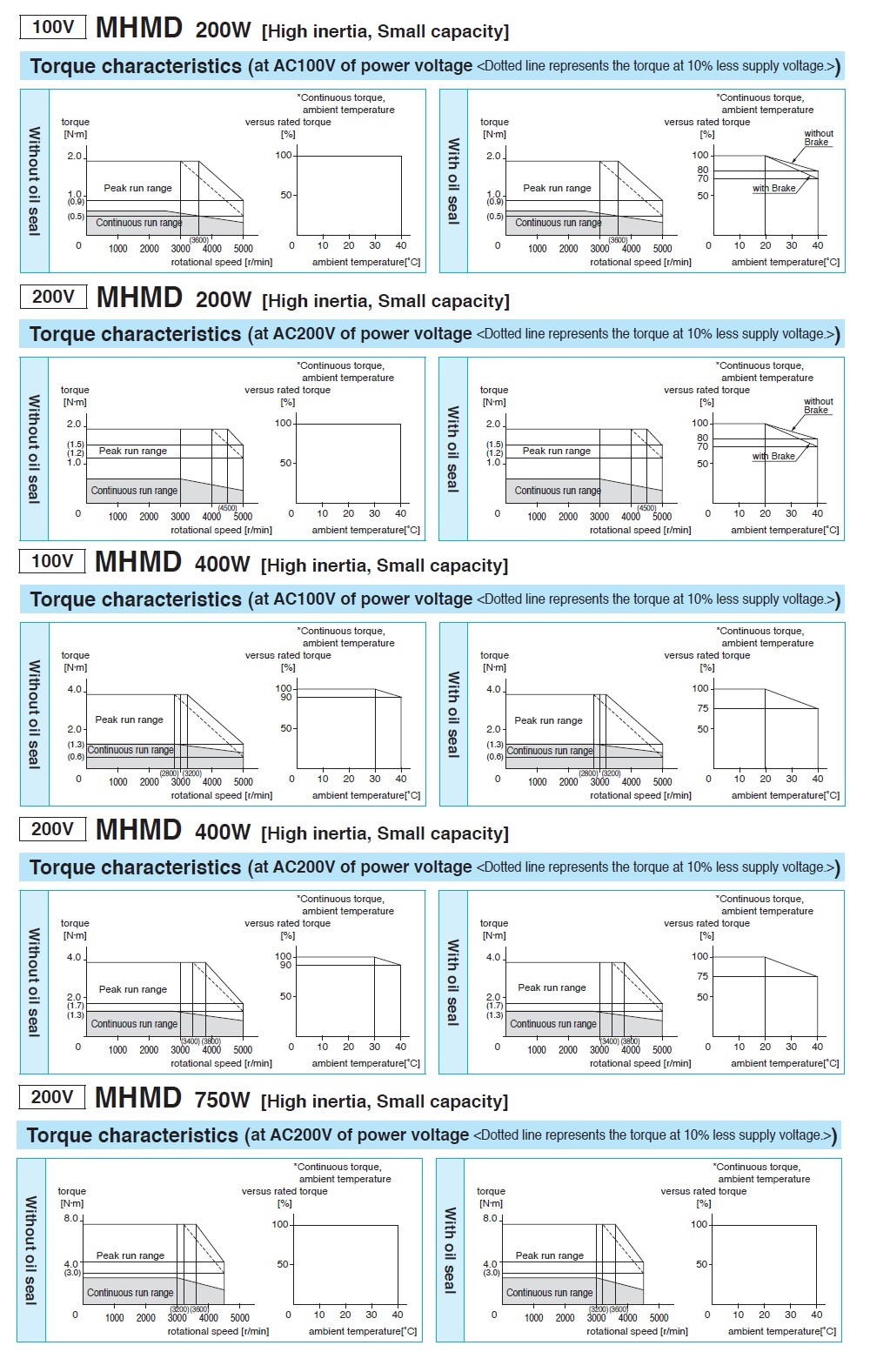

Torque Curves

Buying Guide
