FAULHABER: Encoders (ME2-16 Series)
FAULHABER: Encoders (ME2-16 Series)



Call for Pricing

Price Quote Form


Order #: ME2-16
.

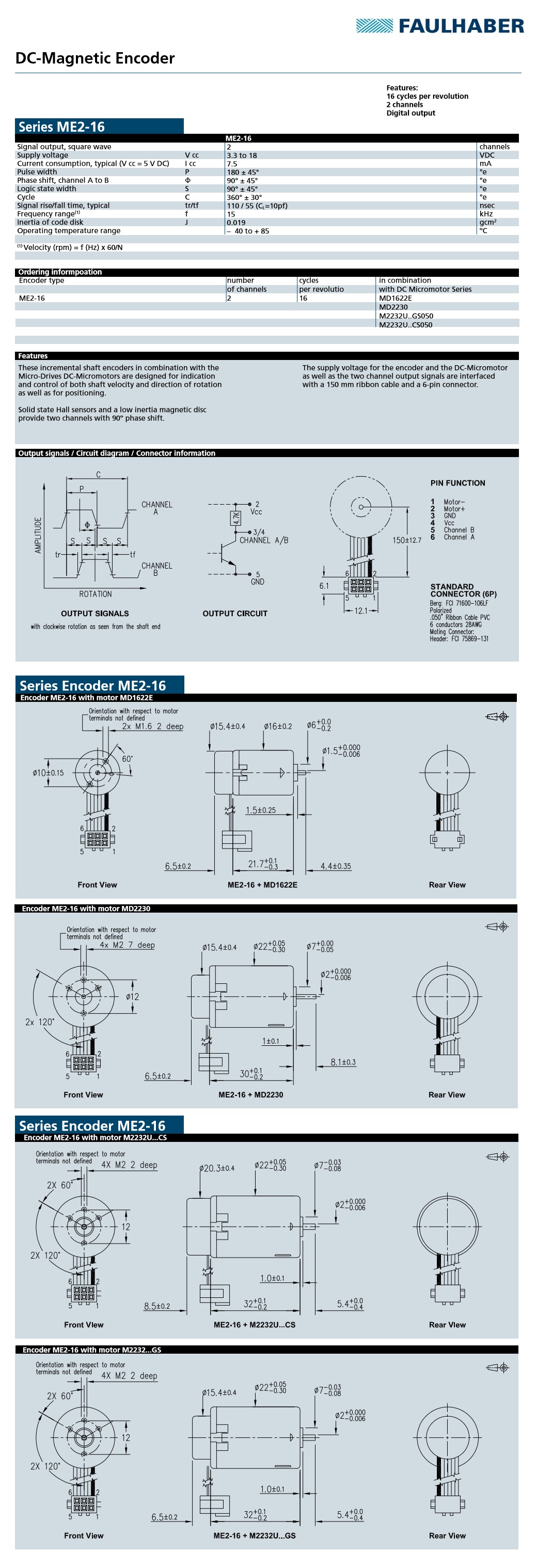

Description Specifications and Drawings


Faulhaber: Encoders (ME2-16 Series)

For higher resolution positioning and speed control, FAULHABER provides a wide range of encoders for combination with the complete portfolio of FAULHABER DC, brushless, and stepper motors.

2 and 3 Channel incremental magnetic and optical encoders with standard quadrature resolution from 16 to up to 1024 cpr or single turn absolute encoders with a resolution up to 4096 steps are available.

Specifications:

  • Diameter (mm):16

  • Construction: Magnetic

  • Resolution Cycles: 16

  • Number of Channels: 2

  • Signal Output: Digital

  • Supply Voltage (vdc): 3.3 - 18

  • Phase Shift (Degrees): 90 - 45
