Faulhaber: Micro-Drives DC Motors (MD1219 Series)
Faulhaber: Micro-Drives DC Motors (MD1219 Series)



Call for Pricing

Price Quote Form


Order #: MD1219


Model Number/Code*:

.

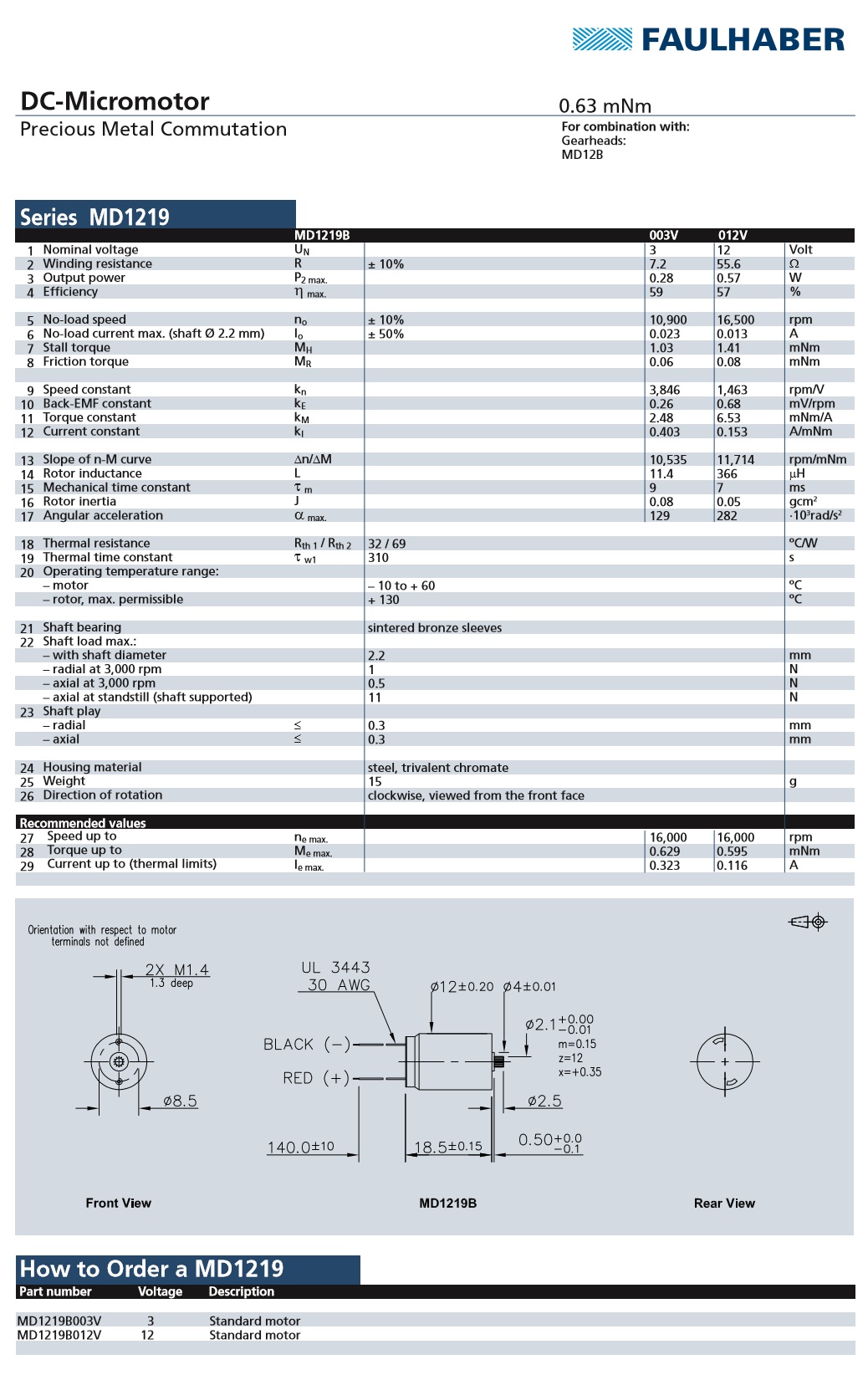

Description Specifications and Drawings


Faulhaber: Micro-Drives DC Motors (MD1219 Series)

Micro-Drives DC motors were designed to offer a cost-effective solution for challenging OEM applications where reliability and precision are vital. The micro DC motors are compact, lightweight and powerful.

Micro-Drives DC motors offer strong efficiencies and a high peak load through use of premium ferrite materials and optimized magnet systems. The DC motors are rated in power from 0.34 W to 100 W with mounting options for encoders and for planetary and spur gearheads with torque up to 10 Nm.

DC Micromotors feature:

  • High precision performance

  • Low brush contact resistance

  • Less power required

  • Graphite commutation achieves extended service life

Specifications:

  • Diameter (mm): 12

  • Length (mm): 18.5

  • Shaft Diameter (mm): 2.1

  • Nominal Voltage (V): 3 - 12

  • No-Load Speed (rpm):16,500

  • Rated Torque (mNm): 0.63

  • Output Power (Watt): 0.57

Model No.: MD1219B003V, MD1219B012V
