Faulhaber: Micro-Drives DC Motors (M3138U Series)

Micro-Drives DC motors were designed to offer a cost-effective solution for challenging OEM applications where reliability and precision are vital. The micro DC motors are compact, lightweight and powerful.

Micro-Drives DC motors offer strong efficiencies and a high peak load through use of premium ferrite materials and optimized magnet systems. The DC motors are rated in power from 0.34 W to 100 W with mounting options for encoders and for planetary and spur gearheads with torque up to 10 Nm.

DC Micromotors feature:

  • High precision performance

  • Low brush contact resistance

  • Less power required

  • Graphite commutation achieves extended service life

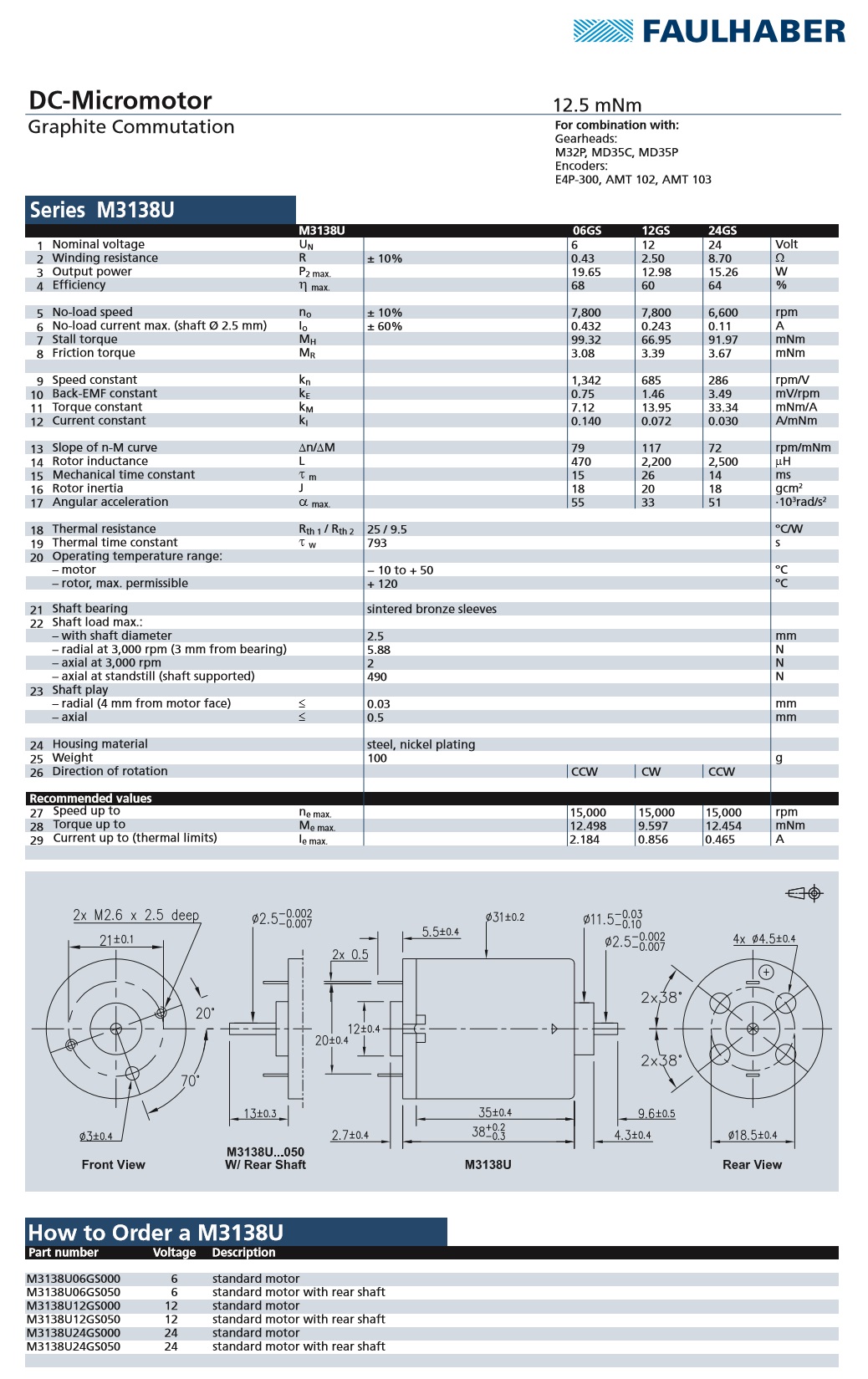

Specifications:

  • Diameter (mm): 31

  • Length (mm): 38

  • Shaft Diameter (mm): 2.5

  • Nominal Voltage (V): 6, 12, 24

  • No-Load Speed (rpm): 7,800

  • Rated Torque (mNm): 12.5

  • Output Power (Watt): 19.65

Model No.: M3138U06GS000, M3138U06GS050, M3138U12GS000, M3138U12GS050, M3138U24GS000, M3138U24GS050
