Faulhaber: Gearhead (M22P Series)
Faulhaber: Gearhead (M22P Series)



Call for Pricing

Price Quote Form


Order #: M22P


Model Number/Code*:

.


Description Specifications and Drawings


Faulhaber: Gearhead (M22P Series)

FAULHABER develops high performance modular gearheads to complement each of its motor technologies.

From high torque planetary technology in a variety materials, to zero backlash spur gears, FAULHABER has the right solution.

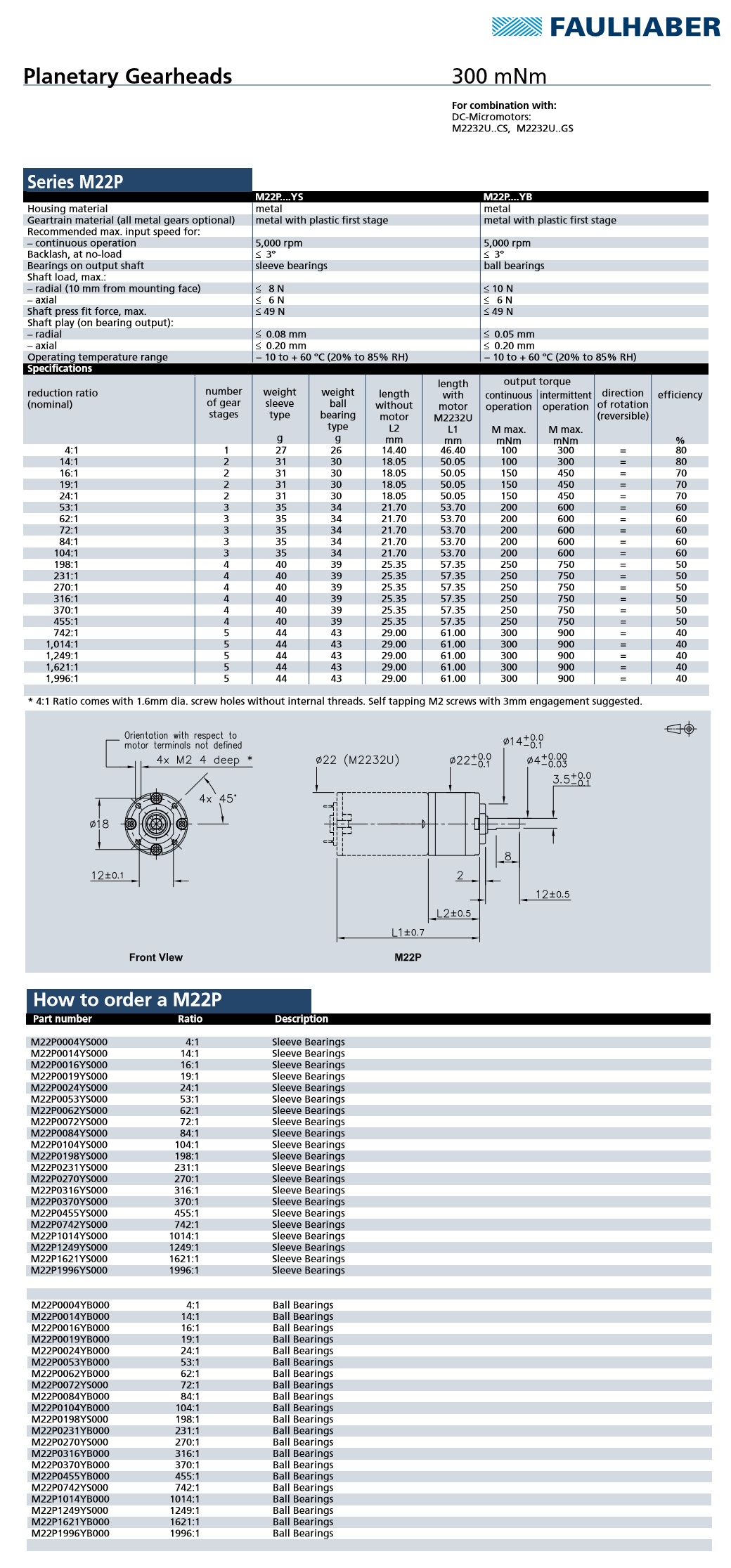

Specifications:

  • Diameter (mm): 22

  • Type: Planetary

  • Reduction Ratios: 4:1...621:1

  • Shaft Diameter (mm): 4

  • Torque Continuous (mNm): 300

  • Torque Intermittent (mNm): 900

Model No.: M22P0004YB000, M22P0004YS000, M22P0014YB000, M22P0014YS000, M22P0016YB000, M22P0016YS000, M22P0019YB000, M22P0019YS000, M22P0024YB000, M22P0024YS000, M22P0053YB000, M22P0053YS000, M22P0062YB000, M22P0062YS000, M22P0072YS000, M22P0072YS000, M22P0084YB000, M22P0084YS000, M22P0104YB000, M22P0104YS000, M22P0198YS000, M22P0198YS000, M22P0231YB000, M22P0231YS000, M22P0270YS000, M22P0270YS000, M22P0316YB000, M22P0316YS000, M22P0370YB000, M22P0370YS000, M22P0455YB000, M22P0455YS000, M22P0742YS000, M22P0742YS000, M22P1014YB000, M22P1014YS000, M22P1249YS000, M22P1249YS000, M22P1621YB000, M22P1621YS000, M22P1996YB000, M22P1996YS000
