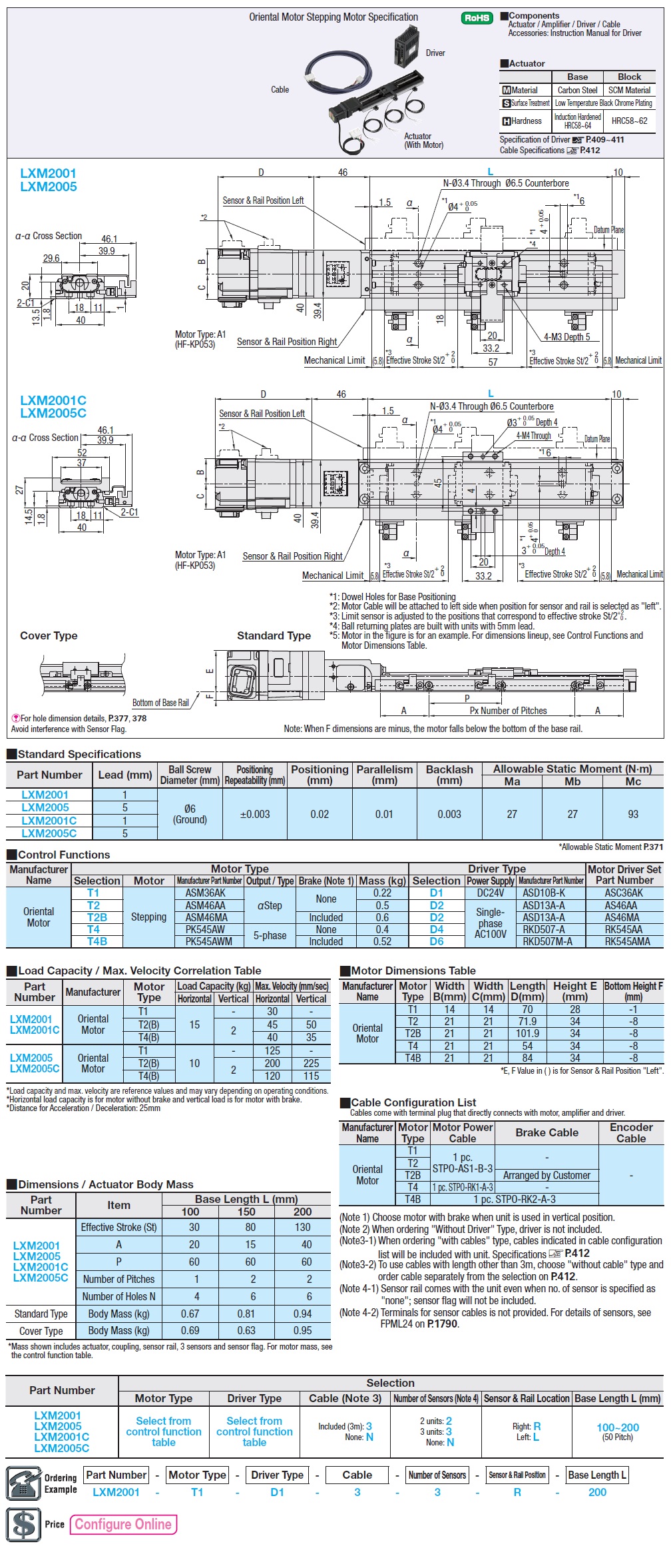

Description Specifications and Drawings


Misumi: Single Axis Actuators - w/Motor, Standard Type (LX20 Series)

Specifications:

  • Main Body, Peripheral Components

  • Nominal (Height): 20

  • Precision: Precision Grade

  • Table: -

  • Lead(mm): 1～5

  • Motor Mounting Orientation: Straight

  • Cover: Not Provided / Included

  • Grease: Standard

  • With or w/o Motors: Stepper Motor

  • With or w/o Lubricant Unit: Not Provided

  • Ball Screw Shaft Dia.(φ): 6

  • Table Length L1(mm): 33.2

  • Table Width W1(mm): 29.6～52

  • Amplifier Voltage: AC100V / DC24V

Model No.: LXM2001-T1-D1-3-2-L, LXM2001-T1-D1-3-2-R, LXM2001-T1-D1-3-3-L, LXM2001-T1-D1-3-3-R, LXM2001-T1-D1-3-N-L, LXM2001-T1-D1-3-N-R, LXM2001-T1-D1-N-2-L, LXM2001-T1-D1-N-2-R, LXM2001-T1-D1-N-3-L, LXM2001-T1-D1-N-3-R, LXM2001-T1-D1-N-N-L, LXM2001-T1-D1-N-N-R, LXM2001-T2-D2-3-2-L, LXM2001-T2-D2-3-2-R, LXM2001-T2-D2-3-3-L, LXM2001-T2-D2-3-3-R, LXM2001-T2-D2-3-N-L, LXM2001-T2-D2-3-N-R, LXM2001-T2-D2-N-2-L, LXM2001-T2-D2-N-2-R, LXM2001-T2-D2-N-3-L, LXM2001-T2-D2-N-3-R, LXM2001-T2-D2-N-N-L, LXM2001-T2-D2-N-N-R, LXM2001-T2B-D2-3-2-L, LXM2001-T2B-D2-3-2-R, LXM2001-T2B-D2-3-3-L, LXM2001-T2B-D2-3-3-R, LXM2001-T2B-D2-3-N-L, LXM2001-T2B-D2-3-N-R, LXM2001-T2B-D2-N-2-L, LXM2001-T2B-D2-N-2-R, LXM2001-T2B-D2-N-3-L

LXM2001-T2B-D2-N-3-R, LXM2001-T2B-D2-N-N-L, LXM2001-T2B-D2-N-N-R, LXM2001-T4-D4-3-2-L, LXM2001-T4-D4-3-2-R, LXM2001-T4-D4-3-3-L, LXM2001-T4-D4-3-3-R, LXM2001-T4-D4-3-N-L, LXM2001-T4-D4-3-N-R, LXM2001-T4-D4-N-2-L, LXM2001-T4-D4-N-2-R, LXM2001-T4-D4-N-3-L, LXM2001-T4-D4-N-3-R, LXM2001-T4-D4-N-N-L, LXM2001-T4-D4-N-N-R, LXM2001-T4B-D6-3-2-L, LXM2001-T4B-D6-3-2-R, LXM2001-T4B-D6-3-3-L, LXM2001-T4B-D6-3-3-R, LXM2001-T4B-D6-3-N-L, LXM2001-T4B-D6-3-N-R, LXM2001-T4B-D6-N-2-L, LXM2001-T4B-D6-N-2-R, LXM2001-T4B-D6-N-3-L, LXM2001-T4B-D6-N-3-R, LXM2001-T4B-D6-N-N-L, LXM2001-T4B-D6-N-N-R, LXM2001C-T1-D1-3-2-L
