Linear Voice Coil Actuators - Rectangular (LA15 Series)

BEI Kimco Voice Coil Actuators are ideally suited for such demanding applications as semiconductor equipment, defense systems and life-sustaining medical systems; Our voice coil actuators are direct drive, hysteresis-free, cog-free devices offering high-acceleration and “clean” technology. They deliver infinite position sensitivity, limited only by resolution of the feedback device. These units exhibit perfectly smooth force-versus stroke characteristics. New packaging and miniaturization capabilities offer the designer added flexibility without compromise. Units can be packaged for integrated assemblies including encoder, motor, switch or other functions to streamline operations and cost.

Rectangular voice coil actuators are un-housed and require a customer supplied alignment system. Rectangular voice actuators are typically used in long stroke applications. BEI Kimco’s range of rectangular VCA have strokes up to 4” and peak forces up to 149 lbs.

Most of our rectangular VCA's are custom designs (as seen in these pictures). Contact our sales office to inquire about custom designs.

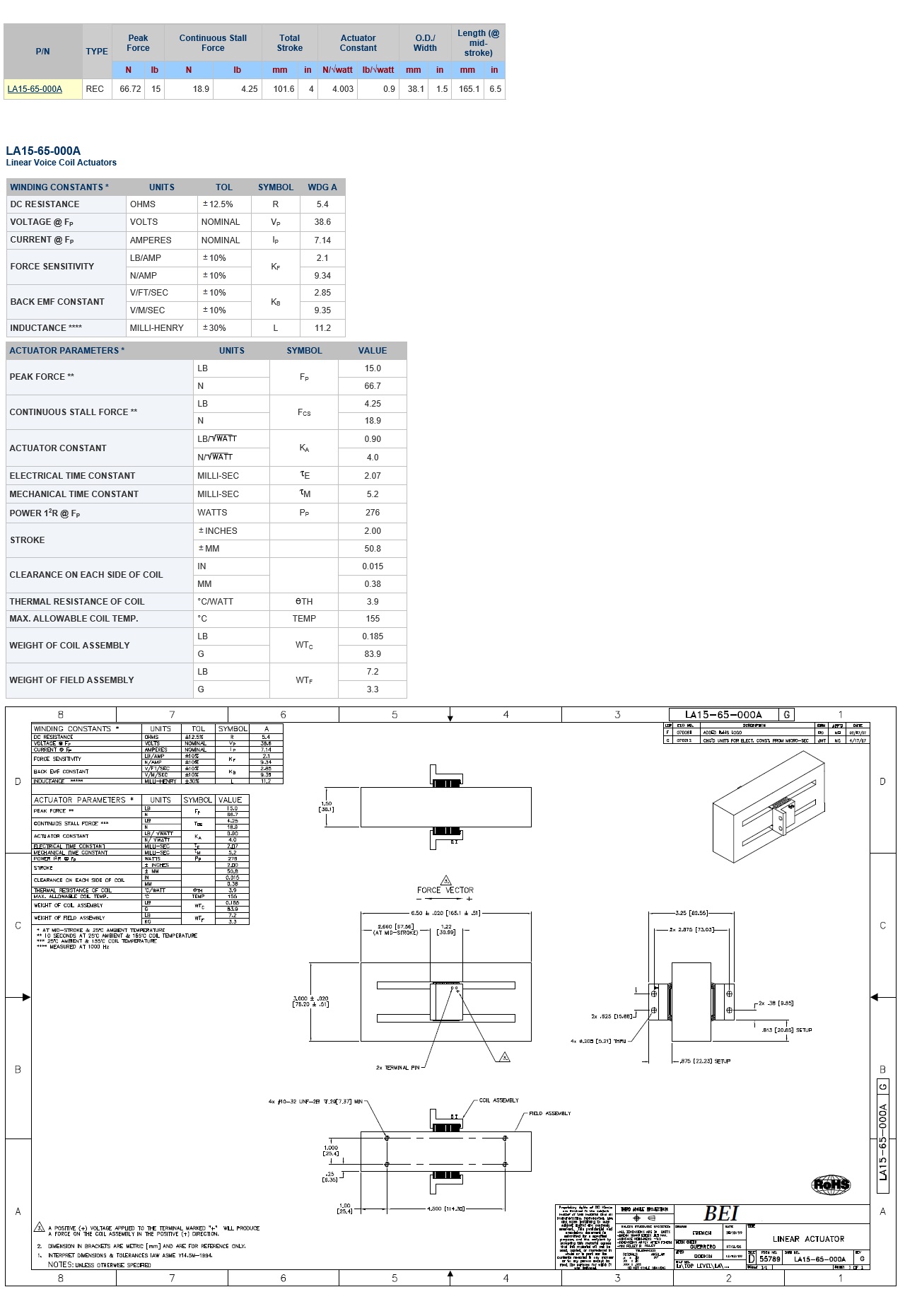

LA15-65-000A:

Peak Force (lbs.): 15

Continuous Stall Force (lbs.): 4.25

Total Stroke (in.): 4

Actuator Constant (lbs./watt): 0.9

O.D./Width (in.): 1.5

Length (in.): 6.5
