Komotek :1.5KW 220VAC Brushless Motor,with Encoder,KANS-15BF1
Komotek :1.5KW 220VAC Brushless Motor,with Encoder,KANS-15BF1



Price : $1,300.00

Price with Selected Options: $1,300.00


Availability: Usually Ships in 4 to 6 Weeks
Order #: KANS-15BF1


Options:

Qty:

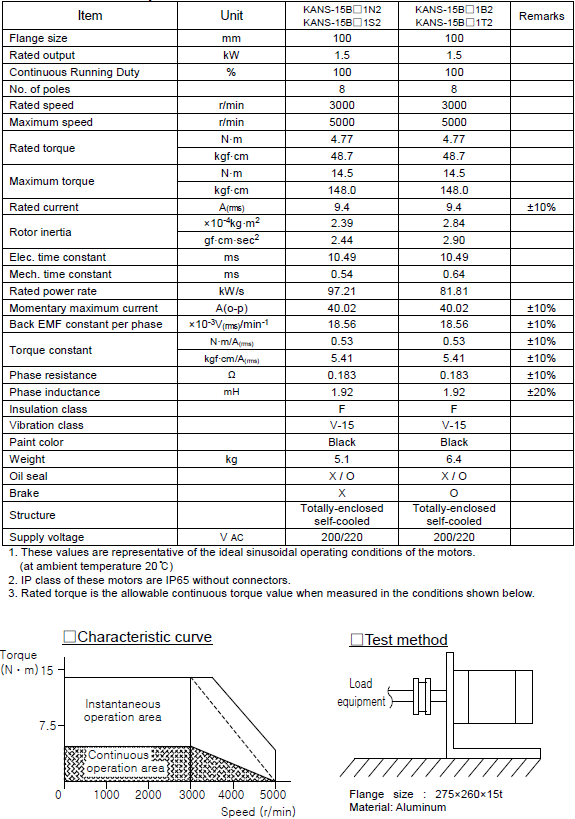

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KANSSeries can be applied to High frequency positioning equipments, Assembly robots, Welding robots, High speed precision tools..High speed, quick response servomotor
Minimization of cogging torque through magnet shape design.Minimization of torque ripple through core optimum shape design.

Motor Model:KANS-15BF1N2
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：220VAC
Motor Poles:8
Motor Rated Output:1500W
Motor Flange Size：100mm
Motor Rated Phase Current：9.4A
Motor Peak Phase Current:40.02A
Motor Rated Torque：4.77Nm
Motor Maximum Torque:14.5Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:5000RPM
Rotor inertia：18.56 x10-4kg·m2
Motor Feedback:2500LINES INCREMENTAL Encoder

Motor Model:KANS-15BF1B2
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：220VAC
Motor Poles:8
Motor Rated Output:1500W
Motor Flange Size：100mm
Motor Rated Phase Current：9.4A
Motor Peak Phase Current:40.02A
Motor Rated Torque：4.77Nm
Motor Maximum Torque:14.5Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:5000RPM
Rotor inertia：18.56 x10-4kg·m2
Motor Feedback:2500LINES INCREMENTAL Encoder
With Brake
