PIC-SERVO: PIC-I/O General Purpose I/O Chip (KAE-T2V1)
PIC-SERVO: PIC-I/O General Purpose I/O Chip (KAE-T2V1)



Alternate View
Call for Pricing

Price Quote Form


Order #: KAE-T2V1


Model Number/Code*:

.
Description Specifications and Drawings


PIC-SERVO: PIC-I/O General Purpose I/O Chip (KAE-T2V1)

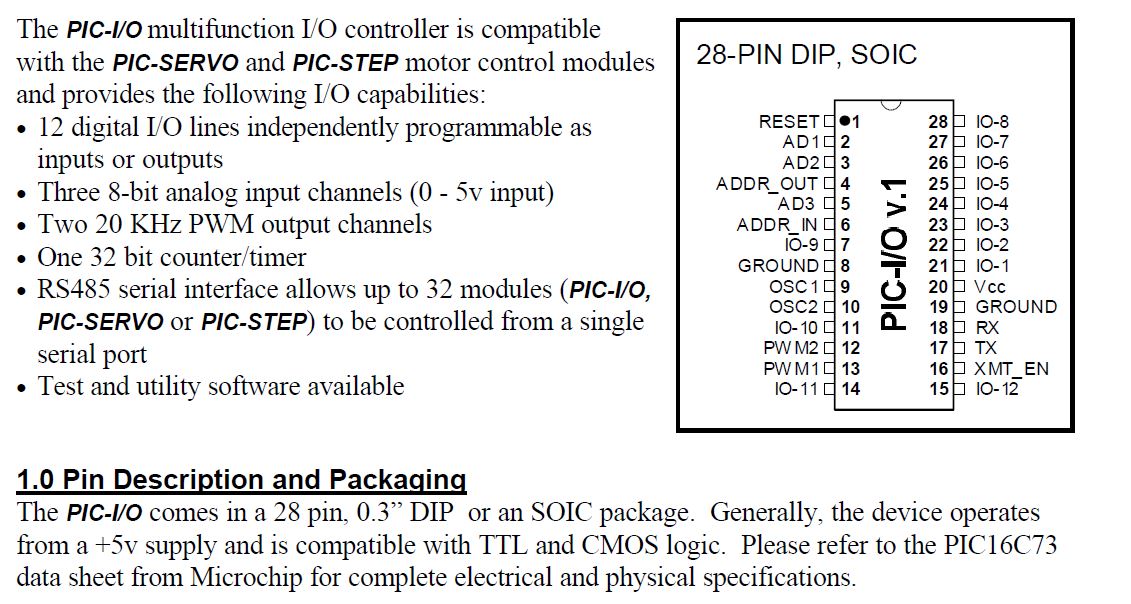

Packages: 28 pin, 0.3" DIP -or- SOIC


Specifications:

  • General Purpose I/O controller chip

  • 12 digital I/O pins programmable as inputs or outputs

  • Three 8-bit analog inputs

  • Two PWM output channels with high current (5 amp) drivers

  • One counter/timer channel

  • Serial interface can be used with RS232 or RS485 multi-drop communications

  • Complete documentation and example software available


Model No.: DIP Part #: KAE-T2V1-DP, SOIC Part #: KAE-T2V1-SO
