Faulhaber: High Power PMDC Motors (GNM 80 Series)
Faulhaber: High Power PMDC Motors (GNM 80 Series)



Call for Pricing

Price Quote Form


Order #: GNM-80


Model Number/Code*:

.

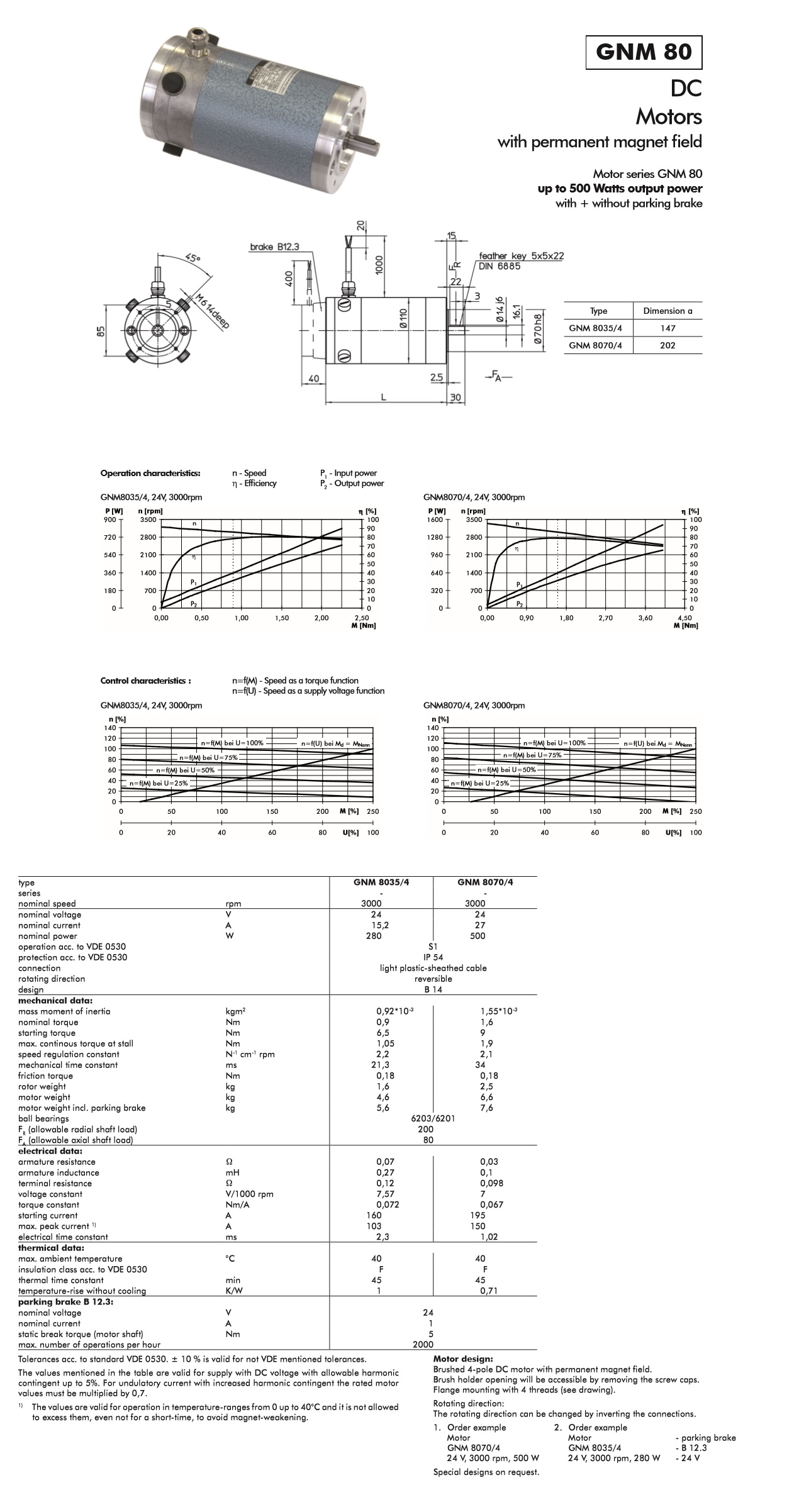

Description Specifications and Drawings


Faulhaber: High Power PMDC Motors (GNM 80 Series)

PMDC Motors are robustly engineered with a brushed 2-pole DC motors and permanent magnetic fields. Their industrial design, high variability and magnetic field allows for maximum efficiency.

GNM 8035/4 Series

Specifications:

  • Nominal Voltage (VDC): 24

  • Rated Current (ADC): 15.2

  • Nominal Torque (mNm): 0.9

  • Number of Revs: 3000

  • Nominal Power up to (Watts): 280

  • Outer Diameter (mm): 110

GNM 8070/4 Series

Specifications:

  • Nominal Voltage (VDC): 24

  • Rated Current (ADC): 27

  • Nominal Torque (mNm): 1.6

  • Number of Revs: 1600/3000

  • Nominal Power up to (Watts): 500

  • Outer Diameter (mm): 83
