MYCOM: Rotary Encoder (EC-F56x-10 Series)
MYCOM: Rotary Encoder (EC-F56x-10 Series)



Call for Pricing

Price Quote Form


Order #: EC-F56X-10


Model Number/Code*:

.

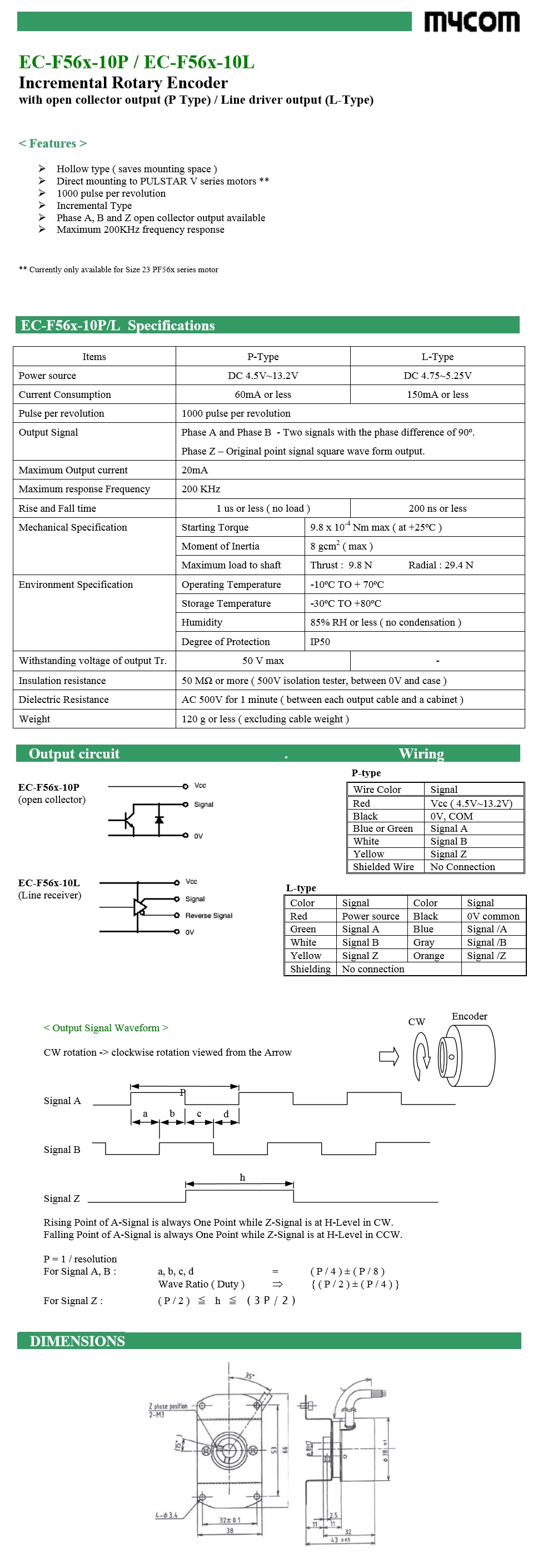

Description Specifications and Drawings


MYCOM: Rotary Encoder (EC-F56x-10 Series)

Incremental Rotary Encoder with open collector output (P Type)/Line driver output (L-Type)


Features:

  • Incremental type

  • For PF56x/ PCE56xx Motors

  • Hollow type (saves mounting space)

  • Direct mounting to PULSTAR V series motors **

  • 1000 pulse per revolution

  • Phase A, B and Z open collector output available

  • Maximum 200KHz frequency response


** Currently only available for Size 23 PF56x series motor

Model No.: EC-F56x-10L, EC-F56x-10P
