Delta: Industrial Ethernet Solution (DX-2100 Series)
Delta: Industrial Ethernet Solution (DX-2100 Series)



Price : $895.00


Availability: Please contact us at inquiry@e-motionsupply.com for availability (lead time).
Order #: DX-2100


Model Number/Code*:

Qty:
Description Specifications and Drawings


Delta: Industrial Ethernet Solution (DX-2100 Series)

Delta has just launched the Delta Industrial Ethernet Total Solution, which provides Ethernet products with enhanced hardware design, a user-friendly software interface, packet protection and compatibility with multiple industrial communication standards. With the rise of industrial automation technology and intelligent municipal engineering systems, the Ethernet, with its advantages of high speed, high stability and high compatibility, has become the most popular and widely used communication protocol. Based on Delta’s accumulated customer service experience and industrial know-how, the Delta Industrial Ethernet Total Solution helps customers construct an industrial Ethernet system that will satisfy their requirements in a wide range of applications. All of Delta’s Ethernet products are certified to UL, CE and FCC standards.

Industrial 3G Cloud Router

Features:

  • Data acquisition equipment connected to cloud servers.

  • Supports a two-way data collection channel between the device and the cloud

  • Sets up a secure tunnel between the user and the remote device via the cloud server, without the need of additional VPN servers

  • Supports MODBUS TCP and MODBUS RTU protocols

  • Using UMTS/HSPA+ 3G technology, supports a wide range of bands (800/850, 900, AWS1700, 1900, 2100 MHz), downward compatible with GSM / GPRS / EDGE 2G network

  • HSPA+ data transmission rate up to 21.6 Mbps (downlink) / 5.76Mbps (uplink)

  • Automatic APN parameter matching and connection redial

  • Various peripheral interfaces include RS-485, RS-232 and LAN ports

  • Built-in RTC and supports NTP time synchronization over a network

  • Firewall functions: Stateful Packet Inspection (SPI), Prevent Denial of Service (DoS) attacks, NAT, port triggering, port mapping, IP address filter, MAC address filter, URL filter

  • Supports TCP/IP, UDP, ICMP, DHCP, HTTP, DNS and SSH protocols

  • Scheduled jobs are available

  • Device configurations can be exported and imported.

  • Network data flow statistics

  • Networking failure diagnostics

  • Device and PLC interlocking

  • Custom alarm conditions with email alerts

  • Supports Android and iOS devices on-line monitoring

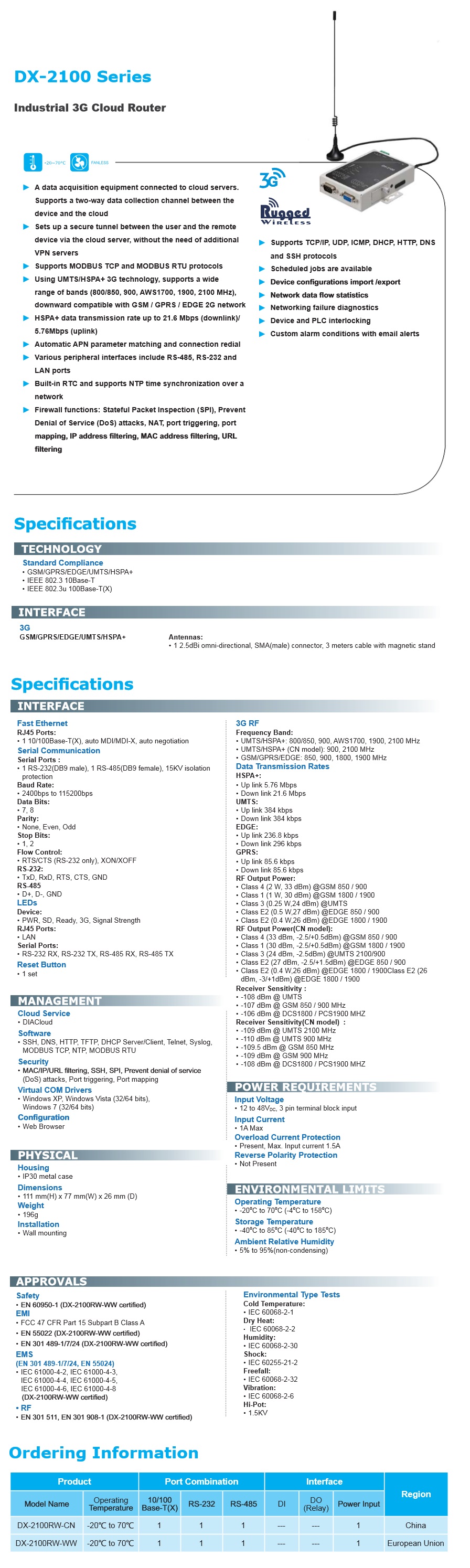

Specifications

Technology | Standard Compliance

  • GSM/GPRS/EDGE/UMTS/HSPA+

  • IEEE 802.3 10Base-T

  • IEEE 802.3u 100Base-T(X)

Interface

3G

  • GSM/GPRS/EDGE/UMTS/HSPA+

Antennas

  • 1 2.5dBi omni-directional, SMA(male) connector, 3 meters cable with magnetic stand

Fast Ethernet

  • RJ45 Ports: 1 10/100Base-T(X), auto MDI/MDI-X, auto negotiation

Serial Communication:

  • Serial Ports : 1 RS-232(DB9 male), 1 RS-485( DB9 female), 15KV isolation protection

  • Baud Rate: 2400bps to 115200bps

  • Data Bits: 7, 8

  • Parity: None, Even, Odd

  • Stop Bits: 1, 2

  • Flow Control: RTS/CTS(RS-232 only), XON/XOFF

  • RS-232: TxD, RxD, RTS, CTS, GND

  • RS-485: D+, D-, GND

LEDs

  • Device: PWR, SD, Ready, 3G, Signal Strength

  • RJ45 Ports: LAN

  • Serial Ports: RS-232 RX, RS-232 TX, RS-485 RX, RS-485 TX

Reset Button

  • 1set

3G RF | Frequency Band

  • UMTS/HSPA+: 800 / 850, 900, AWS1700 , 1900 , 2100 MHZ

  • UMTS/HSPA+(CN model): 900, 2100 MHZ

  • GSM/GPRS/EDGE: 850 / 900 / 1800 / 1900 MHz

Management

Cloud Service

  • DIACloud

Software

  • SSH, DNS, HTTP, TFTP, DHCP Server/Client, Telnet, Syslog, MODBUS TCP, NTP, MODBUS RTU

Security

  • MAC/IP/URL filtering, SSH, SPI, Prevent denial of service (DoS) attacks, Port triggering, Port mapping

Virtual COM Drivers

  • Windows XP, Windows Vista (32/64 bits), Windows 7 (32/64 bits)

Configuration

  • Web Browser, DIACom, Android APP, iOS APP

Power Requirements

  • Input Voltage: 12 to 48VDC, 3 pin terminal block input

  • Input Current : 1A Max.

  • Overload Current Protection: Present, Max. Input current 1.5A

  • Reverse Polarity Protection: Not Present

Physical

  • Housing: IP30 metal case

  • Dimensions: 111 mm(H) x 77 mm(W) x 26 mm (D)

  • Weight: 196g

  • Installation: Wall mounting

Environmental Limits

  • Operating Temperature : -20℃ to 70℃(-4℉ to 158℉)

  • Storage Temperature: -40℃ to 85℃(-40℉ to 185℉)

  • Ambient Relative Humidity: 5% to 95%(non-condensing)

Approvals

  • Safety: EN 60950-1(DX-2100RW-WW certified)

  • EMI: FCC 47 CFR Part 15 Subpart B Class A, EN 55022, EN 301 489-1/7/24 (DX-2100RW-WW certified)

  • EMS( EN 301 489-1/7/24, EN 55024): IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 (DX-2100RW-WW certified)

  • RF: EN 301 511, EN 301 908-1(DX-2100RW-WW certified)


Model No.: DX-2100RW-CN, DX-2100RW-WW
