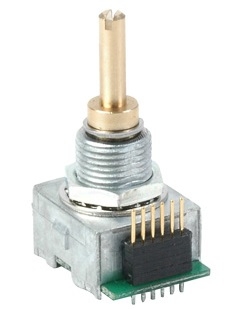

CUI: Optical Panel Incremental Encoders (C14 Series)
CUI: Optical Panel Incremental Encoders (C14 Series)



Call for Pricing

Price Quote Form


Order #: C14
.

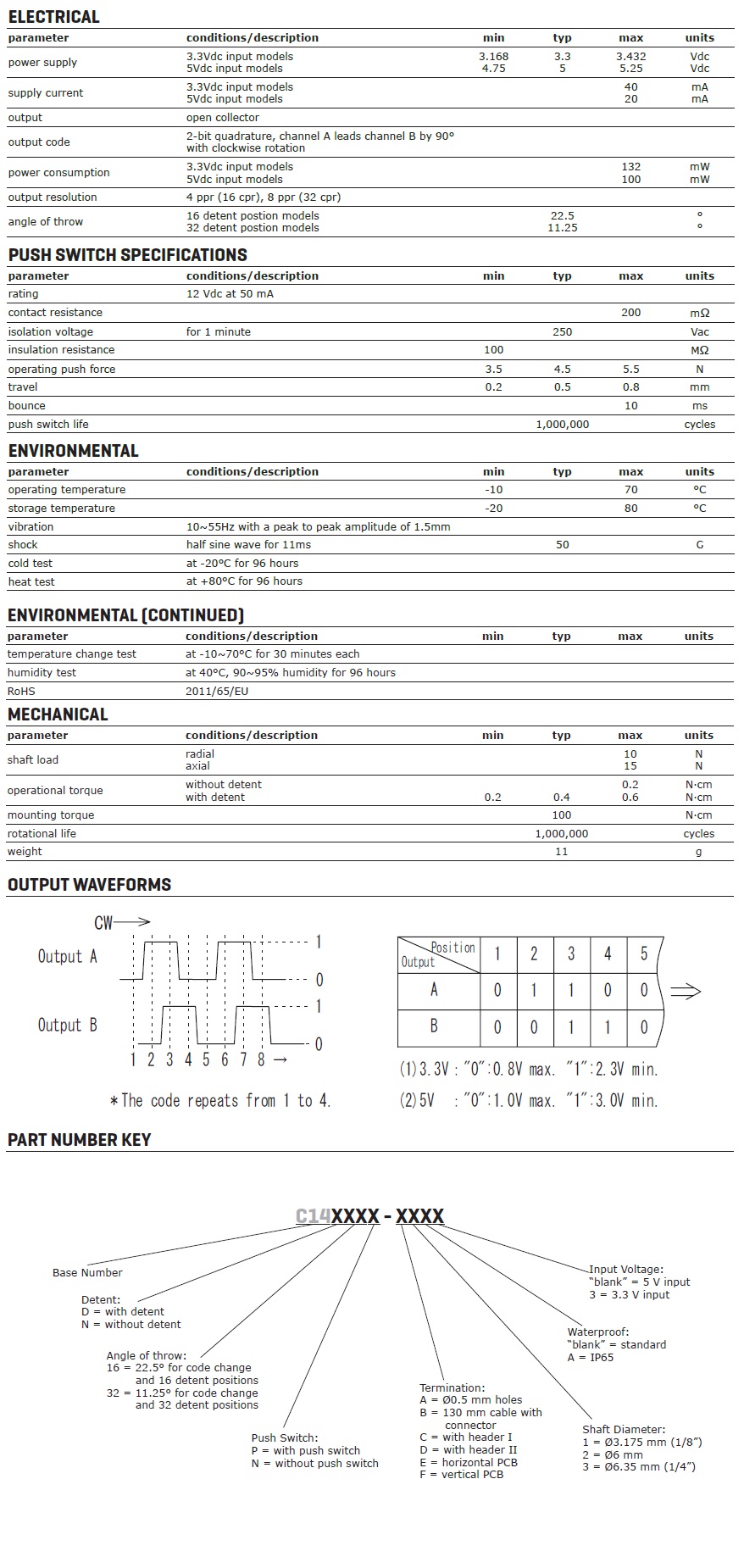

Description Specifications and Drawings


CUI: C14 Series
15 mm, 16 ~ 32 PPR, Metal Shaft, Push Switch, Sleeve Bearing, Optical Panel Mount Encoder

The C14 is a compact 2-bit quadrature optical panel mount encoder measuring 15 mm across. The body and shaft of the C14 feature metal construction, creating a rugged package that can be further protected with the optional IP65 rating. Available in over 30 configurations, the C14 series is built to last, featuring a rotational and push button life of 1,000,000 cycles.

Features:

  • 2-bit quadrature output

  • Compact

  • Rugged metal design

  • 1 million cycle life

  • Multiple termination options

Options:

  • 3.3 Vdc input

  • Detent

  • IP 65 rating

  • Push switch

Specifications:

  • Input Voltage (Vdc): 2.97 ~ 3.63

  • Shaft Length (mm): 17.5, 22

  • Shaft (Bore) Ø (mm): 3.175, 6, 6.35

  • Operating Temp. (°C): 0 ~ 60


Share your knowledge of this product. Be the first to write a review »
