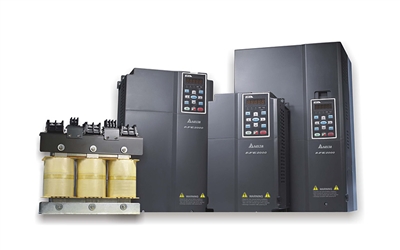

Delta: Power Management Active Front End (AFE2000 Series)
Delta: Power Management Active Front End (AFE2000 Series)




Price : $1,128.80

Price with Selected Options: $1,128.80


Order #: AFE2000


Options:

Qty:
Description Specifications and Drawings


Delta: Power Management Active Front End (AFE2000 Series)

With modern power electronics and advanced microprocessor technology, Delta's AC Motor Drives are able to efficiently control motor speed, improve machine automation and save energy. Taking advantage of our strong position in power electronics technology, Delta's VFD Series of AC motor Drives has evolved rapidly. Each Drive series is designed to meet specific application needs. Our AC Drives accurately control speed and torque, smoothly handle an increased load, and provide numerous custom control and configuration operating modes. Our AC Motor Drive product line provides a full range of motor control technologies and is used throughout a wide range of industries, to enhance and improve machine automation.

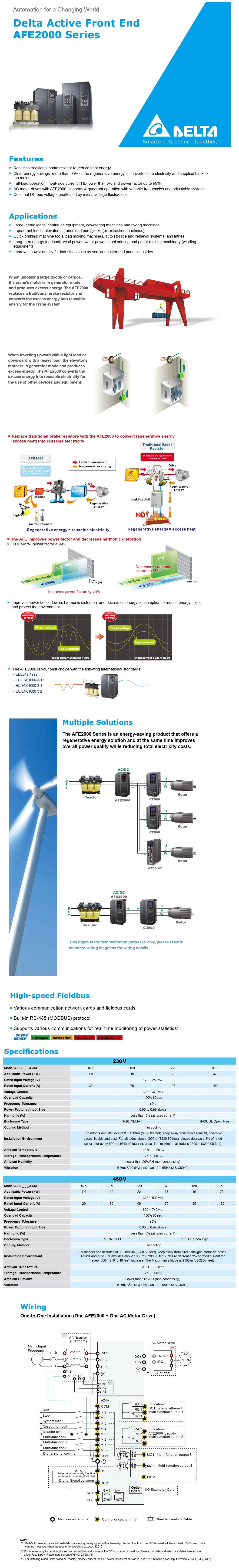

AFE2000 Series
Active Front End (AFE) is a controllable rectifier with advantages such as providing bidirectional power exchange between AC and DC power and regenerating reusable power to the mains to reduce the cost of power. The AFE uses PWM modulation to greatly reduce distinctive peaks of current and form perfect sine wave current. The power factor is corrected up to 1—the ratio between load capacity and power capacity is 1:1.In addition, the AFE eliminates high order harmonics, provides very low harmonic current THD<5% while improving the power factor, which allows you to save the cost of purchasing additional electrical equipment for better power quality,. The AFE also offers stable power quality unaffected from mains power fluctuations and can be applied to a serial connection.

Incorporating years of experience in AC motor drive development, Delta introduces the innovative AFE2000. This unit is designed for a wide range of applications and it achieves outstanding energy saving results. The AFE2000 does not dissipate excess heat into the air but converts it into reusable power that can be supplied back to the mains. The AFE2000 is yet another Delta product that contributes to improving efficiency and productivity and that fulfills our mission "to provide innovative, clean and efficient energy solutions for a better tomorrow".

Specifications:

  • Energy saving with AC/DC dual power flow control and corrects power factor up to 99%.

  • Replaces traditional braking resistor for cost savings, space savings, and energy savings.

  • PWM control substantially reduces peak of harmonic current wave and forms perfect sine wave current.

  • IEEE STD.519–1992 standard for harmonic current distortion of less than 5%.

  • Constant DC bus voltage that is not influenced by mains voltage fluctuation.

  • Supports multiple DC bus installation.

Applications:

  • Large-inertia load applications: roving machines, horizontal spiral centrifuges, drilling machines.

  • 4-quadrant load applications: cranes, cargo elevators, passenger elevators, oil production machines.

  • Quick brake applications: machine tools, high-speed spindles, bag making machines.

  • Long-term feedback energy applications: wind power systems and water power systems.

  • DC power supply applications: logistics and storage systems, wind power systems, LED lighting systems.

  • Provides excellent power quality for the communication transmission systems of Power Line products.

  • Overhead Traveling Crane

  • Elevator

Options:
  • Active Front End, 230V, AFE075A23A, Active Front End, 230V, AFE150A23A, Active Front End, 230V, AFE220A23A,
  • Active Front End, 230V, AFE370A23A,
  • Active Front End, 460V, AFE075A43A, Active Front End, 460V, AFE150A43A, Active Front End, 460V, AFE220A43A,
  • Active Front End, 460V, AFE370A43A, Active Front End, 460V, AFE450A43A, Active Front End, 460V, AFE750A43A
