FAULHABER: Encoders (AESM-4096 Series)
FAULHABER: Encoders (AESM-4096 Series)



Alternate View


Call for Pricing

Price Quote Form


Order #: AESM-4096
.

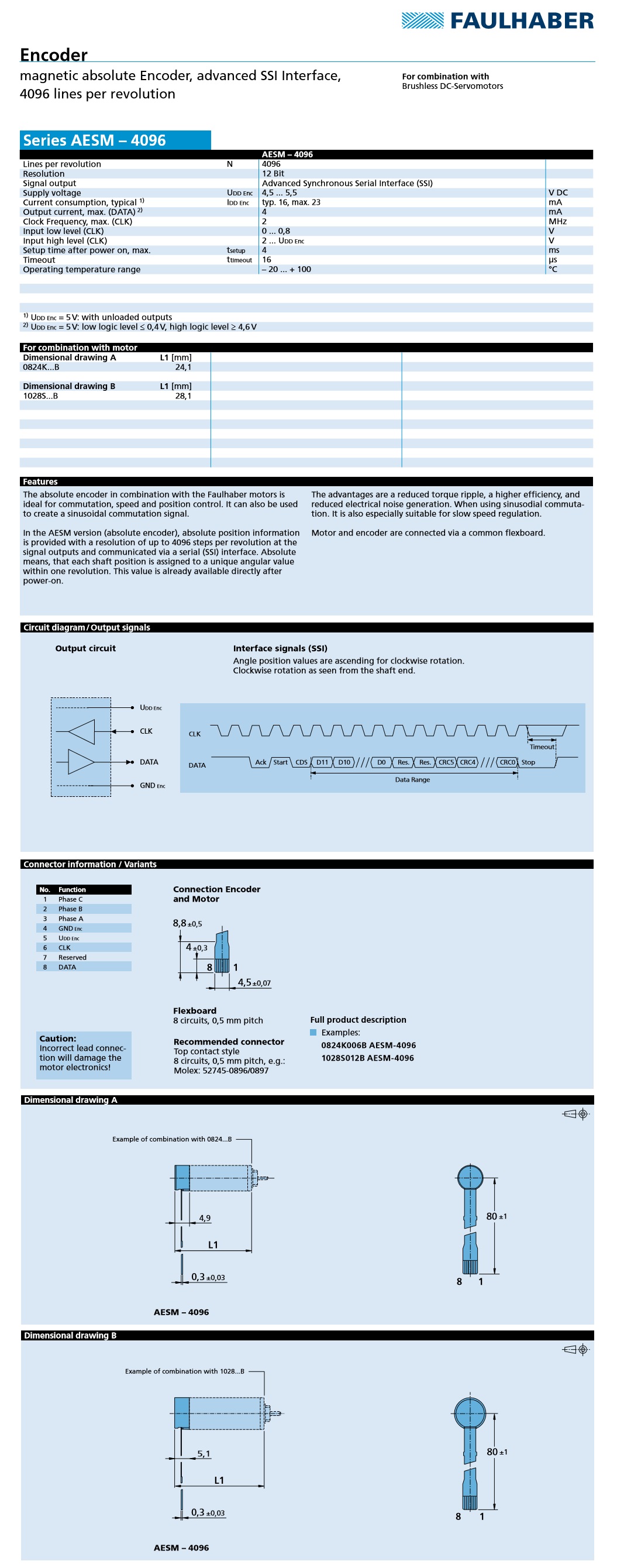

Description Specifications and Drawings


FAULHABER: Encoders (AESM-4096 Series)

Absolute encoder

The absolute encoder in combination with the FAULHABER DC-Motors is ideal for commutation, speed and position control.

Absolute means, that each shaft position is assigned to a unique angular value within one revolution.

It can also be used to create a sinusoidal commutation signal.

Specifications:

  • Dimension (mm): Ø8 x 4.9

  • Technology: Magnetic

  • Pulse per Revolution: 4,096

  • Signal Output: Synchronous Serial Interface (SSI)
