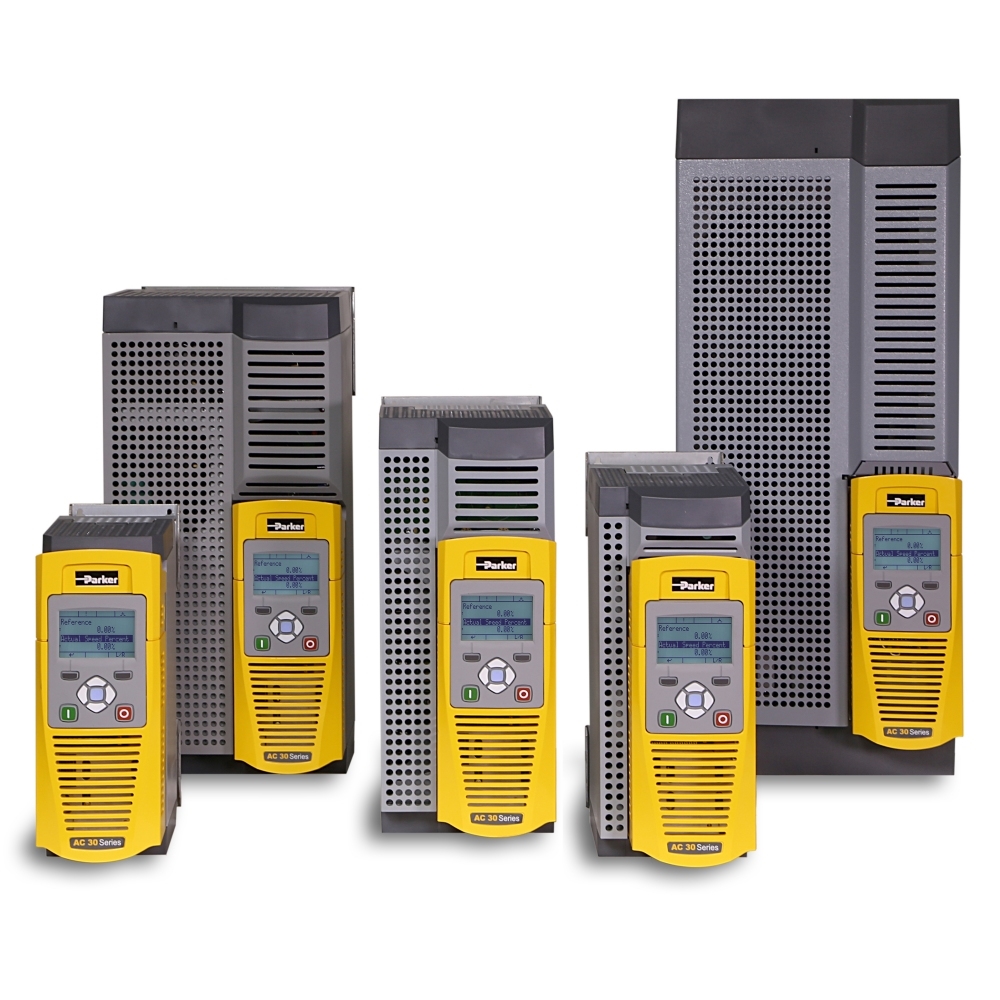

Parker: AC Drives (AC30 Series)

Parker offers a full range of drives including stepper, compact and high performance servo, AC variable speed, high current output DC and panel mounted drives. Parker industry leading drives include Sensorless, Vector and Microstepping options. Parker drives are suitable for speed, torque or position control and are available in power ranges from fractional to over 2,000 hp. Parker also offers inverters for renewable energy applications that convert DC power to AC electricity and deliver power to the grid, allowing hybrid vehicles and mobile equipment that convert regenerated power to battery storage to reduce fuel consumption and emissions.


AC Variable Frequency Drives, HP Rated - AC30 Series

The AC30 provides users with exceptional levels of control for pump, fan and general purpose applications up to 100HP. Its flexible and highly modular construction enables a wide range of communication and I/O modules to be easily added as required.


The AC30 drive has been designed to provide users with exceptional levels of control for pump, fan and general purpose applications. Its flexible and highly modular construction enables a wide range of communications and I/O modules to be easily added as required. The AC30V has been designed with simplicity in mind, but this doesn't compromise its functionality. Integrated macros for a range of applications and PLC functionality enable more capable users to create sophisticated control that would previously have required a separate PLC. Designed for operation in environment class 3C3 and 3C4 for Hydrogen Sulfide (H2S) as standard (tested at 25ppm for 1200 hours), temperatures up to 122°F with optional integrated EMC filter to C2 1st environment and DC choke to reduce line harmonics. The AC30V also Complies with RoHS substance restrictions in accordance with EC Directive 2011/65/EU.


Features


Flexibility:

  • Suitable for operation with AC induction and Permanent Magnet AC (PMAC) servo motors

  • Ethernet TCP/IP as standard

  • I/O expansion options

  • Support for popular industrial fieldbuses

  • Chassis or through-panel mount as standard


Simplicity:

  • Parker Drive Quicktool (PDQ) drive management software tool

  • Multi-language graphical keypad

  • Quick start wizards

  • Terminal covers removable with drive in-situ


Reliability:

  • Conformally coated for harsh environment protection as standard

  • Spring clamp control terminal connections

  • Isolated power stack cooling with removable fan


Designed to put you in control of your energy savings:

AC30 is supplied complete with useful features designed to simplify pump and fan control. In addition to quick setup, dedicated pump and fan macros, there are a number of other features dedicated to energy-saving pump and fan control such as:


Automatic belt breakage detection: Interactive monitoring of the running conditions of a fan allows AC30 to detect a breakage in the drive belt between the fan and motor, stop the motor and indicate an alarm condition.


Catching a spinning load - ""fly-catching"" : The fan control algorithms enable the AC30 to detect when a fan is free-wheeling and to regain control of it before running it at the commanded speed.


PID Control: Multiple PID control loops can be programmed to monitor process variables and adjust the speed of the motor accordingly to achieve the required variable setpoint.

Intelligent Pump Profiles: Our advanced intelligent pump control algorithms monitor motor loads and provides users with a number of features designed specifically for pump control applications, such as:

  • Pump dry running protection

  • Flow detection (low and no-flow)

  • Blocked pump detection


Essential services (Fire mode) : Selected via digital input, Fire mode will cause the drive to run continuously at the maximum programmed speed ignoring all other control signals and alarm conditions.


Energy Optimization: Under constant speed conditions, the motor power waveforms from the drive are optimized to reduce motor energy consumption without compromising performance.


Skip Frequencies: Up to 4 speed and frequency bands can be programmed in the AC30, to enable resonant points on the fan to be avoided, reducing vibration, wear and noise.


Timed Run Function : 10 daily start/stop events can be programmed with different running speeds across a 7 day period. This function requires the optional Real Time Clock (RTC) module and is ideally suited to applications where regular operating patterns or periods of activity need to be accommodated, such as in a production environment.


Process Timers: Multiple hours-run timers can be programmed to generate text alerts on the drive keypad to coincide with process maintenance intervals.


Parker Drive Quicktool (PDQ) Software:
PDQ is a programming, monitoring and diagnostic software platform for AC30 series variable speed drives. Communication between the drive and PC is via the in-built Ethernet port at the top of of the drive. The software will automatically detect all AC30s connected to the Ethernet network. A number of wizards guide users through every aspect of using the software:

  • Setup wizards guide the user through every stage of commissioning a new drive, or reconfiguring an existing drive; from selecting a motor from the supplied database, or entering specific motor data, through to configuring application macro's or control logic to suit your specific application.

  • Tuning wizards allow technicians to monitor and adjust drive parameters in either a simple predefined environment or an advanced mode which allows access to every parameter in the drive.


Standards:
The AC30 Series AC drives listed on this page meet the following standards when installed in accordance with the relevant product manual:

  • Overvoltage Category: Overvoltage category III (numeral defining an impulse withstand level)


Pollution Degree:

  • Pollution Degree II ( non-conductive pollution, except for temporary condensation) for control electronics

  • Pollution Degree III (dirty air rating) for through-panel mounted parts

North America/Canada: Complies with the requirements of UL508C and CSA22.2 #14 as an open-type drive

Europe: This product conforms with the Low Voltage Directive 2006/95/EC

EMC Compatibility: CE Marked in accordance with 2004/108/EC (EMC Directive)

RoHS Compliance: This product complies with RoHS substance restrictions in accordance with EC Directive 2011/65/EU


Technical Specifications

Power Supply:

  • Three Phase Units (1 to 100HP)

  • 380-480VAC ±10%, 45-65 Hz


Earth Leakage Current:

  • >10 mA (all models)


Input Power Factor:

  • 0.94


Environment:

  • 32-104°F Normal Duty / 32-113°F Heavy Duty / derate up to 122°F max

  • Up to 1000m ASL (derate > 1000m)


Product Enclosure Rating:

  • IP20 - remainder of surfaces (Europe)

  • UL (c-UL) Open Type (North America/Canada)

  • [Cubicle mounted] : IP20 UL (c-UL) Open Type (North America/Canada)

  • [Through-panel mounted] : IP20 UL (c-UL) Open Type (North America/Canada)


Overload:

  • Heavy Duty : 150 % for 60 seconds - 180% for 3 seconds

  • Normal Duty : 110 % for 60 seconds - 180% of HD FLC. for 3 seconds


Maximum Switching Frequency:

  • 4 kHz up to maximum of 16 kHz (de-rating may apply)


Output Frequencies:

  • 0 - 500 Hz at 4 kHz switching frequency

  • 0 - 590 Hz at 8 kHz switching frequency

  • 0 - 590 Hz at 12 kHz switching frequency


Operating Humidity:

  • Maximum 85 % relative humidity at 40 °C non-condensing


Atmosphere:

  • Non-flammable, non-corrosive and dust free


Climatic Conditions:

  • Class 3k3, as defined by EN60721-3-3


Chemically Active Substances:

For the standard product, compliance with EN60271-3-3 is:

  • Both classes 3C3 and 3C4 for Hydrogen Sulfide gas (H2S) at a concentration of 25ppm for 1200 hours

  • Both classes 3C1 (rural) and 3C2 (urban) for all 9 defined substances as defined in table 4


Operating Vibration:

  • Test Fc of EN60068-2-6

  • 10 Hz<=f<=57 Hz sinusoidal 0.075 mm amplitude

  • 57 Hz<=f<=150 Hz sinusoidal 1 g

  • 10 sweep cycles per axis on each of three mutually perpendicular axis


Performance Characteristics:

  • Output Rating (HP): 1.5 - 100HP

  • Input Voltage: 3*380-480VAC

  • Operating Control Modes: V/Hz | Sensorless Vector | Speed Control of Permanent Magnet Motor

  • Communication Interface: RS232 / RS485 | CANopen | ControlNet | DeviceNet | Profibus | Profinet | Ethernet TCP / IP | EtherCAT | Modbus | BACnet IP | BACnet MSTP | CC-Link

  • Certificates: CE (EMC & LVD) | UL Listed | cUL Listed | RoHS Compliance | Overvoltage Category III | Pollution Degree II | Pollution Degree III

  • Operating Temperature (C): 0-40C Normal Duty / 0-45C Heavy Duty (derate up to 50C max)

  • Operating Temperature (F): 32-104F Normal Duty / 32-113F Heavy Duty (derate up to 122F max)

  • Operating Altitude: Up to 1000m ASL (derate > 1000m)

  • Overload Ratings: Heavy Duty Rating (Constant Torque) : 150% for 60s / 180% for 3s | Normal Duty Rating (Variable Torque) : 110% for 60s / 180% of HD FLC. for 3s

Model Numbers:
31V-4D004-BE-0E-0000, 31V-4D0004-BE-0S-0000, 31V-4D0004-BE-1E-0000, 31V-4D0004-BE-1S-0000, 31V-4D0004-BE-2E-0000, 31V-4D0004-BE-2S-0000, 31V-4D0004-BF-0E-0000, 31V-4D0004-BF-0S-0000, 31V-4D0004-BF-1E-0000, 31V-4D0004-BF-1S-0000, 31V-4D0004-BF-2E-0000, 31V-4D0004-BF-2S-0000, 31V-4D0004-BN-0E-0000, 31V-4D0004-BN-0S-0000, 31V-4D0004-BN-1E-0000, 31V-4D0004-BN-1S-0000, 31V-4D0004-BN-2E-0000, 31V-4D0004-BN-2S-0000, 31V-4D0005-BE-0E-0000, 31V-4D0005-BE-0S-0000, 31V-4D0005-BE-1E-0000, 31V-4D0005-BE-1S-0000, 31V-4D0005-BE-2E-0000, 31V-4D0005-BE-2S-0000, 31V-4D0005-BF-0E-0000, 31V-4D0005-BF-0S-0000, 31V-4D0005-BF-1E-0000, 31V-4D0005-BF-1S-0000, 31V-4D0005-BF-2E-0000, 31V-4D0005-BF-2S-0000, 31V-4D0005-BN-0E-0000, 31V-4D0005-BN-0S-0000, 31V-4D0005-BN-1E-0000, 31V-4D0005-BN-1S-0000, 31V-4D0005-BN-2E-0000, 31V-4D0005-BN-2S-0000, 31V-4D0006-BE-0E-0000, 31V-4D0006-BE-0S-0000, 31V-4D0006-BE-1E-0000, 31V-4D0006-BE-1S-0000, 31V-4D0006-BE-2E-0000, 31V-4D0006-BE-2S-0000, 31V-4D0006-BF-0E-0000, 31V-4D0006-BF-0S-0000, 31V-4D0006-BF-1E-0000, 31V-4D0006-BF-1S-0000, 31V-4D0006-BF-2E-0000, 31V-4D0006-BF-2S-0000, 31V-4D0006-BN-0E-0000, 31V-4D0006-BN-0S-0000, 31V-4D0006-BN-1E-0000, 31V-4D0006-BN-1S-0000, 31V-4D0006-BN-2E-0000, 31V-4D0006-BN-2S-0000, 31V-4D0008-BE-0E-0000, 31V-4D0008-BE-0S-0000, 31V-4D0008-BE-1E-0000, 31V-4D0008-BE-1S-0000, 31V-4D0008-BE-2E-0000, 31V-4D0008-BE-2S-0000, 31V-4D0008-BF-0E-0000, 31V-4D0008-BF-0S-0000, 31V-4D0008-BF-1E-0000, 31V-4D0008-BF-1S-0000, 31V-4D0008-BF-2E-0000, 31V-4D0008-BF-2S-0000, 31V-4D0008-BN-0E-0000, 31V-4D0008-BN-0S-0000, 31V-4D0008-BN-1E-0000, 31V-4D0008-BN-1S-0000, 31V-4D0008-BN-2E-0000, 31V-4D0008-BN-2S-0000, 31V-4D0010-BE-0E-0000, 31V-4D0010-BE-0S-0000, 31V-4D0010-BE-1E-0000, 31V-4D0010-BE-1S-0000, 31V-4D0010-BE-2E-0000, 31V-4D0010-BE-2S-0000, 31V-4D0010-BF-0E-0000, 31V-4D0010-BF-0S-0000, 31V-4D0010-BF-1E-0000, 31V-4D0010-BF-1S-0000, 31V-4D0010-BF-2E-0000, 31V-4D0010-BF-2S-0000, 31V-4D0010-BN-0E-0000, 31V-4D0010-BN-0S-0000, 31V-4D0010-BN-1E-0000, 31V-4D0010-BN-1S-0000, 31V-4D0010-BN-2E-0000, 31V-4D0010-BN-2S-0000, 31V-4D0012-BE-0E-0000, 31V-4D0012-BE-0S-0000, 31V-4D0012-BE-1E-0000, 31V-4D0012-BE-1S-0000, 31V-4D0012-BE-2E-0000, 31V-4D0012-BE-2S-0000, 31V-4D0012-BF-0E-0000, 31V-4D0012-BF-0S-0000, 31V-4D0012-BF-1E-0000, 31V-4D0012-BF-1S-0000, 31V-4D0012-BF-2E-0000, 31V-4D0012-BF-2S-0000, 31V-4D0012-BN-0E-0000, 31V-4D0012-BN-0S-0000, 31V-4D0012-BN-1E-0000, 31V-4D0012-BN-1S-0000, 31V-4D0012-BN-2E-0000, 31V-4D0012-BN-2S-0000, 31V-4E0016-BE-0E-0000, 31V-4E0016-BE-0S-0000, 31V-4E0016-BE-1E-0000, 31V-4E0016-BE-1S-0000, 31V-4E0016-BE-2E-0000, 31V-4E0016-BE-2S-0000, 31V-4E0016-BF-0E-0000, 31V-4E0016-BF-0S-0000, 31V-4E0016-BF-1E-0000, 31V-4E0016-BF-1S-0000, 31V-4E0016-BF-2E-0000, 31V-4E0016-BF-2S-0000, 31V-4E0016-BN-0E-0000, 31V-4E0016-BN-0S-0000, 31V-4E0016-BN-1E-0000, 31V-4E0016-BN-1S-0000, 31V-4E0016-BN-2E-0000, 31V-4E0016-BN-2S-0000, 31V-4E0023-BE-0E-0000, 31V-4E0023-BE-0S-0000, 31V-4E0023-BE-1E-0000, 31V-4E0023-BE-1S-0000, 31V-4E0023-BE-2E-0000, 31V-4E0023-BE-2S-0000, 31V-4E0023-BF-0E-0000, 31V-4E0023-BF-0S-0000, 31V-4E0023-BF-1E-0000, 31V-4E0023-BF-1S-0000, 31V-4E0023-BF-2E-0000, 31V-4E0023-BF-2S-0000, 31V-4E0023-BN-0E-0000, 31V-4E0023-BN-0S-0000, 31V-4E0023-BN-1E-0000, 31V-4E0023-BN-1S-0000, 31V-4E0023-BN-2E-0000, 31V-4E0023-BN-2S-0000, 31V-4F0032-BE-0E-0000, 31V-4F0032-BE-0S-0000, 31V-4F0032-BE-1E-0000, 31V-4F0032-BE-1S-0000, 31V-4F0032-BE-2E-0000, 31V-4F0032-BE-2S-0000, 31V-4F0032-BF-0E-0000, 31V-4F0032-BF-0S-0000, 31V-4F0032-BF-1E-0000, 31V-4F0032-BF-1S-0000, 31V-4F0032-BF-2E-0000, 31V-4F0032-BF-2S-0000, 31V-4F0032-BN-0E-0000, 31V-4F0032-BN-0S-0000, 31V-4F0032-BN-1E-0000, 31V-4F0032-BN-1S-0000, 31V-4F0032-BN-2E-0000, 31V-4F0032-BN-2S-0000, 31V-4F0038-BE-0E-0000, 31V-4F0038-BE-0S-0000, 31V-4F0038-BE-1E-0000, 31V-4F0038-BE-1S-0000, 31V-4F0038-BE-2E-0000, 31V-4F0038-BE-2S-0000, 31V-4F0038-BF-0E-0000, 31V-4F0038-BF-0S-0000, 31V-4F0038-BF-1E-0000, 31V-4F0038-BF-1S-0000, 31V-4F0038-BF-2E-0000, 31V-4F0038-BF-2S-0000, 31V-4F0038-BN-0E-0000, 31V-4F0038-BN-0S-0000, 31V-4F0038-BN-1E-0000, 31V-4F0038-BN-1S-0000, 31V-4F0038-BN-2E-0000, 31V-4F0038-BN-2S-0000, 31V-4G0045-BE-0E-0000, 31V-4G0045-BE-0S-0000, 31V-4G0045-BE-1E-0000, 31V-4G0045-BE-1S-0000, 31V-4G0045-BE-2E-0000, 31V-4G0045-BE-2S-0000, 31V-4G0045-BF-0E-0000, 31V-4G0045-BF-0S-0000, 31V-4G0045-BF-1E-0000, 31V-4G0045-BF-1S-0000, 31V-4G0045-BF-2E-0000, 31V-4G0045-BF-2S-0000, 31V-4G0045-BN-0E-0000, 31V-4G0045-BN-0S-0000, 31V-4G0045-BN-1E-0000, 31V-4G0045-BN-1S-0000, 31V-4G0045-BN-2E-0000, 31V-4G0045-BN-2S-0000, 31V-4G0060-BE-0E-0000, 31V-4G0060-BE-0S-0000, 31V-4G0060-BE-1E-0000, 31V-4G0060-BE-1S-0000, 31V-4G0060-BE-2E-0000, 31V-4G0060-BE-2S-0000, 31V-4G0060-BF-0E-0000, 31V-4G0060-BF-0S-0000, 31V-4G0060-BF-1E-0000, 31V-4G0060-BF-1S-0000, 31V-4G0060-BF-2E-0000, 31V-4G0060-BF-2S-0000, 31V-4G0060-BN-0E-0000, 31V-4G0060-BN-0S-0000, 31V-4G0060-BN-1E-0000, 31V-4G0060-BN-1S-0000, 31V-4G0060-BN-2E-0000, 31V-4G0060-BN-2S-0000, 31V-4G0073-BE-0E-0000, 31V-4G0073-BE-0S-0000, 31V-4G0073-BE-1E-0000, 31V-4G0073-BE-1S-0000, 31V-4G0073-BE-2E-0000, 31V-4G0073-BE-2S-0000, 31V-4G0073-BF-0E-0000, 31V-4G0073-BF-0S-0000, 31V-4G0073-BF-1E-0000, 31V-4G0073-BF-1S-0000, 31V-4G0073-BF-2E-0000, 31V-4G0073-BF-2S-0000, 31V-4G0073-BN-0E-0000, 31V-4G0073-BN-0S-0000, 31V-4G0073-BN-1E-0000, 31V-4G0073-BN-1S-0000, 31V-4G0073-BN-2E-0000, 31V-4G0073-BN-2S-0000, 31V-4H0087-BE-0E-0000, 31V-4H0087-BE-0S-0000, 31V-4H0087-BE-1E-0000, 31V-4H0087-BE-1S-0000, 31V-4H0087-BE-2E-0000, 31V-4H0087-BE-2S-0000, 31V-4H0087-BN-0E-0000, 31V-4H0087-BN-0S-0000, 31V-4H0087-BN-1E-0000, 31V-4H0087-BN-1S-0000, 31V-4H0087-BN-2E-0000, 31V-4H0087-BN-2S-0000, 31V-4H0087-NE-0E-0000, 31V-4H0087-NE-0S-0000, 31V-4H0087-NE-1E-0000, 31V-4H0087-NE-1S-0000, 31V-4H0087-NE-2E-0000, 31V-4H0087-NE-2S-0000, 31V-4H0087-NN-0E-0000, 31V-4H0087-NN-0S-0000, 31V-4H0087-NN-1E-0000, 31V-4H0087-NN-1S-0000, 31V-4H0087-NN-2E-0000, 31V-4H0087-NN-2S-0000, 31V-4H0105-BE-0E-0000, 31V-4H0105-BE-0S-0000, 31V-4H0105-BE-1E-0000, 31V-4H0105-BE-1S-0000, 31V-4H0105-BE-2E-0000, 31V-4H0105-BE-2S-0000, 31V-4H0105-BN-0E-0000, 31V-4H0105-BN-0S-0000, 31V-4H0105-BN-1E-0000, 31V-4H0105-BN-1S-0000, 31V-4H0105-BN-2E-0000, 31V-4H0105-BN-2S-0000, 31V-4H0105-NE-0E-0000, 31V-4H0105-NE-0S-0000, 31V-4H0105-NE-1E-0000, 31V-4H0105-NE-1S-0000, 31V-4H0105-NE-2E-0000, 31V-4H0105-NE-2S-0000, 31V-4H0105-NN-0E-0000, 31V-4H0105-NN-0S-0000, 31V-4H0105-NN-1E-0000, 31V-4H0105-NN-1S-0000, 31V-4H0105-NN-2E-0000, 31V-4H0105-NN-2S-0000, 31V-4H0145-BE-0E-0000, 31V-4H0145-BE-0S-0000, 31V-4H0145-BE-1E-0000, 31V-4H0145-BE-1S-0000, 31V-4H0145-BE-2E-0000, 31V-4H0145-BE-2S-0000, 31V-4H0145-BN-0E-0000, 31V-4H0145-BN-0S-0000, 31V-4H0145-BN-1E-0000, 31V-4H0145-BN-1S-0000, 31V-4H0145-BN-2E-0000, 31V-4H0145-BN-2S-0000, 31V-4H0145-NE-0E-0000, 31V-4H0145-NE-0S-0000, 31V-4H0145-NE-1E-0000, 31V-4H0145-NE-1S-0000, 31V-4H0145-NE-2E-0000, 31V-4H0145-NE-2S-0000, 31V-4H0145-NN-0E-0000, 31V-4H0145-NN-0S-0000, 31V-4H0145-NN-1E-0000, 31V-4H0145-NN-1S-0000, 31V-4H0145-NN-2E-0000, 31V-4H0145-NN-2S-0000, 31V-4J0180-BE-0E-0000, 31V-4J0180-BE-0S-0000, 31V-4J0180-BE-1E-0000, 31V-4J0180-BE-1S-0000, 31V-4J0180-BE-2E-0000, 31V-4J0180-BE-2S-0000,
31V-4J0180-BN-0E-0000, 31V-4J0180-BN-0S-0000, 31V-4J0180-BN-1E-0000, 31V-4J0180-BN-1S-0000, 31V-4J0180-BN-2E-0000, 31V-4J0180-BN-2S-0000, 31V-4J0205-BE-0E-0000, 31V-4J0205-BE-0S-0000, 31V-4J0205-BE-1E-0000, 31V-4J0205-BE-1S-0000, 31V-4J0205-BE-2E-0000, 31V-4J0205-BE-2S-0000,
31V-4J0205-BN-0E-0000, 31V-4J0205-BN-0S-0000, 31V-4J0205-BN-1E-0000, 31V-4J0205-BN-1S-0000, 31V-4J0205-BN-2E-0000, 31V-4J0205-BN-2S-0000, 31V-4J0260-BE-0E-0000, 31V-4J0260-BE-0S-0000, 31V-4J0260-BE-1E-0000, 31V-4J0260-BE-1S-0000, 31V-4J0260-BE-2E-0000, 31V-4J0260-BE-2S-0000,
31V-4J0260-BN-0E-0000, 31V-4J0260-BN-0S-0000, 31V-4J0260-BN-1E-0000, 31V-4J0260-BN-1S-0000, 31V-4J0260-BN-2E-0000, 31V-4J0260-BN-2S-0000, 31V-K0315-BE-0E-0000, 31V-K0315-BE-0S-0000,
31V-K0315-BE-1E-0000, 31V-K0315-BE-1S-0000, 31V-K0315-BE-2E-0000, 31V-K0315-BE-2S-0000,
31V-K0315-BN-0E-0000, 31V-K0315-BN-0S-0000, 31V-K0315-BN-1E-0000, 31V-K0315-BN-1S-0000,
31V-K0315-BN-2E-0000, 31V-K0315-BN-2S-0000, 31V-K0380-BE-0E-0000, 31V-K0380-BE-0S-0000,
31V-K0380-BE-1E-0000, 31V-K0380-BE-1S-0000, 31V-K0380-BE-2E-0000, 31V-K0380-BE-2S-0000,
31V-K0380-BN-0E-0000, 31V-K0380-BN-0S-0000, 31V-K0380-BN-1E-0000, 31V-K0380-BN-1S-0000,
31V-K0380-BN-2E-0000, 31V-K0380-BN-2S-0000, 31V-K0440-BE-0E-0000, 31V-K0440-BE-0S-0000,
31V-K0440-BE-1E-0000, 31V-K0440-BE-1S-0000, 31V-K0440-BE-2E-0000, 31V-K0440-BE-2S-0000,
31V-K0440-BN-0E-0000, 31V-K0440-BN-0S-0000, 31V-K0440-BN-1E-0000, 31V-K0440-BN-1S-0000,
31V-K0440-BN-2E-0000, 31V-K0440-BN-2S-0000

Downloads:

parker AC30V Brochure.pdf
Video - Overview
parker AC30_CAD.zip

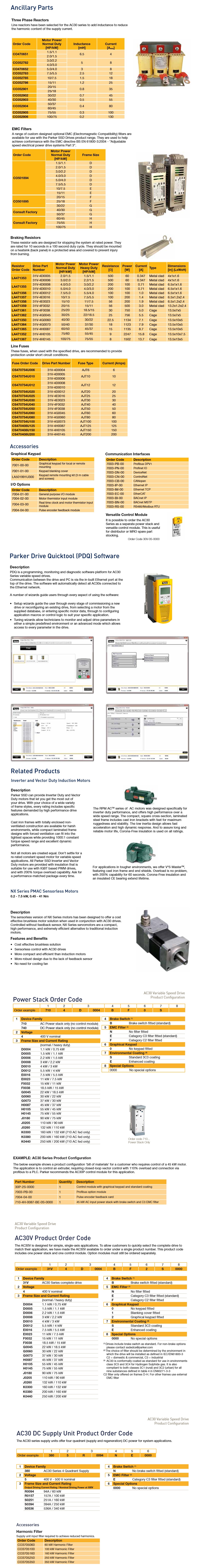

parker AC30V_Catalog.pdf
