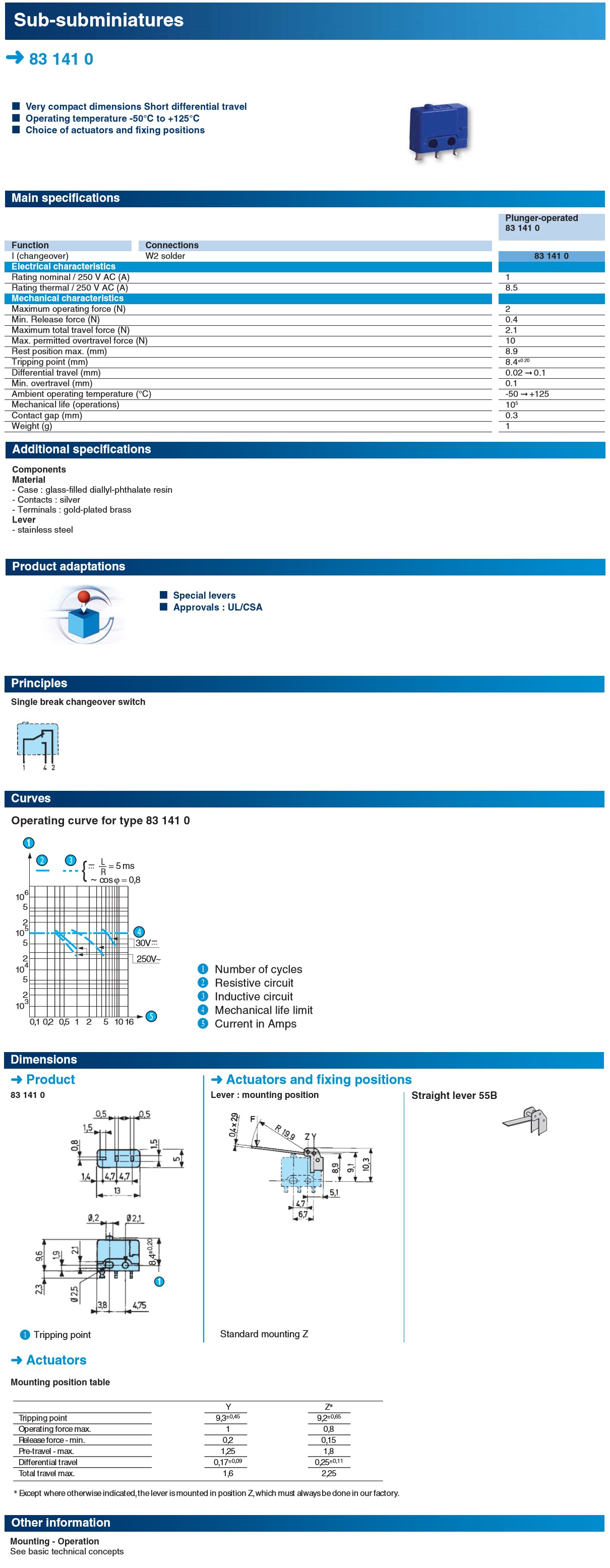

Description Specifications and Drawings


Crouzet: Sub-Subminiature Microswitches (83141 Series)

With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.

Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.

Sub-Subminiature MicroswitchesHigh Accuracy

  • Compact dimensions

  • Short differential travel

  • Choice of actuators and fixing positions

Components

Material:

  • Case: glass-filled diallyl-phthalate resin

  • Contacts: silver

  • Terminals: gold-plated brass

Lever:

  • Stainless steel

Specifications

  • Approx body size (mm): 13x10x5

  • Rating (max): 5A / 250Vac

  • Degree of protection: IP40

  • Operating temperature: -55°C / +150°C

  • Operating force (max): 2 N

  • Differential travel (max): 0.06 mm

  • Overtravel (min): 0.1 mm

  • Mechanical life (cycles): 2 M
