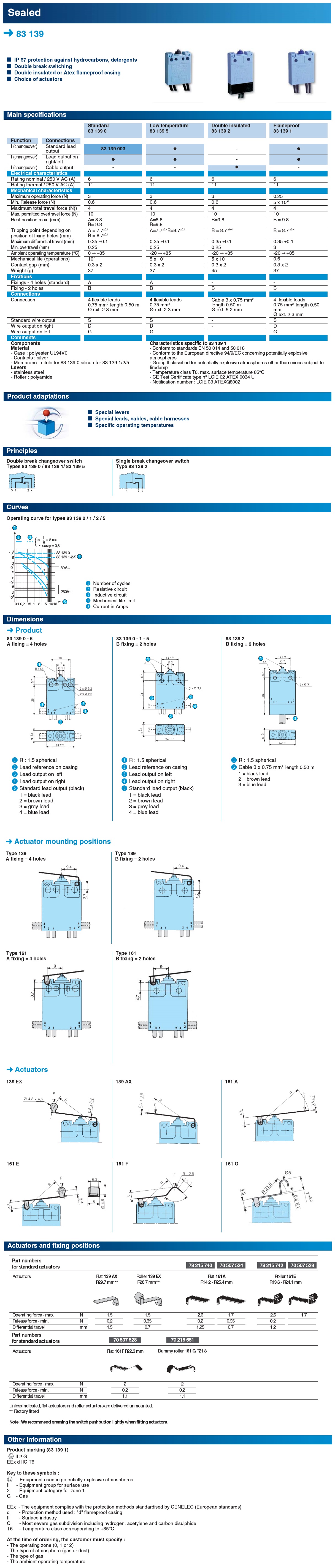

Description Specifications and Drawings


Crouzet: Miniature Microswitches (83139 Series)

With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.

Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.

Miniature Microswitches Sealed Double Break ATEX Class II

  • IP67 protection against hydrocarbons, detergents

  • Double break switching

  • Double insulated or Atex flameproof casing

  • Choice of actuators

Specifications

  • Approx body size (mm): 24x31x9

  • Rating (max): 6A / 250Vac

  • Degree of protection: IP66/IP67

  • Operating temperature: -40°C/+105°C

  • Operating force (max): 3 N

  • Differential travel (max): 0.45 mm

  • Overtravel (min): 0.25 mm

  • Mechanical life (cycles): 10 M
