FAULHABER: Encoders (40B Series)
FAULHABER: Encoders (40B Series)



Call for Pricing

Price Quote Form


Order #: 40B
.

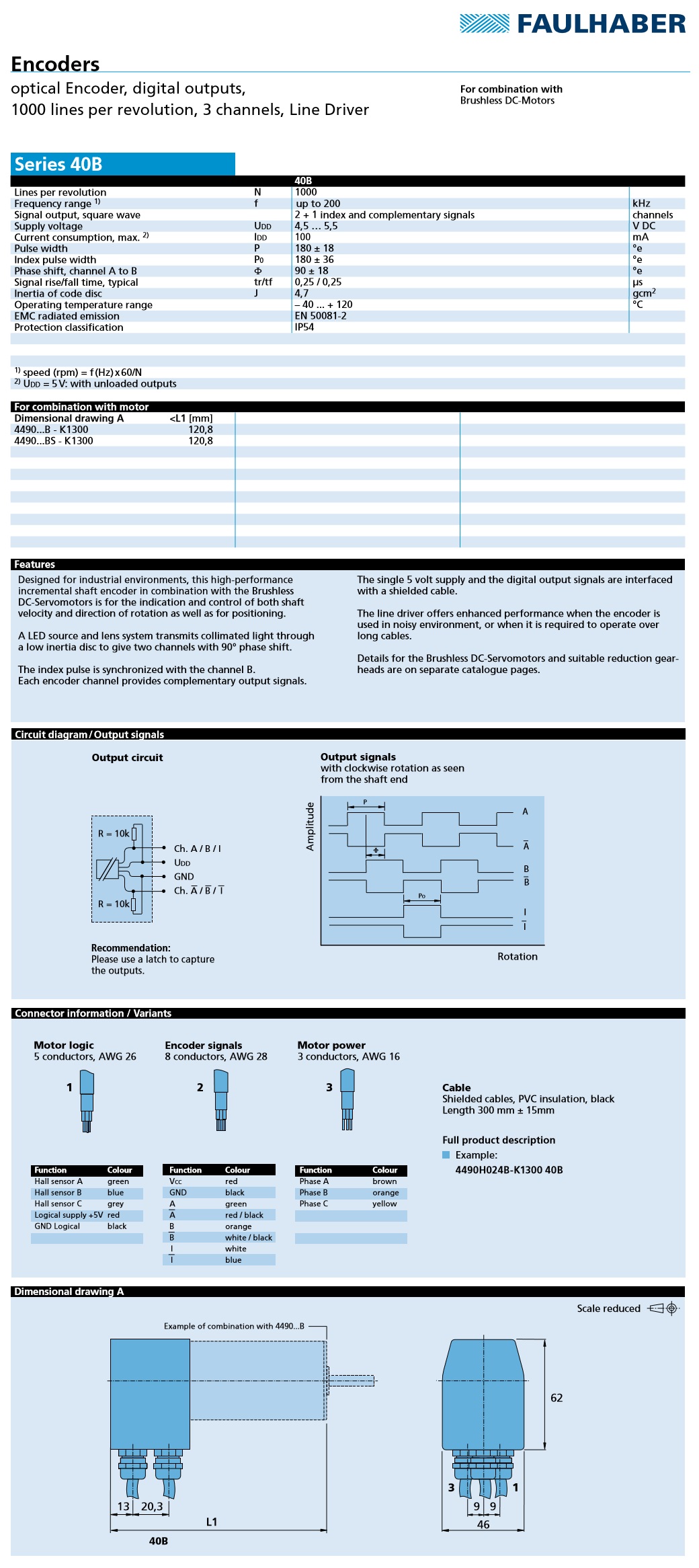

Description Specifications and Drawings

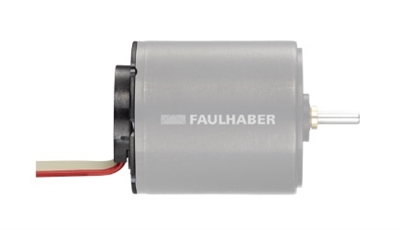

FAULHABER: Encoders (40B Series)

Incremental encoders - Three channels

The encoders of the Series IE3 are available as attachable kits or preassembled to FAULHABER DC-Motors CR and CXR Series, or as integrated assemblies for FAULHABER Brushless DC-Servomotors Series BX4.

Features and Benefits:

  • Compact modular system

  • A wide range of resolutions are available

  • Index channel

  • Line Drivers are available

Specifications:

  • Dimension (mm): 46 x 62 x 44.3

  • Technology: Optical

  • Pulse per Revolution: 1,000

  • Signal Output: Digital with Line Driver
