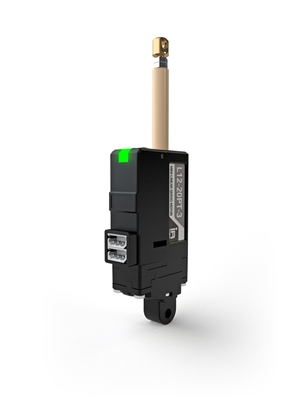

LUGE:Micro Automation Electrical Cylinder,L12-40PT-3
LUGE:Micro Automation Electrical Cylinder,L12-40PT-3



Alternate View


LUGE:Micro Automation Electrical Cylinder,L12-40PT-3
Coreless,12v,speed version,PWM/TTL,30mm stroke
Price : $635.00


Order #: 212-04013
Qty:

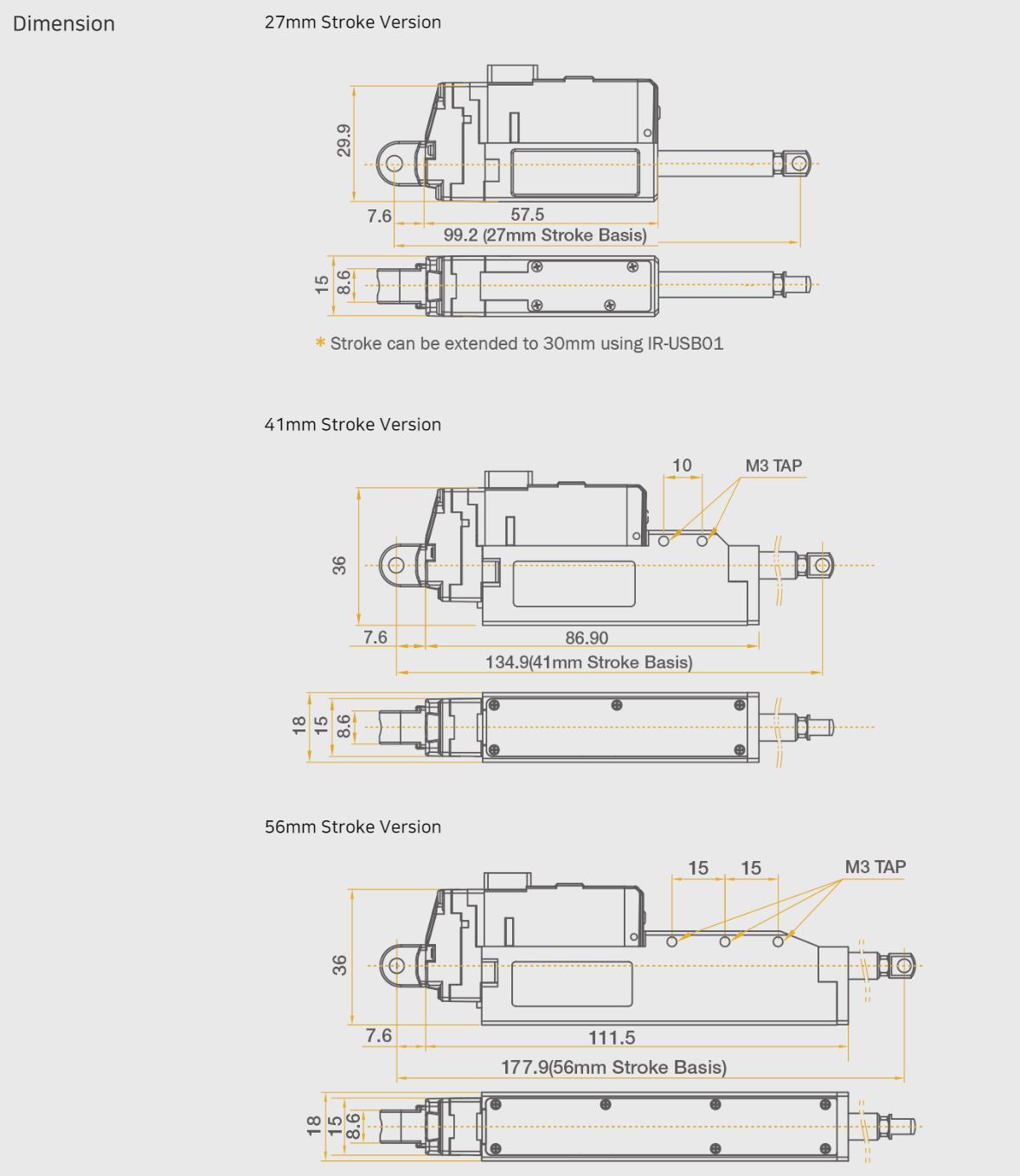

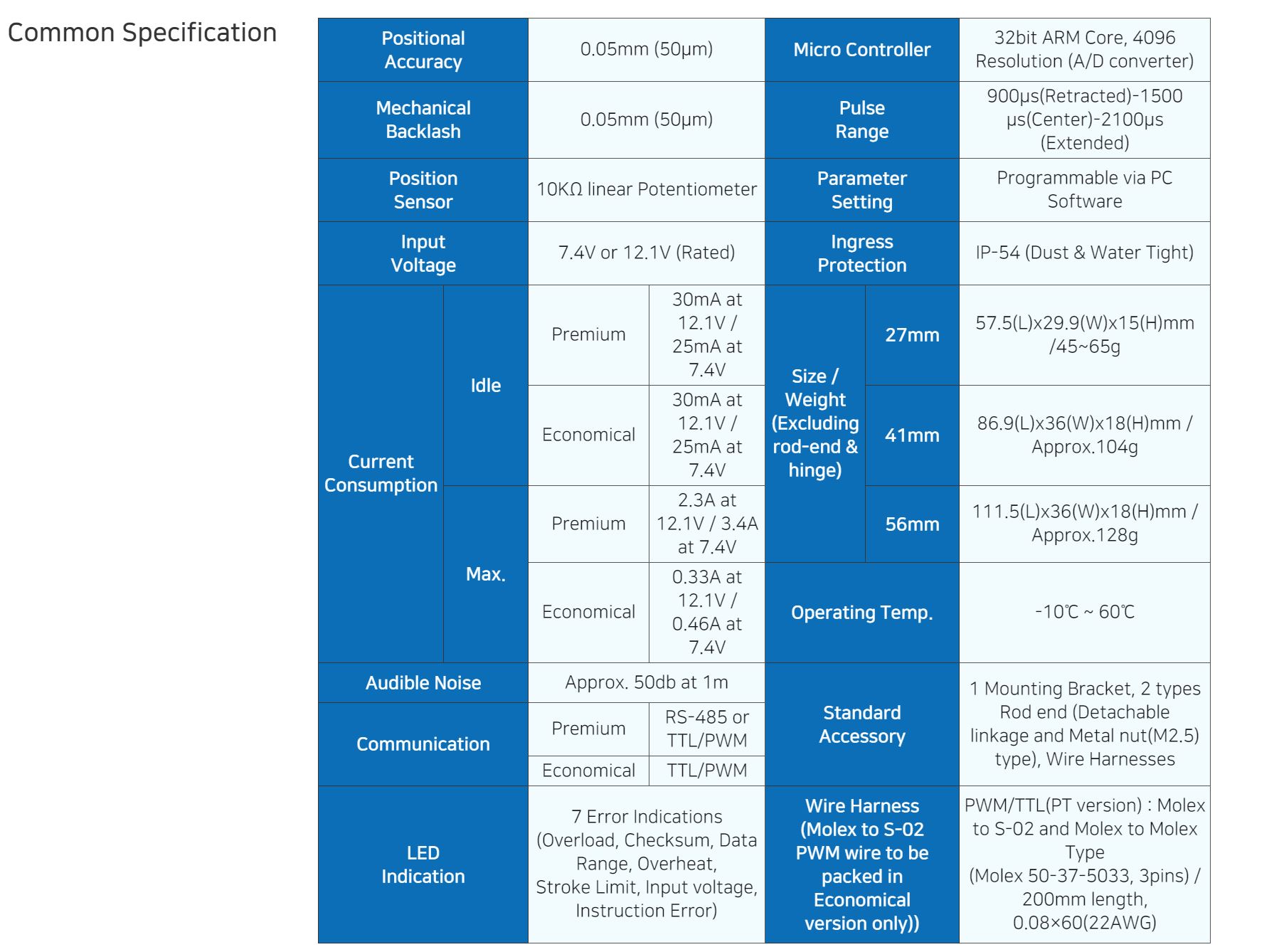

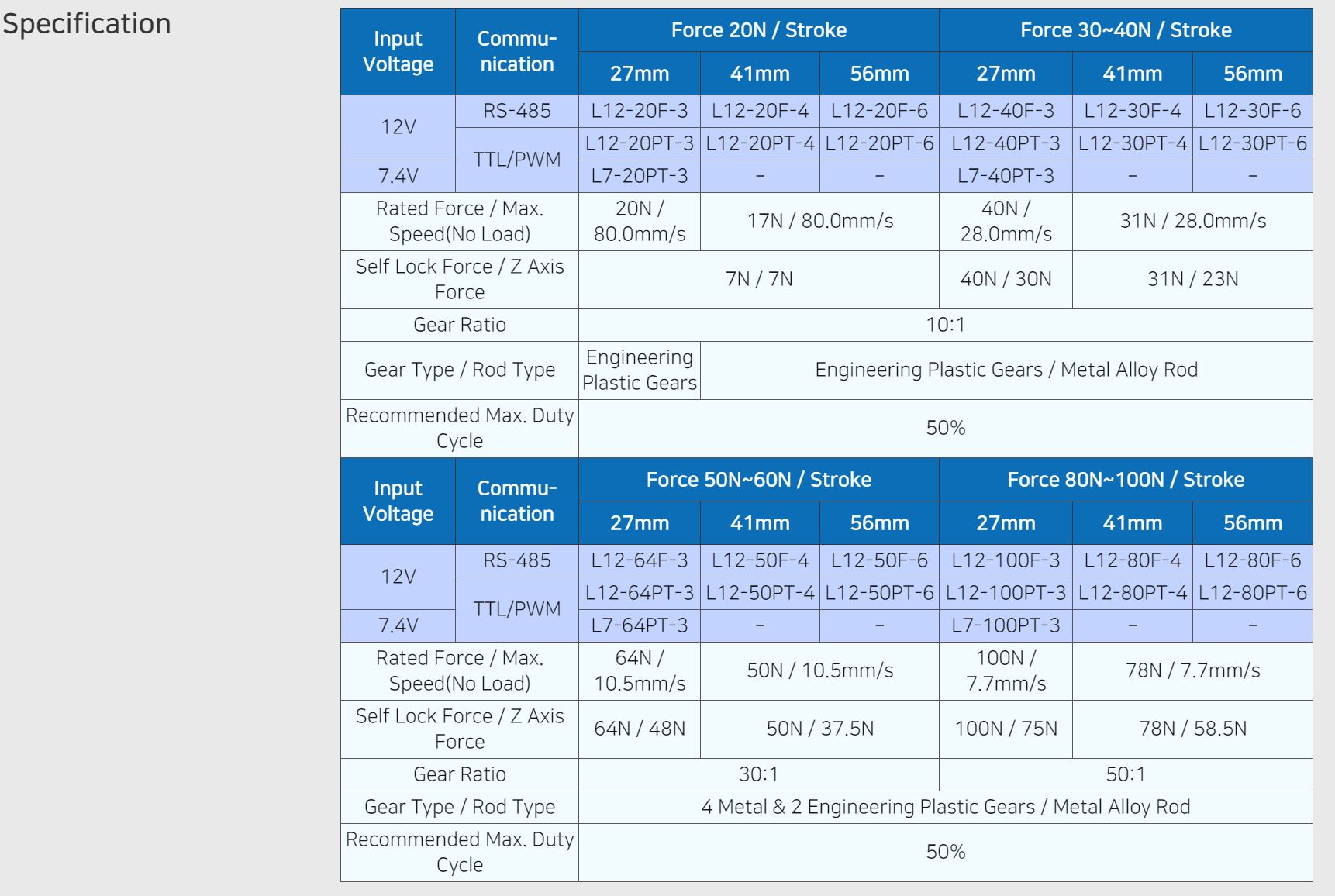

Description Specifications and Drawings

Overview
Micro Automation Electrical Cylinder, Luge has been designed for precise linear position control in small space.
The key feature of Luge is a miniature which integrates motor, gear box, drive,controller and other linear mechanical parts in single small case. We realized miniature with durable lifespan, robust force (max. 100N) comparing to its size, and reliable repeatability (within 50μm). Force & speed are varied according to gear ratio for a model and that is, the stronger force, the slower speed.
Premium series Luge is for industrial applications such as factory automation, medical equipment or UAV industry. Due to high performance coreless DC motor, premium series boasts stronger force and longer lifespan than economical series.
Control Luge along with various API/library such as C++, C#, JAVA and Python.

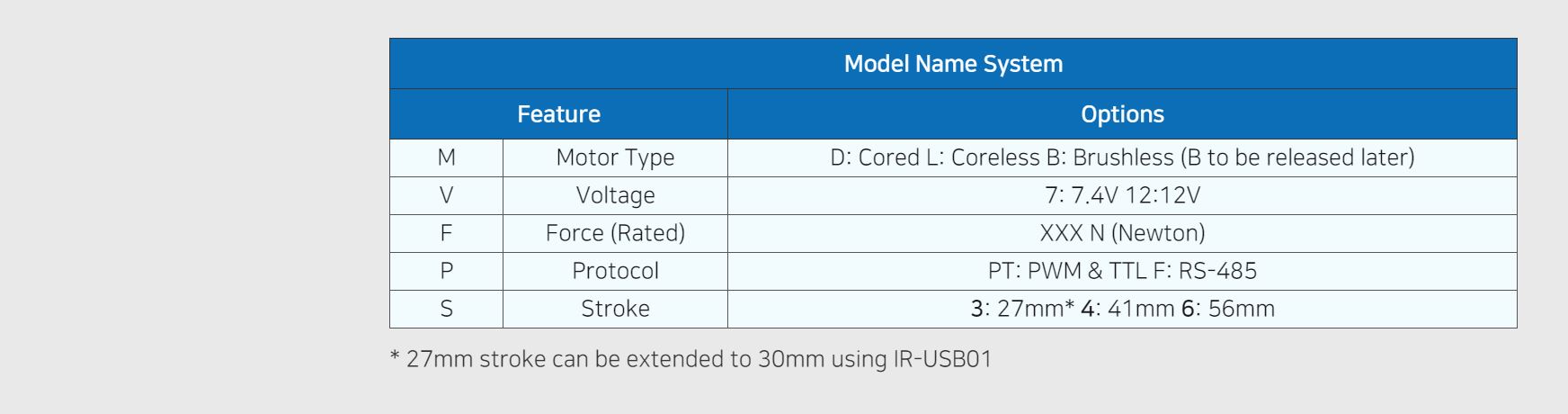

Premium series Data
High force, highly durable coreless motor applied

• Stroke option – 27mm*, 41mm and 56mm

• Force option - 17~100N

• 7.4V or 12V input voltage option

• RS-485 or TTL/PWM protocol option

• Self lubricative polymer rod (for 20N 27mm version)

• Metal alloy rod (for All lineup except for 20N 27mm version)

Precision

  • 50µm positional accuracy
  • Absolute position sensing via Potentiometer (No need Calibration)
  • Position feedback
  • 32Bit Micro controller, High resolution (4096) A/D converter

Longlife

  • High force/highly durable coreless motor applied(For Premium Lineup)
  • Overload protection (Overridable)
  • MTBF Data – Lifecycle Guideline

Easy

  • Compact size for space constraint
  • Hassle-free Built-in drive circuitry
  • Daisy chain serial connection between servos
  • Self-Lock feature thanks to mechanical design
  • Various mounting solutions
  • Applicable to the Gravity direction (Z axis) (Refer to user manual)
  • Various API/Examples of programming languages(C# / C++ / Python / Java / Raspberry Pi / Arduino ETC)
  • Dedicated PC Software (Parameter setting & Control test) and
  • PC USB Interface (IR-USB01) available (Optional)

Flexible

  • Wide product range from economical lineup(w/ cored motor) to premium lineup(w/ coreless motor).
  • Various force/speed combination from 17N to 100N
  • PWM/TTL(3pin) or PWM/RS-485(4pin) protocol (PWM/TTL signal automatically recognized,
  • PLC and PC control using RS-485 comm.)
  • 7.4V or 12V input voltage

Applications

  • Factory Automation (PLC/PC/Micom control compatible through RS-485)
  • Various production & inspection jigs
  • Medical equipments
  • Robotics
  • UAVs / Drones
  • DIY, Education and Hobby (w/ Arduino, Raspberry Pi and Lego)
